High Frequency Welded Pipe Mill
>
High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers
High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers
  • High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers
  • High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers

High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers

Product Details:
Place of Origin: CHINA
Brand Name: HEBEI TENGTIAN
Certification: CE,ISO9000
Model Number: 200x200
Detail Information
Place of Origin:
CHINA
Brand Name:
HEBEI TENGTIAN
Certification:
CE,ISO9000
Model Number:
200x200
Product Name:
High Frequency Welded Pipe Mill Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill
Product Speedl:
20-80m/min
Product Size:
100x100- 200x200
Feature:
Quick Change Rollers
Color:
Customized
Welding Type:
High Frequency Welder
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

80m/min high frequency welded pipe mill

,

200x200 high frequency welded pipe mill

,

motor adjust tube mill equipment

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
100 working days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 sets/month
Product Description
High Frequency Welded Pipe Mill Motor Adjust Steel 200x200
Product Specifications
Attribute Value
Product Speed 20-80m/min
Product Size Range 100x100 - 200x200
Key Feature Quick change rollers
Color Options Customized
Welding Type High frequency welder
Tube Mill Description
This quick change tube mill produces round, square, rectangular, and LTZ profile pipes. Featuring a quick-change roller design with two machine beds (one operational, one prepared), it enables rapid size changes to maximize production efficiency.
Technical Parameters
Steel Material Q235, Q345 Low carbon steel
Mechanical Properties σb≤610Mpa, σs≤345MPa
Steel Width 400-800mm
Round Pipe Size 127-254mm
Pipe Thickness 6.0-12.0mm
Square Tube Size 100x100-200x200mm
Forming Speed 20-80m/min
Pipe Length 6-12 meter
Total Power Approx 1200kw
Factory Requirements Length 100m, width 6m (custom layouts available)
Production Process
Coil loading → Uncoiler → Shear & welder → Horizontal accumulator → Forming → HF welder → Scraper → Cooling → Sizing → Turkey head → Cutting saw → Packing → Storage
Roller Specifications
Material Cr12 or SKD11
Treatment Hardness HRC 58-62
Included Technical Documentation
  • Instruction Manual
  • Packing List
  • Layout Drawing
  • Foundation Drawing
  • Electrical Diagram
  • Vulnerable Parts Drawing
Warranty & Service
Our technical service personnel will provide on-site guidance for operation, debugging, and maintenance after machine installation, including comprehensive training for your equipment operators and maintenance team. The complete production line comes with a one-year warranty.

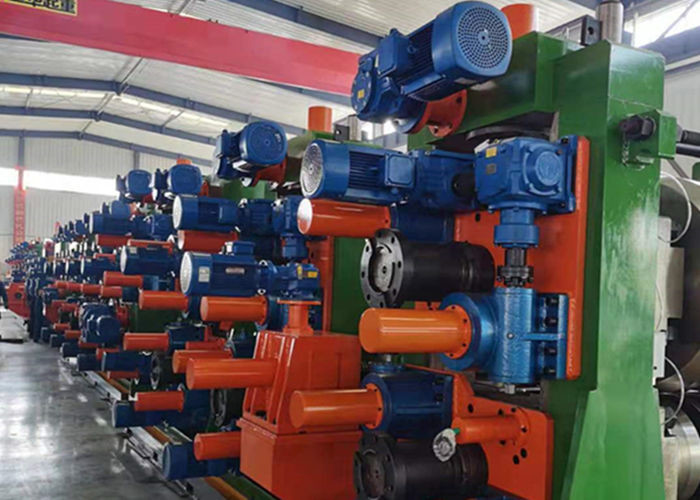

High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers 0 High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers 1 High Frequency Welded Pipe Mill 200x200 with Quick Change Rollers 2
