Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill

Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill
Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill

Large Image :  Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill

Product Details:
Place of Origin: CHINA
Brand Name: HEBEI TENGTIAN
Certification: CE,ISO9000
Model Number: 200x200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 100 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Detailed Product Description
Product Name: High Frequency Welded Pipe Mill Product Speedl: 20-80m/min
Product Size: 100x100- 200x200 Feature: Quick Change Rollers
Color: Customized Welding Type: High Frequency Welder
High Light:

80m/min high frequency welded pipe mill

,

200x200 high frequency welded pipe mill

,

motor adjust tube mill equipment

Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill



1.Tube Mill Description



Quick change tube mill is used to product round pipe,square pipe,rectangular pipe and LTZ other profile pipe,this type machine with quick change roller design,the forming and sizing part with two machine bed,one bed online,another bed prepared,when product different size pipe can change roller quickly.in order to save time.



2. Main parameters



steel material Q235,Q345 Low carbon steel
Mechanical properties σb≤610Mpa,σs≤345MPa
steel width 400-800mm
round pipe size 127-254mm
pipe thickness 6.0-12.0mm
square tube size 100x100-200x200mm
forming speed 20-80m/min
pipe length 6-12meter
total power approx 1200kw
factory require long 100meter,width 6meter(can design layout according to customer factory)



3.Production Process



coil loading→Uncoiler→shear&welder→horizontal accumulator→Forming,HF welder,scraper,cooling,sizing,turkey head→cutting saw→packing→storage



4. Roller

material Cr12 or SKD11
treatment hardness HRC 58-62



5.Technical Document Provided

  • Instruction Manual
  • packing list
  • layout drawing
  • foundation drawing
  • electrical diagram
  • vulnerable parts drawing



6. After sales service and warranty



After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year

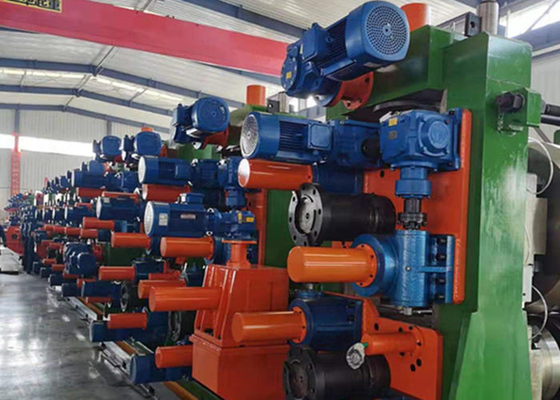

Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill 0

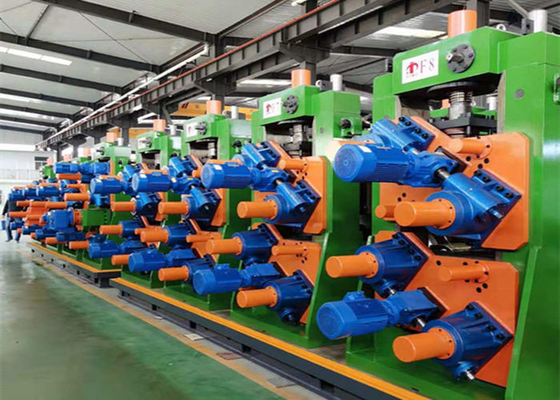

Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill 1

Motor Adjust Steel 200x200 High Frequency Welded Pipe Mill 2
