High Frequency Welded Pipe Mill
>

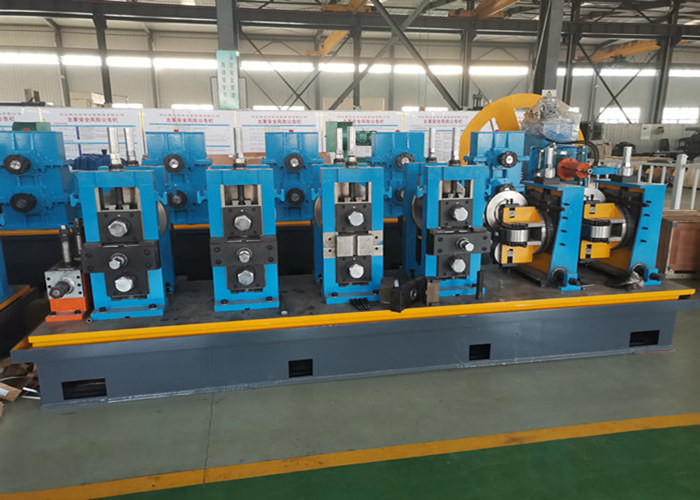

High Frequency Welded Pipe Mill for Galvanized Steel Square Tube
High Frequency Welded Pipe Mill for Galvanized Steel Square Tube
  • High Frequency Welded Pipe Mill for Galvanized Steel Square Tube
  • High Frequency Welded Pipe Mill for Galvanized Steel Square Tube
  • High Frequency Welded Pipe Mill for Galvanized Steel Square Tube

High Frequency Welded Pipe Mill for Galvanized Steel Square Tube

Product Details:
Place of Origin: CHINA
Brand Name: HEBEI TENGTIAN
Certification: CE,ISO9000
Model Number: 70x70
Detail Information
Place of Origin:
CHINA
Brand Name:
HEBEI TENGTIAN
Certification:
CE,ISO9000
Model Number:
70x70
Product Name:
High Frequency Welded Pipe Mill Directly Forming Galvanized Steel Square Tube
Pipe Material:
HRC,CRC,G.I Steel
Product Speedl:
20-100m/min
Product Size:
20x20- 70x70
Feature:
Quick Change Rollers
Color:
Customized
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

quick change tube mill machine

,

directly forming tube mill machine

,

quick change erw tube mill machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
60 working days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 sets/month
Product Description
High Frequency Welded Pipe Mill Directly Forming Galvanized Steel Square Tube
Attribute Value
Product Name High Frequency Welded Pipe Mill Directly Forming Galvanized Steel Square Tube
Pipe Material HRC, CRC, G.I steel
Product Speed 20-100m/min
Product Size 20x20 - 70x70
Feature Quick change rollers
Color Customized
Tube Mill Description

Quick change tube mill is used to produce round pipe, square pipe, rectangular pipe and LTZ other profile pipes. This machine features quick change roller design with forming and sizing parts on two machine beds - one online and another prepared - enabling rapid roller changes when producing different size pipes to save time.

Main Parameters
  • Steel material: Q235, Q345 Low carbon steel
  • Mechanical properties: σb≤610Mpa, σs≤345MPa
  • Steel width: 40-280mm
  • Pipe thickness: 1.0-4.0mm
  • Square tube size: 20x20-70x70mm
  • Pipe length: 6-12 meter
  • Factory requirements: length 100m, width 6m (can design layout according to customer factory)
Production Process
coil loading → Uncoiler → shear & welder → horizontal accumulator → Forming, HF welder, scraper, cooling, sizing, turkey head → cutting saw → packing → storage
Roller Specifications
Material Cr12 or SKD11
Treatment Hardness HRC 58-62
Technical Documentation Provided
  • Instruction Manual
  • Packing list
  • Layout drawing
  • Foundation drawing
  • Electrical diagram
  • Vulnerable parts drawing
After Sales Service and Warranty

After machine delivery, our technical service personnel will provide on-site guidance for operation, debugging and maintenance, including technical training for your equipment operators and maintenance staff. The complete production line comes with a one-year warranty.

High Frequency Welded Pipe Mill for Galvanized Steel Square Tube 0 High Frequency Welded Pipe Mill for Galvanized Steel Square Tube 1 High Frequency Welded Pipe Mill for Galvanized Steel Square Tube 2
