High Frequency Welded Pipe Mill
>

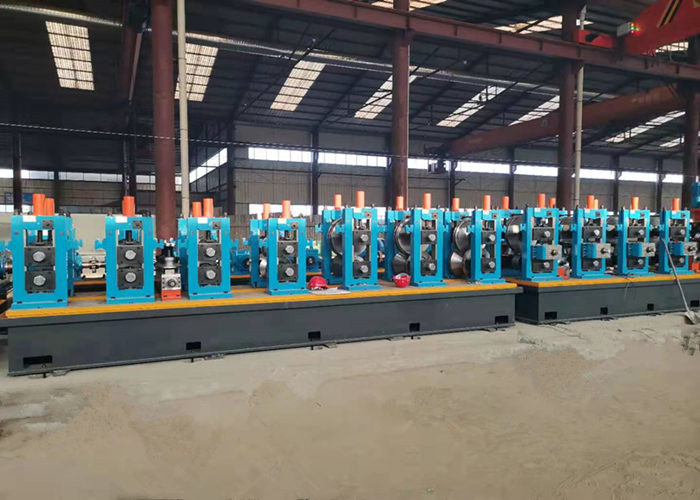

165mm Carbon Steel High Frequency Welded Pipe Mill
165mm Carbon Steel High Frequency Welded Pipe Mill
  • 165mm Carbon Steel High Frequency Welded Pipe Mill
  • 165mm Carbon Steel High Frequency Welded Pipe Mill
  • 165mm Carbon Steel High Frequency Welded Pipe Mill

165mm Carbon Steel High Frequency Welded Pipe Mill

Product Details:
Place of Origin: CHINA
Brand Name: HEBEI TENGTIAN
Certification: CE,ISO9000
Model Number: HG165
Detail Information
Place of Origin:
CHINA
Brand Name:
HEBEI TENGTIAN
Certification:
CE,ISO9000
Model Number:
HG165
Product Name:
High Frequency Welded Pipe Mill 165mm Carbon Steel Round Pipe
Pipe Material:
HRC,CRC
Product Speedl:
20-80m/min
Product Size:
76- 165mm
Pipe Shape:
Square,rectangular,LTZ
Color:
Customized
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

120x120mm high frequency welded pipe mill

,

quick high frequency welded pipe mill

,

120x120mm high frequency welded tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
90 working days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 sets/month
Product Description
High Frequency Welded Pipe Mill 165mm Carbon Steel Round Pipe
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill 165mm Carbon Steel Round Pipe
Pipe Material HRC, CRC
Production Speed 20-80m/min
Product Size 76-165mm
Pipe Shape Square, Rectangular, LTZ
Color Customized
Tube Mill Description

This quick change tube mill produces round, square, rectangular, and LTZ profile pipes. Featuring a rapid roller change design with two machine beds (one operational, one prepared), it enables fast size changes to minimize downtime. The system can also produce open cold bend steel sections (U, C profiles) with infinitely adjustable width and height.

Technical Parameters
Parameter Specification
Steel Material Q235, Q345 Low Carbon Steel
Mechanical Properties σb≤610Mpa, σs≤345MPa
Steel Width 120-480mm
Pipe Thickness 1.0-4.0mm
Square Tube Size 40x40-120x120mm
Pipe Length 6-12 meters
Factory Requirements 100m length × 6m width (custom layouts available)
Production Process

Coil loading → Uncoiler → Shear & Welder → Horizontal Accumulator → Forming → HF Welder → Scraper → Cooling → Sizing → Turkey Head → Cutting Saw → Packing → Storage

Roller Specifications
Material Cr12 or SKD11
Treatment Hardness HRC 58-62
Included Documentation
  • Instruction Manual
  • Packing List
  • Layout Drawing
  • Foundation Drawing
  • Electrical Diagram
  • Vulnerable Parts Drawing
Warranty & Support

Our technical team provides on-site operation guidance, debugging, and maintenance training after machine installation. The complete system comes with a 1-year warranty.

165mm Carbon Steel High Frequency Welded Pipe Mill 0 165mm Carbon Steel High Frequency Welded Pipe Mill 1 165mm Carbon Steel High Frequency Welded Pipe Mill 2
