F200×200 High Frequency Welded Pipe Mill 1-2.3mm Thickness

Name: F200×200 High Frequency Welded Pipe Mill 1-2.3mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HGF 200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HGF 200

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HGF 200

Product Name:

F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

Coil Thickness:

1-2.3 Mm

Coil Width:

45- 120 Mm

Inner Diameter:

80 To 520 Mm

Outer Diameter:

1000 To 1600 Mm

Speed:

Max 120m/min

Warranty:

One Year

Material:

Low Carbon HRC

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

f200×200 high frequency welded pipe mill

precision high frequency welded pipe mill

precision high frequency tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

Product Specifications

Attribute	Value
Coil Thickness	1-2.3 mm
Coil Width	45-120 mm
Inner diameter	80 to 520 mm
Outer diameter	1000 to 1600 mm
Speed	Max 120m/min
Warranty	One year
Material	Low carbon HRC

Product Description

The F200×200 high frequency straight seam precision welded pipe production line is designed for manufacturing electric welded steel pipes with thicknesses suitable for both round and square pipes. This equipment combines innovative domestic design with international standards, offering superior operation convenience and maintenance efficiency while achieving leading domestic quality levels.

Main Parameters and Specifications

Standard	YB189-64
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤610Mpa, σs≤345MPa
Strip width	300～800mm
Strip thickness	2.0～6.0mm
I.D of Coils	Φ580～φ630mm
O.D of Coils	φ1300～φ2000mm
Coil Weight	≤18.0T

Welded Pipe Specifications

Square tube size	75 x 75 to 200x200mm
Square tube thickness	2.0 to 6.0mm
Finish pipe length	6 to 9m
Cut accuracy	± 2mm
Forming speed	10 to 50 m/min

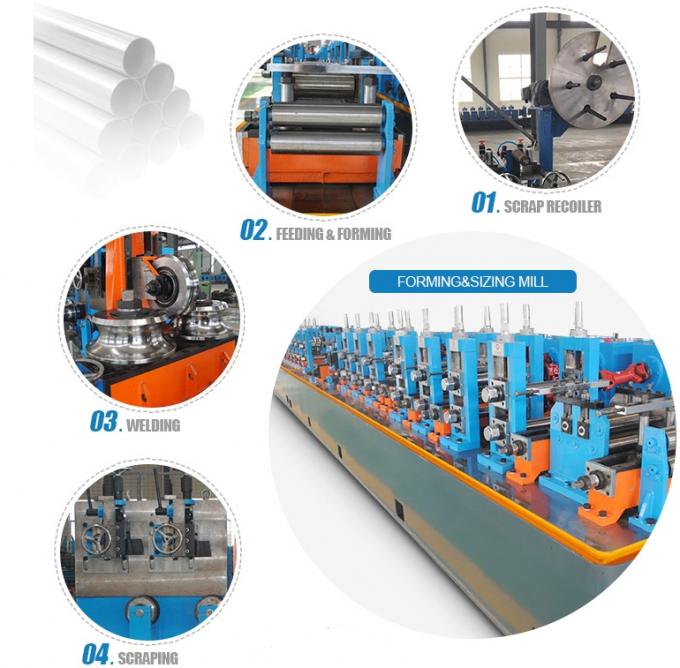

Key Components

Loading Car: Steel welding structure with lifting saddle and transverse car components
Uncoiler: Single cone structure with hydraulic expanding and pneumatic driving system
Straight Head: Guides new coil steel head into the flattener unit
Leveling Machine: Prepares steel strip ends for shearing and welding
Shear & Welder: Cuts irregular strip ends and connects strips by welding
Horizontal Accumulator: Includes press & carry material device with electric control
Forming Machine: Shapes steel strip into round then square pipes with precision welding

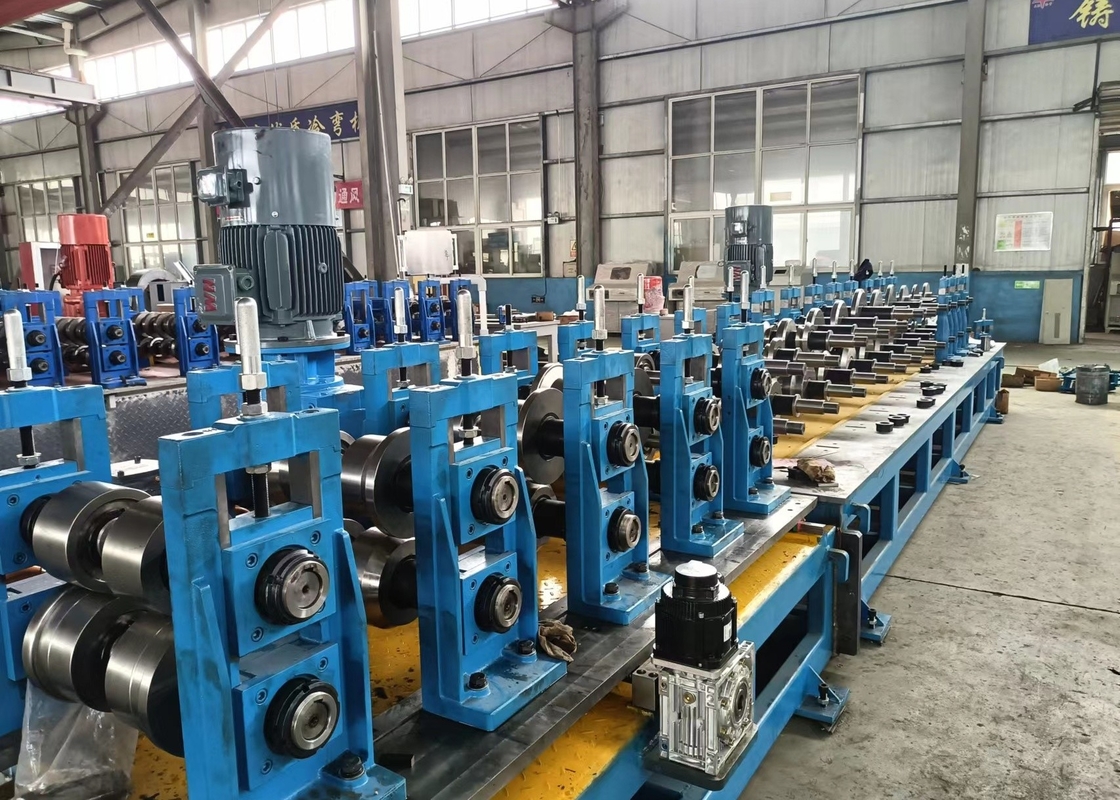

F200×200 High Frequency Welded Pipe Mill in operation
