F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

Certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

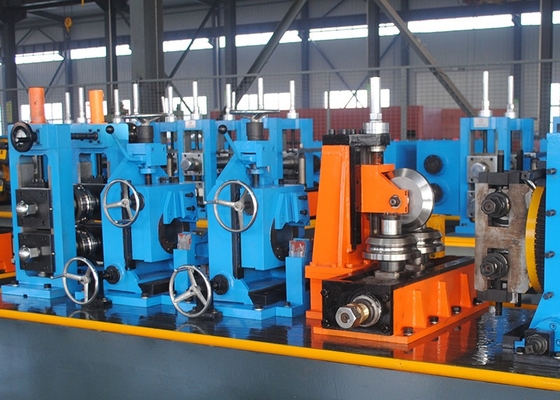

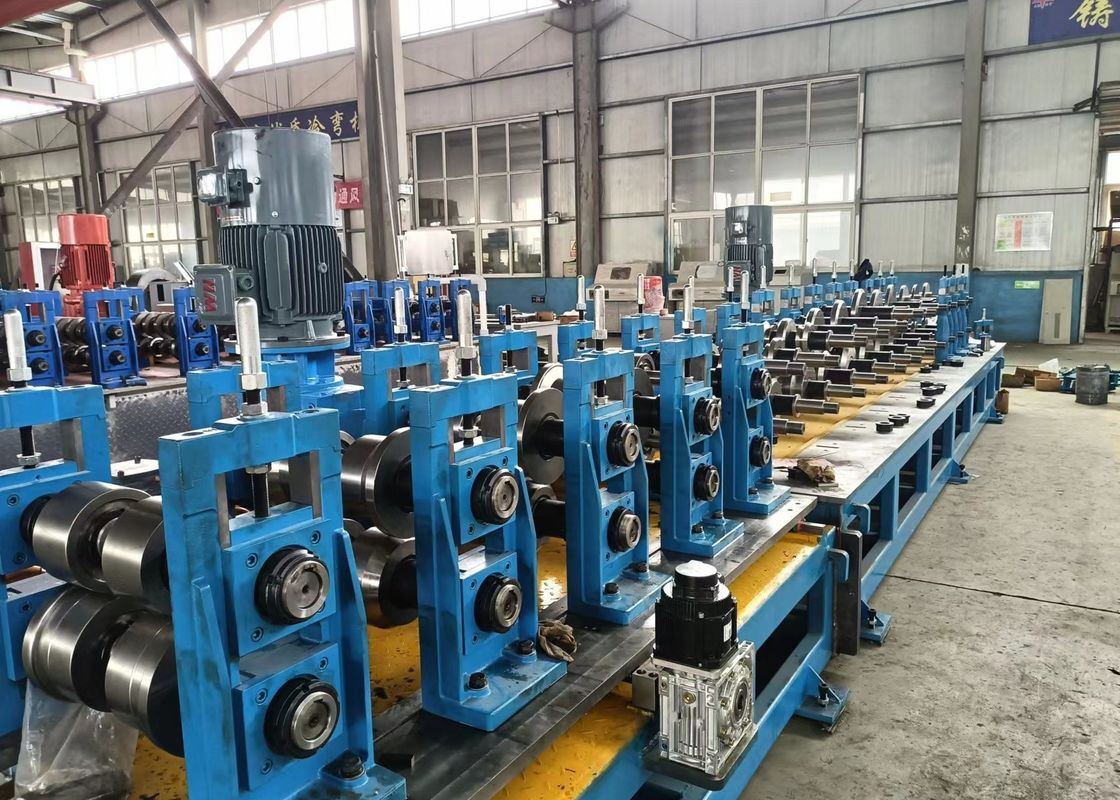

F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

Large Image :  F200×200 High Frequency Welded Pipe Mill Precision Tube Making Equipment

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: HGF 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 60 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Coil Weight: ≤1.5T Coil Thickness: 1-2.3 Mm
Coil Width: 45- 120 Mm Inner Diameter: 80 To 520 Mm
Outer Diameter: 1000 To 1600 Mm Speed: Max 120m/min
Warranty: One Year Material: Low Carbon HRC
High Light:

f200×200 high frequency welded pipe mill

,

precision high frequency welded pipe mill

,

precision high frequency tube mill

F200×200 High Precision Welded Pipe Production Line Welding Tube Machine



The F200×200 high frequency straight seam precision welded pipe production line is mainly used to produce electric welded steel pipes with a thickness of 2 to for round pipes and square pipes. On the basis of digesting and absorbing similar equipment at home and abroad, each single machine of this production line is innovatively designed in combination with my country's national conditions. The operation and maintenance are convenient, the design level and manufacturing quality are in the leading position in the country, and the structure and precision have reached the level of the units introduced in recent years. This unit has high processing quality and assembly accuracy, and adopts a reasonable roll pass, which can produce electric welded steel pipes with relatively high precision.



1. Main Parameters and Specifications



Conforming to the YB189-64 standard

Material

Low carbon steel and low alloy constructional steel

Mechanical properties σb≤610Mpa,σs≤345MPa
strip width 300~800mm
strip thickness 2.0~6.0mm
I.D of Coils Φ580~φ630mm
O.D of Coils φ1300~φ2000mm
Coil Weight ≤18.0T


2. Welded Pipe Specification

square tube size 75 x 75 to 200x200mm
square tube thickness 2.0 to 6.0mm
 Finish pipe length 6 to 9m
Cut accuracy ± 2mm
Forming speed 10 to 50 m/min




3. Main parameters of each unit

loading Car is steel welding structure, has lifting saddle and transverse car two parts.Lifting saddle is four-column guide rod type, oil cylinder lifting saddle.Transverse car is steel structures, on the car body is equipped with four wheels.the car driven by a motor, walking along on the rail which fixed in basis.



The uncoiler is of the structure of one cone. Used to support steel coil and provide raw material for production line.The machine is mainly composed of base, main shaft, rotary support, pneumatic brake device system, for expansion cantilever type.hydraulic expanding and Pneumatic driving

The straight head is main used to lead the new coil steel head feed into the flattener unit after uncoiler unit bring the coil into the working place

The leveling machine is used for leveling the steel strip head and end, makes it easy for shear and welder.

Shear &welder is used to cut the irregular ends of the strips and then connect the strips by welding.

The horizontal accumulator is main include in press& carry material device, accumulator assemble, carry off material unit, electric control unit.

Forming machine. The steel strip go into the forming stand then in the forming part into a round shape, then be welded and shaped to the square.

used to precisely cut the pipe to length automatically under the condition that the pipe continuously delivered from the mill at high speed.
