140mm Precision Tube Mill for Square and Round Pipes

140mm Precision Tube Mill for Square and Round Pipes

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 140mm
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
140mm
Model:
Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine For Precision Tube Mill
Production:
Round Pipe And Square Pipe
Feature:
Erw
Name:
Tube Mill
Other Pipe:
Square Pipe And Rectangular Pipe
Max Size:
140mm
Thickness:
5mm
Length:
6-12m
Rollers:
Include
Keyword:
Precision Tube Mill
Highlight:

High Light

Highlight:

high speed precision tube mill

,

square pipe precision tube mill

,

erw precision tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
60 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine
Product Specifications
Model Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine
Production Round pipe and square pipe
Feature ERW (Electric Resistance Welded)
Maximum Size 140mm
Thickness 5mm
Length 6-12m
Included Components Rollers included
Machine Overview
This precision tube mill is designed to produce high-quality welded steel pipes including round, square, and deformed pipes. Featuring advanced roll pass design, the production line ensures excellent machining quality and high precision assembly.
Technical Specifications
Material Specifications
  • Standard: Carbon steel, hot galvanized steel
  • Material: Low carbon steel and low alloy constructional steel
  • Mechanical properties: σb≤520Mpa, σs≤365MPa
  • Strip Width: 110-200mm
  • Strip Thickness: 0.9-4mm
  • Inner Diameter of Coils: Φ508mm
  • Outer Diameter of Coils: Φ1300~φ2000mm
  • Coil Weight: ≤11T
Pipe Specifications
  • Round pipe: φ38-140mm
  • Square pipe: 30x30mm to 130x130mm
  • Rectangular pipe: 40x20mm to 60x40mm
  • Thickness: 0.9-4.0mm
  • Standard Length: 6m
  • Pipe-cutting Precision: 0-6mm
  • Max Forming Speed: 160m/min for 2mm thickness
Buyer-Supplied Requirements
  • Workshop: 95x12m, Height >5m (with crane)
  • Power: Approx. 850KW 380V/60Hz/3phases
  • Cooling Water System: Flow: 30+30 CBM, Pool Volume: 40m³
  • Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²
  • All external cables to be supplied by buyer after machine installation
Production Process
  1. Strip steel to coil
  2. Uncoiler
  3. End straightener
  4. Flattener
  5. Shear welder
  6. Storage material unit
  7. Forming, welding, cooling
  8. Precision pipe diameter sizing
  9. Precision pipe length sizing and cutting
  10. Inspection
  11. Packaging
Quality Assurance & Service
Our technical service personnel will be on-site for equipment installation, debugging, and commissioning. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related parts failure.

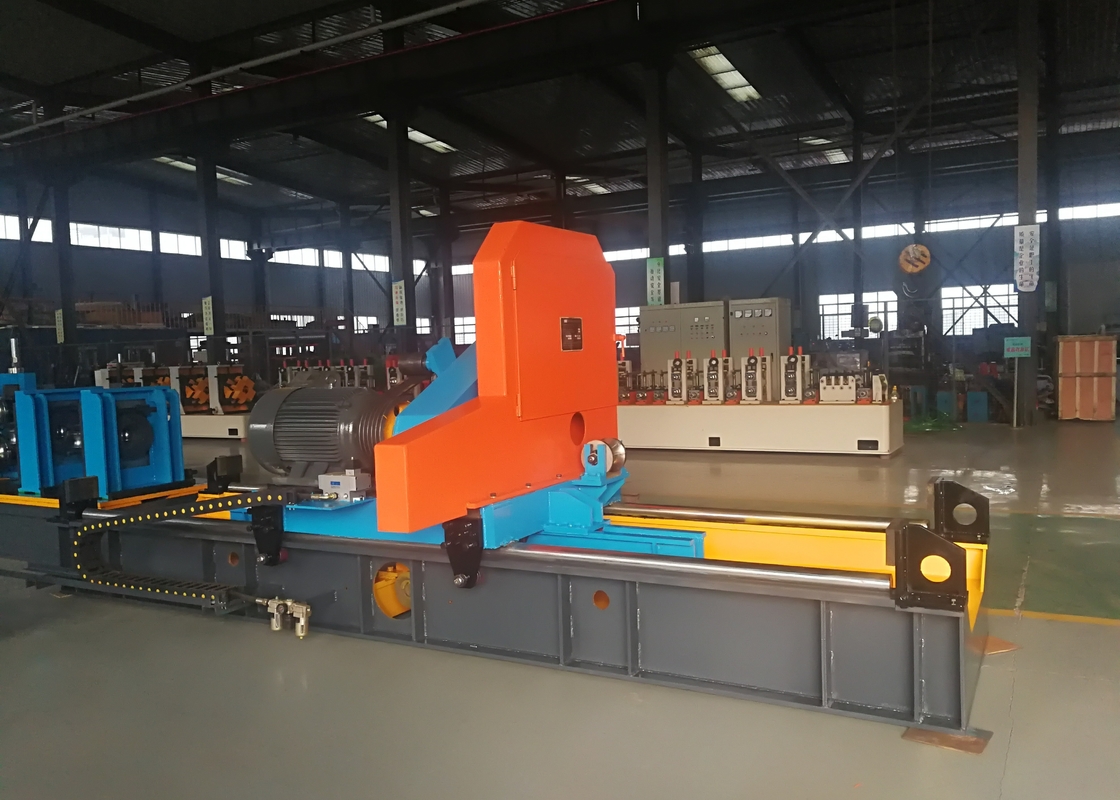

140mm Precision Tube Mill for Square and Round Pipes 0 140mm Precision Tube Mill for Square and Round Pipes 1 140mm Precision Tube Mill for Square and Round Pipes 2
