HG 200x200 Tube Mill Machine for 10mm Square Pipe Production

Name: HG 200x200 Tube Mill Machine for 10mm Square Pipe Production
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 200x200mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	200x200mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

200x200mm

Model:

HG 200x200

Production:

Square Pipe

Feature:

Erw

Name:

Tube Mill Machine

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

200x200mm

Thickness:

10mm

Length:

6-12m

Rollers:

Include

Highlight:

High Light

Highlight:

200x200mm tube mill machine

direct forming tube mill machine

precision welded tube mill machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming

Product Specifications

Attribute	Value
Model	HG 200x200
Production	Square pipe
Feature	ERW
Max Size	200x200mm
Thickness	10mm
Length	6-12m
Rollers	Included

Product Description

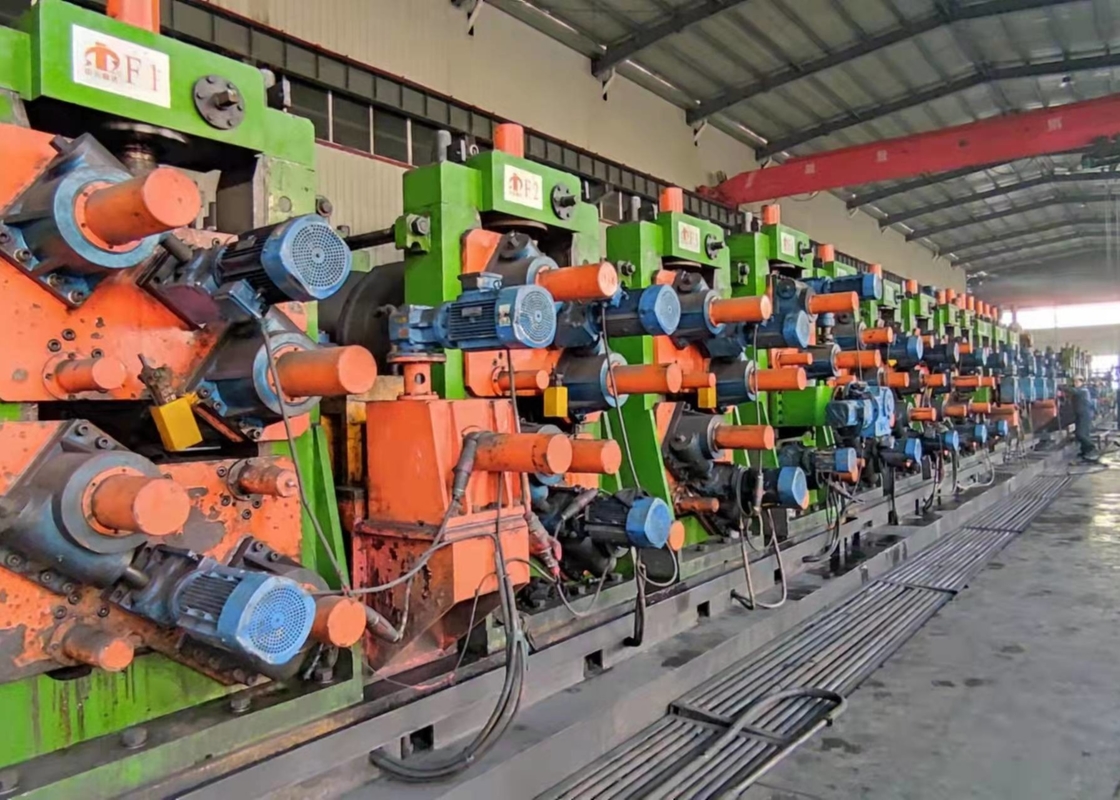

This Tube Mill Machine is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Utilizing advanced roll pass design, the production line delivers precision machining and high assembly accuracy.

Material Specifications

Standard: Carbon steel, hot galvanized steel

Material: Low carbon steel and low alloy constructional steel

Mechanical Properties: σb≤520Mpa, σs≤365MPa

Strip Width: 110-800mm

Strip Thickness: 5-10mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤11T

Pipe Specifications

Pipe Diameter: Square pipe: 100x100-200x200mm

Thickness: 5-10mm

Length: 6m

Pipe-cutting Precision: 0-6mm

Forming Speed: Max 160m/min for 2mm thickness

Buyer Requirements

Workshop: 95x12m, H＞5m (crane to ground)

Power: Approx. 850KW 380V/60Hz/3phases

Cooling Water: Flow: 30+30 CBM, Pool Volume: 40m³

Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²

Cables: Buyer to supply after machine installation

Production Process

strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → forming, welding, cooling, accurate pipe diameter size → accurate pipe length size, cutting → inspection → package

Quality Assurance & Warranty

Our technical personnel will be on-site for equipment installation, debugging, and operator training. The warranty covers 12 months from equipment arrival date for manufacturing defects under normal operation. We provide lifelong technical support and fast-response service.

Our Services

Packing: Sea-worthy packaging with mechanical parts in nude pack and electrical components in simple packing
Quality Assurance: Strict manufacturing according to relevant standards with comprehensive testing
Installation: Three engineers provided for installation (buyer covers travel and accommodation)
Warranty: 1-year warranty after successful test run (excludes buyer-caused issues)

About Our Company

Hebei Tengtian Welded Pipe Equipment Manufacturing Co., Ltd specializes in high-frequency welded pipe equipment, slitting lines, and stainless steel units. Our products are exported to South Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and other countries, earning high praise from customers worldwide.
