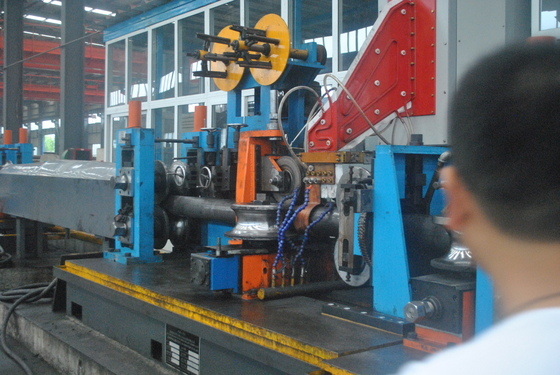

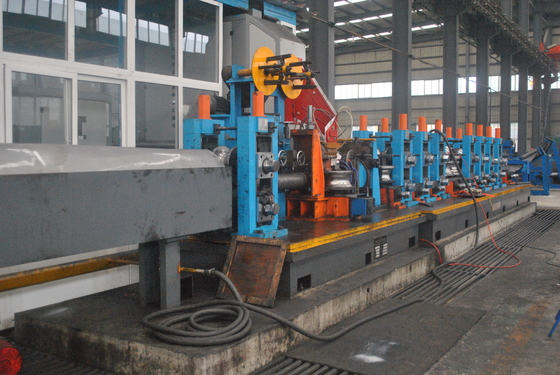

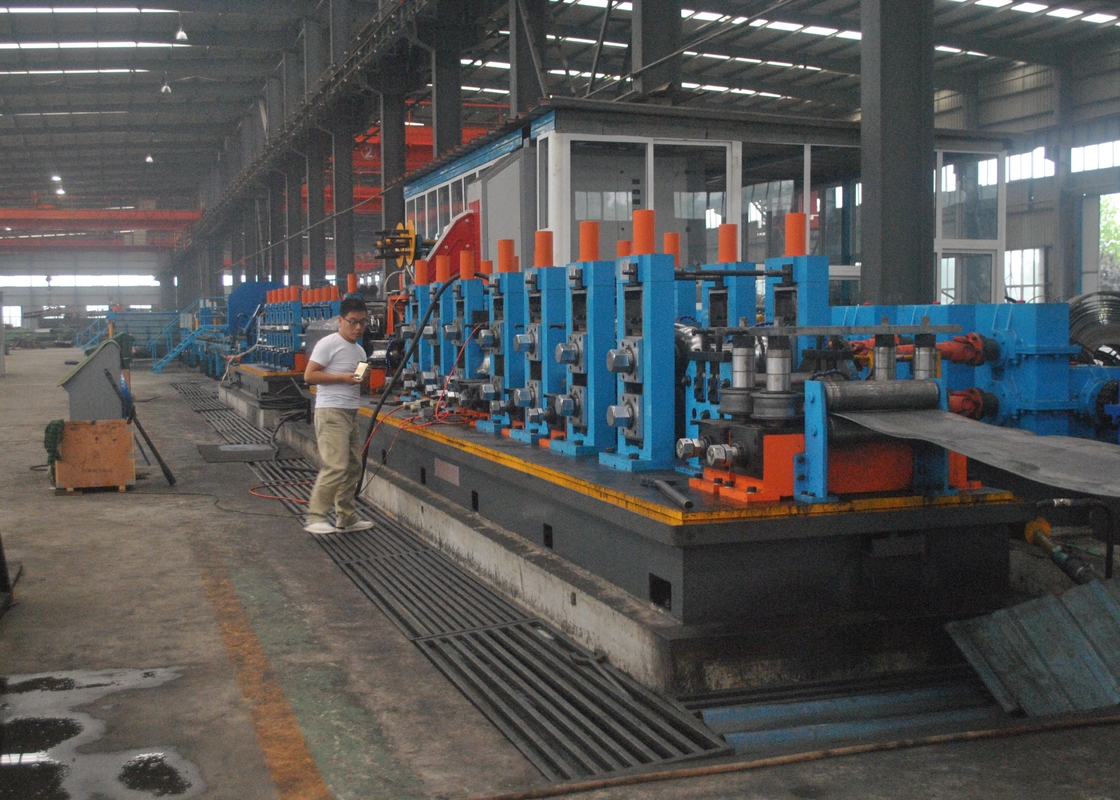

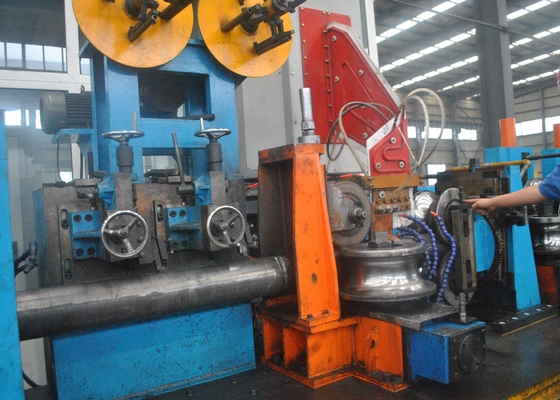

140x140mm modle Automatic Tube Mill making With Motor Adjust Stand

140x140mm modle Automatic Tube Mill making With Motor Adjust Stand
140x140mm modle Automatic Tube Mill making With Motor Adjust Stand 140x140mm modle Automatic Tube Mill making With Motor Adjust Stand 140x140mm modle Automatic Tube Mill making With Motor Adjust Stand 140x140mm modle Automatic Tube Mill making With Motor Adjust Stand

Large Image :  140x140mm modle Automatic Tube Mill making With Motor Adjust Stand

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 140x140mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 140 Production: Square Pipe
Feature: Erw Name: Tube Mill
Other Pipe: Square Pipe And Rectangular Pipe Max Size: 140x140mm
Thickness: 10mm Length: 6-12m
Rollers: Include
High Light:

140x140mm automatic tube mill

,

precision automatic tube mill

,

motor adjust stand tube mill machine

140x140mm modle Automatic Tube Mill making With Motor Adjust Stand




Machine General Introduction


It is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.


Main Parameters and Specifications



(1)Material Specifications:

Standard

carbon steel, hot galvanized steel

Material

Low carbon steel and low alloy constructional steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

110-540mm

Strip Thickness:

1-5mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤11T

(2)Pipe Specification

Pipe Diameter

Square pipe :70x70-140x140mm
Thickness:1-5mm

Length

6m

Pipe-cutting Precision

0-6mm

Forming Speed

Max 160m/min for 2mm thickness

(3)The buyer should self-supply

Work shop

95x12m, H>5m(crane to ground)

Power

Approx.850KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.



Working Process



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
140x140mm modle Automatic Tube Mill making With Motor Adjust Stand 0



Quality and After-sale Service Warranty


Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

140x140mm modle Automatic Tube Mill making With Motor Adjust Stand 1


Company Profile

Hebei tengtian weldedpipe equipment manufacturing co.,ltd is a collection of scientific research,production ,sales and service as one of the high frequency welded pipe equipment and opening cold bend steel equipment professional manufacturers.Our company is specializing in the production of high-frequency welded pipe,slitting,opening cold bend steel,stainless steel units and other equipment of the enterprise,the company has a skilled and business ability strong vibrant team.has been exported to South Korea,Vietnam,Indonesia,South Africa,Kazakhstan and other dozens of countries and regions,by domestic and foreign merchants high praise.
140x140mm modle Automatic Tube Mill making With Motor Adjust Stand 2
