Straight Seam ERW HRC Tube Mill with Hydraulic Cutter

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	200

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

200

Applicable Materials:

Q235

Cutting Method:

Hydraulic Cutter

Product Name:

Straight Seam Erw HRC Automatic Tube Mill Equipment

Equipment Specification:

Customer Specified

Forming Method:

Roller Squeeze

Speed:

25 M/min

Warranty:

One Year

Material:

Low Carbon HRC

Forming Type:

Direct Forming

Work Shop:

30 X 5 M, H＞3m ( Crane To Ground )

Highlight:

High Light

Highlight:

straight seam welded tube mill

hrc welded tube mill

straight seam tube mill equipment

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Straight Seam ERW HRC Automatic Tube Mill Equipment

Product Specifications

Attribute	Value
Applicable materials	Q235
Cutting method	Hydraulic cutter
Equipment Specification	Customer specified
Forming method	Roller Squeeze
Speed	25 m/min
Warranty	One year
Material	Low carbon HRC
Forming type	Direct forming
Work shop	30 x 5 m, H＞3m (crane to ground)

Product Overview

This automatic tube mill equipment combines international market demands with our LW series unit and FF forming technology to produce square and rectangular tubes efficiently. The system enables rapid adjustment of forming rollers, significantly reducing product changeover time while improving efficiency and lowering production costs.

Key Features

Quick roller adjustment capability
Produces multiple tube specifications with simple adjustments
Reduces labor requirements and associated costs
Enhances equipment service life
Individual machine components can be serviced independently

Machine Components

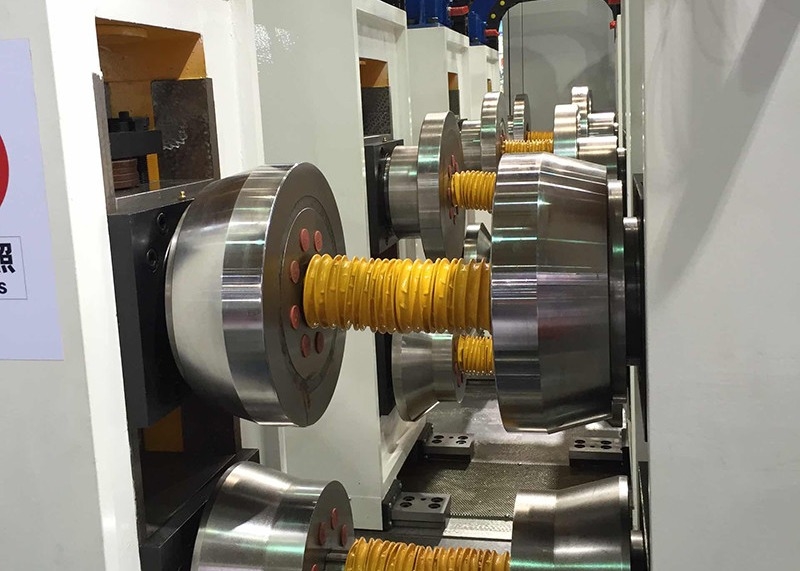

Forming Section

Includes seven horizontal roll racks, four empty curving racks, four vertical roll racks, and one feeding rack.

Welding Section

Comprises five roller extruding rolls, two scraping scar racks, and one polish rack.

Shaping Section

Consists of four roller racks for final shaping.

Control System

Multi-point PLC control for precise operation.

Equipment Configuration

1	Winding and unwinding reels
2	Straightener & leveler
3	Automatic shear and welding
4	Feeder and punching machine
5	Automatic forming and sizing part
6	Cutting machine
7	Via rollers
8	Automatic packing and palletizing
