Home > products >
Square Tube Mill
>
Full Automatic Square Tube Mill with Roller Forming 25 m/min
Full Automatic Square Tube Mill with Roller Forming 25 m/min
  • Full Automatic Square Tube Mill with Roller Forming 25 m/min
  • Full Automatic Square Tube Mill with Roller Forming 25 m/min

Full Automatic Square Tube Mill with Roller Forming 25 m/min

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: 219.3
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE, ISO9001, BV
Model Number:
219.3
Mill Name:
Rectangular Shape Pipe Mill Roller Forming Seam Welded Square Tube Mill
Cutting Method:
Milling Saw
Product Name:
Full Automatic Production Line
Equipment Specification:
Customer Specified
Forming Method:
Roller Squeeze
Speed:
25 M/min
Warranty:
One Year
Material:
Low Carbon HRC
Forming Type:
Direct Forming
Work Shop:
100 X 5 M, H＞3m ( Crane To Ground )
Highlight:

High Light

Highlight:

rectangular shape tube rolling mill

,

cold bending seam tube rolling mill

,

welded pipe production square tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
120 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Rectangular Shape Pipe Mill Roller Forming Seam Welded Square Tube Mill
Product Specifications
Attribute Value
Mill Name Rectangular Shape Pipe Mill Roller Forming Seam Welded Square Tube Mill
Cutting method milling saw
Product name Full Automatic Production Line
Equipment Specification customer specified
Forming method Roller Squeeze
Speed 25 m/min
Warranty One year
Material Low carbon HRC
Forming type direct forming
Work shop 100 x 5 m, H＞3m (crane to ground)
Product Overview

The Rectangular Shape Pipe Mill Roller Forming Seam Welded Square Tube Mill combines international market demand with our company's LW series unit and FF forming technology to create automatic square and rectangular tube equipment. This system enables rapid adjustment of forming rollers and significantly reduces product changeover time, improving efficiency and reducing production costs.

The equipment can produce different size tubes without roll changes, using one set of combined molds. Adjustments alone allow production of different tube specifications, achieving a roll savings rate above 90% and substantially reducing roll costs.

Key Features
  • Rapid roller adjustment capability
  • Produces different tube specifications with simple adjustments
  • Reduces required workforce and labor costs
  • Extends equipment service life
  • Individual machine components can be repaired independently
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
LW200 30*30-50*50MM 1-3MM 20-80
LW600 60*60-150*150MM 2-7MM 20-60
LW800 80*80-200*200MM 1-3MM (or 4-13) 20-40
LW1000 100*100-250*250MM 3-12.7MM (or4-14) 15-30
LW1200 120*120-300*300MM 3-14MM 10-25
LW1400 150*150-350*350MM 4-14MM 8-20
LW1600 200*200-400*400MM 4-16MM 8-20
Equipment Components
No. Name
1 Winding and unwinding reels
2 Straightener & leveler
3 Automatic shear and welding
4 Feeder and punching machine
5 Automatic forming and sizing part
6 Cutting machine
7 Via rollers
8 Automatic packing and palletizing
Product Images

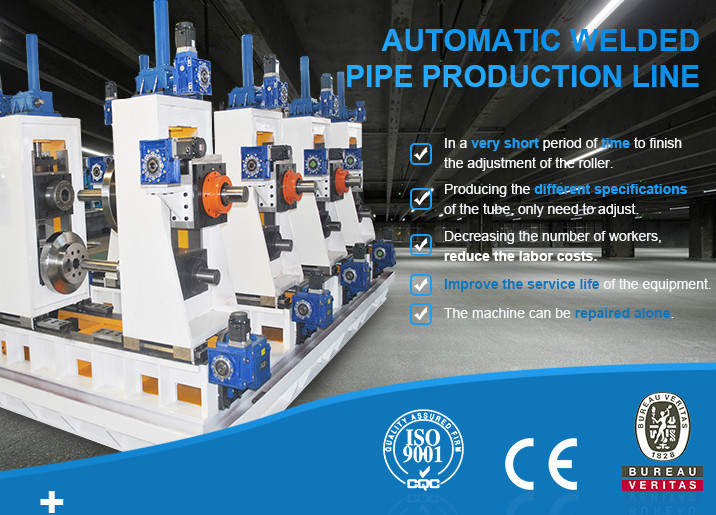

Full Automatic Square Tube Mill with Roller Forming 25 m/min 0 Full Automatic Square Tube Mill with Roller Forming 25 m/min 1 Full Automatic Square Tube Mill with Roller Forming 25 m/min 2
