HG20mm Carbon Steel Welded Pipe Mill Machine for Round Tubing

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	20

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

Product Name:

Carbon Steel Hg20mm Diameter Welded Pipe Mill Machine For Round Tubing

Feature:

High Precision

Name:

Welded Pipe Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

10-20mm

Thickness:

1.0-2.5mm

Length:

6-12m

Keywords:

Welded Pipe Mill Machine

Highlight:

High Light

Highlight:

20mm dia welded pipe mill

cs round welded pipe mill

20mm dia welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

HG20mm Diameter Carbon Steel Welded Pipe Mill Machine

The HG20 High-Frequency Welded Pipe Production Line is designed for manufacturing precision welded round pipes with diameters of 10-20mm and wall thicknesses of 2.0-4.0mm. Featuring advanced roll pass design, this machine delivers superior quality welded steel pipes with high precision assembly.

Key Specifications

Attribute	Value
Product Type	Welded Pipe Mill Machine
Compatible Pipe Shapes	Round, Square, Rectangular
Diameter Range	10-20mm
Thickness Range	1.0-2.5mm
Length Range	6-12m
Material Standards	Conforms to YB189-64 standard
Forming Speed	10-50m/min

Material Specifications

Material: Low carbon steel and low alloy constructional steel
Mechanical properties: δs≤345Mpa, δb≤610Mpa
Strip Width: 30-80mm
Strip Thickness: 2.0-4.0mm
Coil Specifications: Inner φ480-φ570mm, Outer φ1000-φ1800mm
Max Coil Weight: ≤2.5T

Production Process

Strip steel to coil

Uncoiler

End straightener

Flattener

Shear welder

Storage material unit

Forming, welding, cooling

Precision diameter sizing

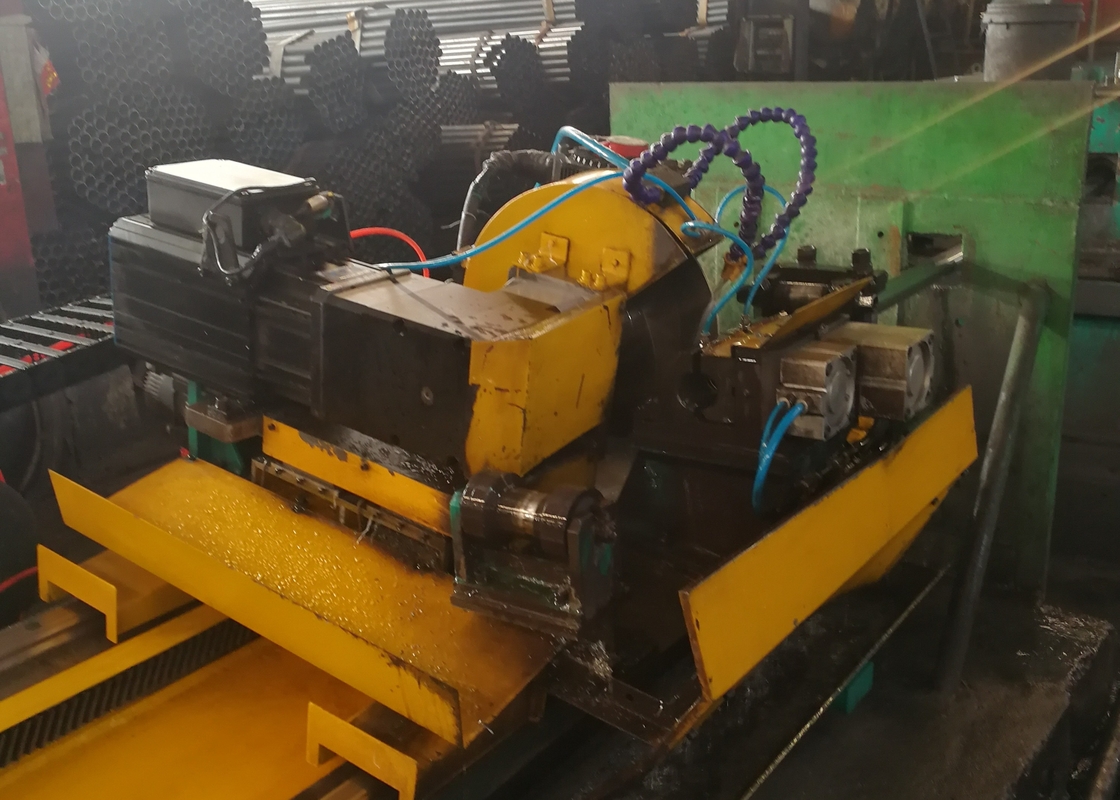

Precision length sizing and cutting

Inspection

Packaging

Quality Assurance & Service

Our technical team provides on-site debugging, maintenance, and commissioning services upon equipment arrival. Includes comprehensive training for operation and maintenance personnel. Equipment comes with a 12-month warranty from arrival date, covering free repair or replacement for quality-related issues under normal operating conditions.

Technical Documentation

Pipe Mill Instruction Manual (provided one month before delivery)
Inspection Certificate (provided at delivery)
Loading Order (provided at delivery)
Layout Drawing (provided one month before delivery)
Ground Base Drawing (provided one month before delivery)
Electrical Principle Diagram
Overall Assembly Drawings for all line units
Part Diagrams for vulnerable components

Packaging & Delivery

Packaging: Nude packaging suitable for containerized sea shipping
Delivery Time: Shipped within 45 days after payment

Our Manufacturing Facility

Buyer Requirements

Workshop: 60x6m, Height >5m (with crane)
Power: Approximately 1212KW, 380V/50Hz/3phases
Cooling Water: Flow 20-30T/h, Pool Volume 30m³
Compressed Air: Flow 5m³/min, Pressure 5-7kg/cm²
