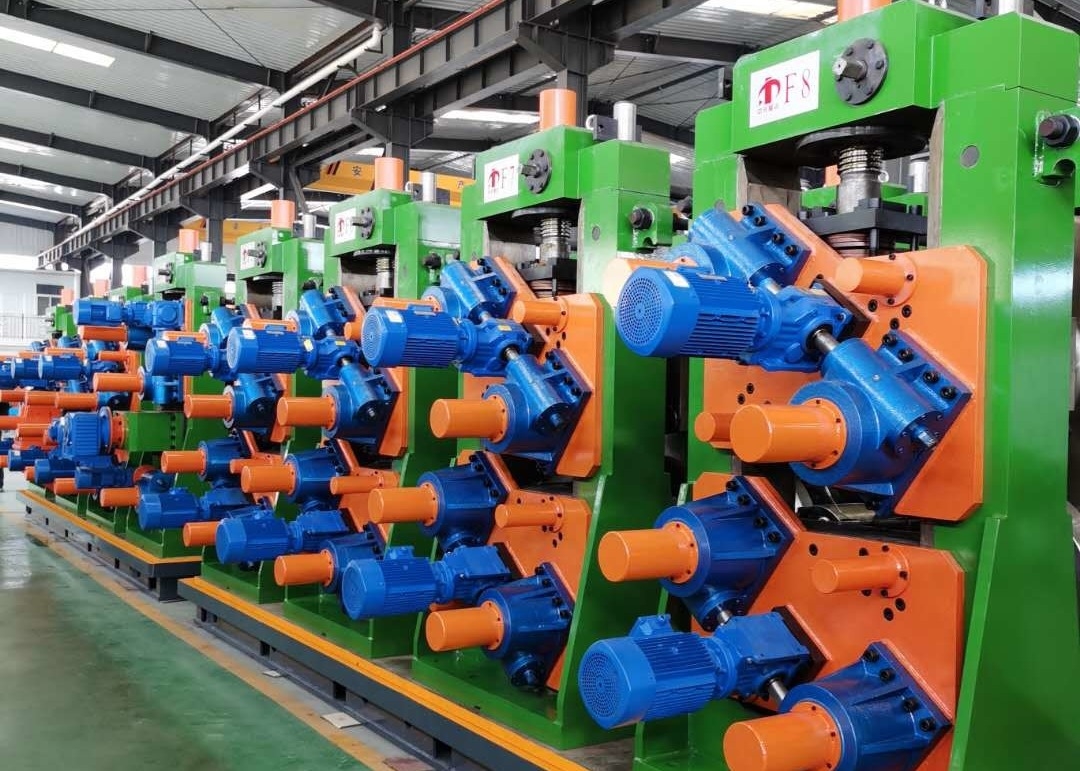

Dia 12 - 32 mm Automatic Tube Mill Pipe Welding Equipment Welded Pipe Mill

Large Image : Dia 12 - 32 mm Automatic Tube Mill Pipe Welding Equipment Welded Pipe Mill

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG 32

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	300 work days
Payment Terms:	L/C, T/T, D/A, T/T
Supply Ability:	4 Sets/Year

Contact Now

Detailed Product Description

Product Name:	Dia 12 - 32 Mm Automatic Tube Mill Pipe Welding Equipment Welded Pipe Mill	Equipment Specification:	Customer Specified
Forming Method:	Roller Squeeze	Warranty:	One Year
Pipe Material:	Carbon Steel	Pipe Shape:	Round And Square
Thickness:	0 . 3 Mm - 2 . 0 Mm	Pipe Diameter:	12 - 32
Raw Material:	Carbon Steel	Keywords:	Welding Equipment Welded Pipe Mill
Highlight:	dia 12mm automatic tube mill , high speed rolling automatic tube mill , dia 32mm carbon steel pipe mill

Dia 12 - 32 mm High Speed Tube Making Machine Rolling Mill Machine Welded Pipe Mill

I. Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

II. Equipment description

Welded pipe mill are mainly used to produce various iron pipes, water pipes. The production of the process of opening, forming, welding, polishing, fixed diameter, straight, fixed ruler, cutting off and other processes. Due to the maturity of technology, in many fields such as anti -theft doors and windows, stairs armrests, drinking water pipes, food sanitary pipes, automobile exhaust pipes, mufflers, heat exchanger pipes, petrochemical pipes, ships, etc.

III.

Welded pipe mill making other model

No.	Model	Diameter(mm)	Thickness (mm)	Forming Speed (m/min)	Installed Capacity(kw)	Pipe material
1	HG32	12 - 32	0.6 - 2	120(MAX)	132	Carbon Steel
2	50	20 - 50	0.6 - 3	120(MAX)	160	Carbon Steel
3	60	25 - 60	0.6 - 3.5	120(MAX)	160	Carbon Steel
4	76	32 - 76	1 - 4	20 - 100	200	Carbon Steel
5	89	32 - 89	1.5 - 4.5	20 - 100	250	Carbon Steel
6	114	48 - 114	1 - 5.5	20 - 80	132 + 160	Carbon Steel
7	140	48 - 140	2 - 5	10 - 60	160 x 2	Carbon Steel
8	165	76 - 165	2 - 7	20 - 60	200	Carbon Steel
9	219	89 - 219	3 - 10	20 - 50	200 + 200	Carbon Steel

IV. Equipment composition

No.	Name
1	winding and unwinding reels
2	Straightener & leveler
3	Automatic shear and welding
4	Feeder and punching machine
5	Automatic forming and sizing part
6	Cutting machine
7	via rollers
8	Automatic packing and palletizing
