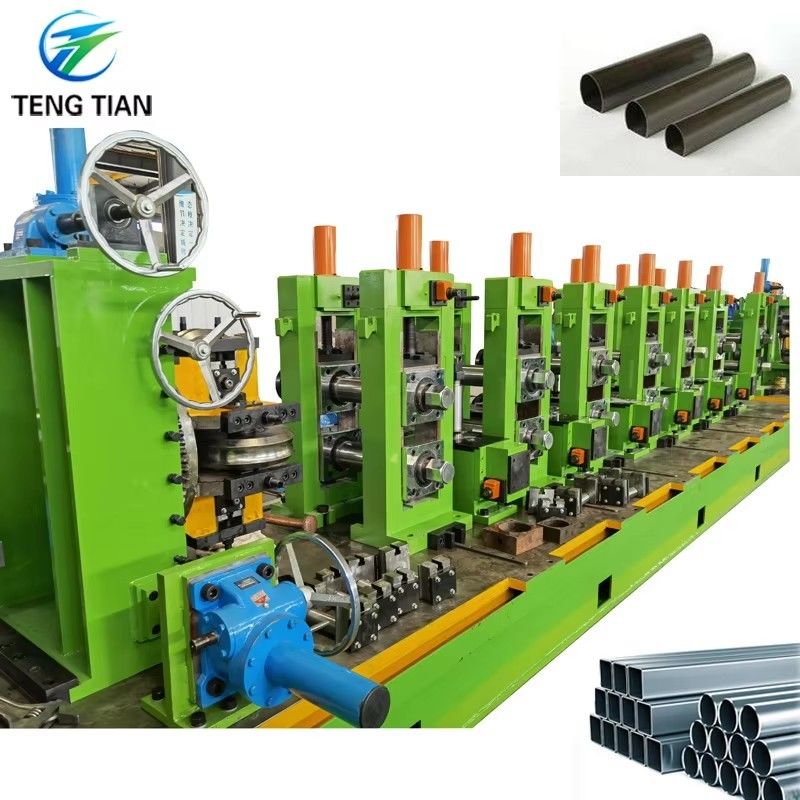

HG114 Carbon Steel Fully Automatic Welded Pipe Mill 508-610mm

Name: HG114 Carbon Steel Fully Automatic Welded Pipe Mill 508-610mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 114
Price: 25,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG 114

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG 114

Product Name:

HG114 Carbon Steel Fully Automatic Welded Pipe Mill

Cutting Length:

6-12 M

Cut:

1-4 Mm

Inner Diameter:

φ508～φ610mm

Accumulator Material:

Carbon Steel

Forming Type:

Roll Forming

Type:

ERW Pipe Production Line

Pipe Thickness:

1.5mm - 5mm

Condition:

New

Keyword:

Fully Automatic Welded Pipe Mill

Highlight:

High Light

Highlight:

Pipe Mill Fully Automatic

Hg114 Pipe Mill

Welded Pipe Mill Automatic

Trading Information

Minimum Order Quantity:

1 Set

Price:

$50000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

50 days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Yearly

Product Description

HG114 Carbon Steel Fully Automatic Welded Pipe Mill

Product Specifications

Attribute	Value
Product Name	HG114 Carbon Steel Fully Automatic Welded Pipe Mill
Cutting Length	6-12 M
Cut	1-4 mm
Inner Diameter	φ508～φ610mm
Accumulator Material	Carbon Steel
Forming Type	Roll Forming
Type	ERW Pipe Production Line
Pipe Thickness	1.5mm - 5mm
Condition	New

Product Description

The HG114 Carbon Steel Fully Automatic Welded Pipe Mill is designed to produce high-quality welded pipes with diameters ranging from 50mm to 101.6mm and wall thicknesses from 1.0mm to 4.0mm. The production line can also manufacture square, rectangular, and deformed pipes of corresponding sizes.

Technical Specifications

Power	Power Volume of the Line	Approx. 800KW
Power Source	380V/50Hz/3phases
Circulation Cooling Water	Flow	30T/h～40 T/h
	Pool Volume	60m3
Compressed Air	Flow	5m3/min
	Pressure	5～7kg/cm2

Model Specifications

Model	Diameter Range	Pipe Thickness	Molding speed(m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

About Our Company

Hebei Tengtian Welded Pipe Equipment Manufacturing Co., Ltd. specializes in the production of pipe mills, slitting lines, cold roll forming machines, and stainless steel pipe mills. Our equipment is manufactured in strict accordance with Japanese standards, combining advanced technology with innovative design for superior performance and reliability.

Our Qualifications

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale support
Project design services for stainless steel and carbon steel pipe production
Long-term technical support with our engineers available for extended periods
Full responsibility for loading and shipping

Global Reach

Our equipment has been exported to numerous countries including South Korea, Vietnam, Indonesia, South Africa, Kazakhstan, Egypt, and Greece, receiving consistently positive feedback from customers worldwide.
