Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology

Large Image : Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG127

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	60 work days
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets/Year

Contact Now

Detailed Product Description

Product Name:	Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology	Coil Thickness:	1.5～4.5mm
Coil Width:	160～400mm	Inner Diameter:	φ508～φ610mm
Outer Diameter:	φ1500～φ2000mm	Speed:	75X45—80m/min；100X100—60m/min
Warranty:	One Year	Material:	Low Carbon HRC
Keywords:	Welded Pipe Mill Tube Machine
Highlight:	unit combined welded pipe mill , ff forming technology welded pipe mill , ff forming technology welded tube mill

LW Series Unit Combined Welding Tube Machine FF Forming Technology Weld Pipe Mill

I. Material Specifications:

Conforming to the YB189-64 standard

Material : Low carbon steel and low alloy constructional steel

Mechanical properties: σb≤520Mpa,σs≤365MPa

strip width:160～400mm

strip thickness:1.5～4.5mm

Inner Diameter of Coils:φ508～φ610mm

Outer Diameter of Coils:φ1500～φ2000mm

Coil Weight:≤10.0T

II. Welded Pipe Specification

Round Pipe Diameter :φ40～φ127mm

Square pipe size:40×40-100×100mm

Round pipe thickness:1.5～4.5mm

Square pipe thickness:1.5- 4.5mm

Finish pipe length:4～12m

Cut accuracy:±1.5mm

Forming speed:75X45—80m/min；100X100—60m/min

Power, Water & Air Supply

1	Power	Power Volume of the Line	Approx.900KW
		Power Source	380V/60Hz/3phases
2	Circulation Cooling Water	Flow	20T/h～30 T/h
		Pool Volume	30m3
3	Compressed Air	Flow	5m3/min
		Pressure	5～11kg/ cm2

III. Product process:

Coil Loading → Uncoiling →Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →cutting saw → Packing → Storage

IV. Main parameters of each unit.

coil out diameter	Φ1600-2000mm
coil inner diameter	Φ508-610mm
strip width	160-400mm
strip width	1.5-4.5mm
strip weight	Max7.0T
expand type	hydraulic expand,sliding block structure
break	Pneumatic drive,2 pcs disc break
mandrel material	40Cr,HB220-260
center higher	1100mm

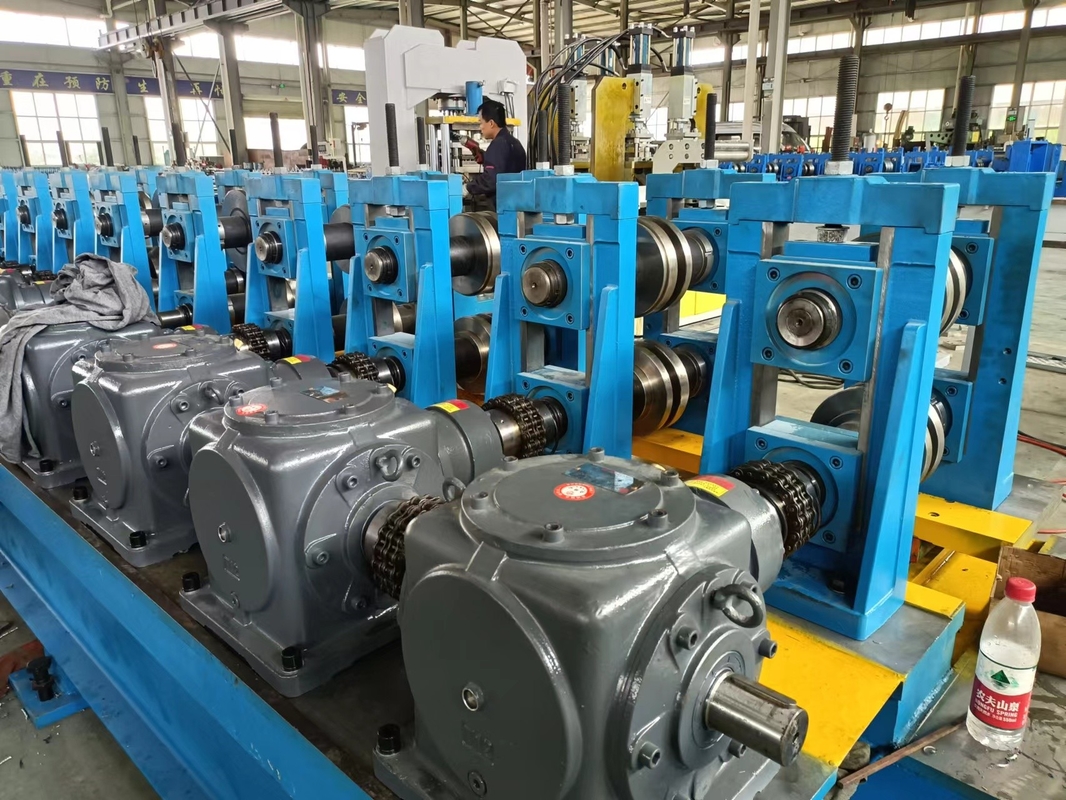

Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology 0

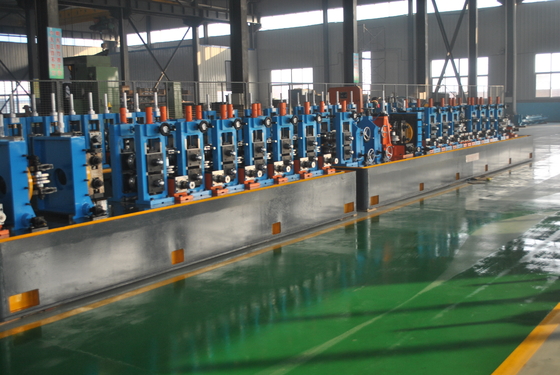

Lw Series Unit Combined Welded Pipe Mill Tube Machine Ff Forming Technology 1
