76mm Galvanized Steel Pipe Mill for Square and Round Tubes

Name: 76mm Galvanized Steel Pipe Mill for Square and Round Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 76mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	76mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

76mm

Model:

76mm Galvanized Steel Pipe Making Machine Square Tube Mill

Production:

Square Pipe,round Pipe

Name:

Steel Pipe Production Line

Other Pipe:

L T Z Pipe

Max Size:

76mm

Thickness:

3.0mm

Length:

6-12m

Rollers:

Cr12,Cr12Mov

Highlight:

High Light

Highlight:

76mm square tube mill

galvanized steel square tube mill

76mm square pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

76mm Galvanized Steel Pipe Making Machine Square Tube Mill

Product Specifications

Attribute	Value
Model	76mm Galvanized Steel Pipe Making Machine Square Tube Mill
Production	Square pipe, round pipe
Name	Steel Pipe production line
Other pipe	L T Z pipe
Max size	76mm
Thickness	3.0mm
Length	6-12m
Rollers	Cr12, Cr12Mov

Machine Overview

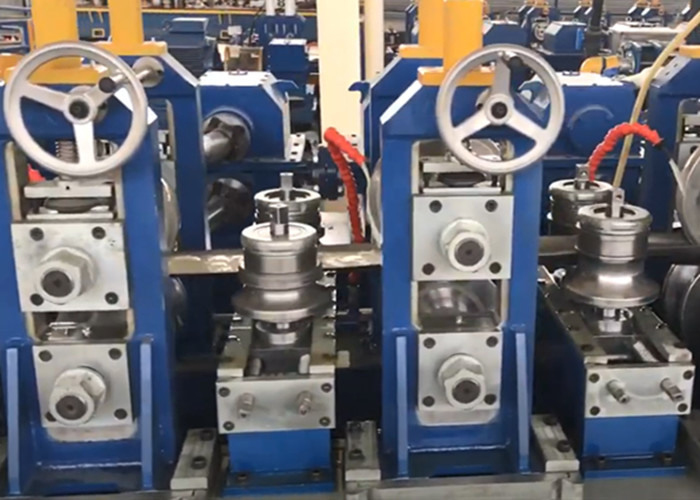

This 76mm Galvanized Steel Pipe Making Machine is designed for high-precision production of welded steel pipes, including round pipes, square pipes, and deformed pipes (LTZ pipes). Featuring advanced roll pass design, the production line delivers superior quality welded steel pipes with excellent machining precision.

Technical Specifications

Material Specifications

Standard: Carbon steel, galvanized steel
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 47-240mm
Strip Thickness: 1.0-3.0mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤3T

Pipe Specifications

Pipe Diameter: Square pipe: 20x20-60x60mm, Thickness: 1.0-3.0mm
Length: 6m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 120m/min for 2mm thickness

Buyer Requirements

Workshop: 50x12m, H＞5m (crane to ground)
Power: Approx. 850KW 380V/60Hz/3phases
Circulation Cooling Water: Flow: 30+30 CBM, Pool Volume: 40m³
Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²
Cable: All external cables to be supplied by buyer after machine installation

Production Process

Strip steel to coil

Uncoiler

End straightener

Flattener

Shear welder

Storage material unit

Forming, welding, cooling, pipe diameter sizing

Pipe length sizing and cutting

Inspection

Packaging

Quality Assurance & Service

Our technical team provides on-site debugging, maintenance, and commissioning services upon equipment arrival. We conduct comprehensive training for your operation and maintenance personnel. The equipment comes with a 12-month warranty from the arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that affect equipment performance.
