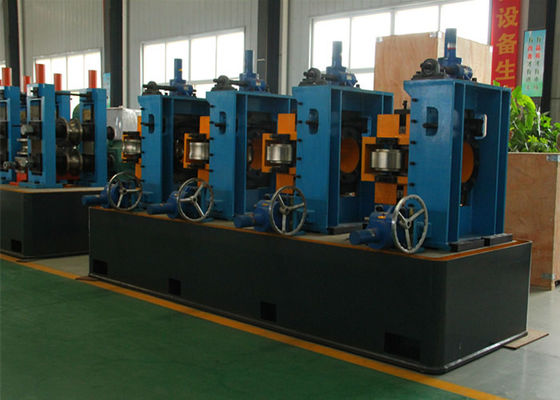

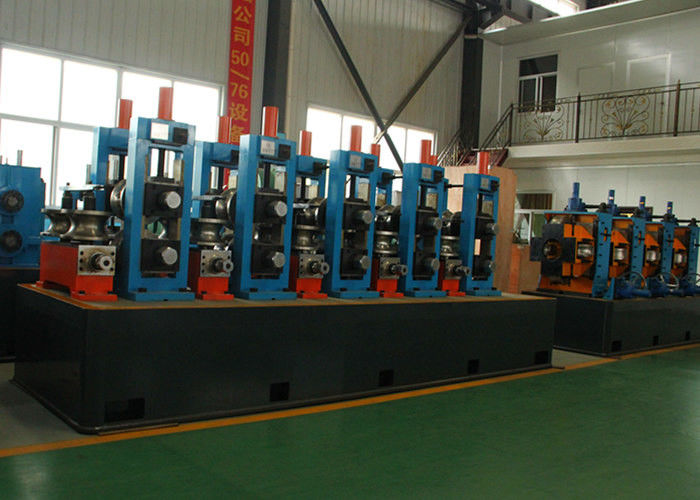

Carbon Steel 5mm Thickness Labor Save Round to Square Tube Mill

Large Image : Carbon Steel 5mm Thickness Labor Save Round to Square Tube Mill

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG114mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	90 wording days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 set/month

Contact Now

Detailed Product Description

Model:	Carbon Steel 5mm Thickness Labor Save Round To Square Tube Mill	Production:	Square Pipe,round Pipe
Name:	Steel Pipe Production Line	Speed:	20-80m/min
Max Size:	90x90mm	Thickness:	4.0mm
Length:	6-12m	Rollers:	Cr12,Cr12Mov
Highlight:	different size carbon steel tube mill , round carbon steel tube mill , carbon square tube mill

Carbon Steel 5mm Thickness Labor Save Round to Square Tube Mill

1.Machine General Introduction

Carbon Steel 5mm Thickness Labor Save Round to Square Tube Mill is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

2.Main Parameters and Specifications:

steel material: Q235,Q345 Low carbon steel
Mechanical properties:σb≤610Mpa,σs≤345MPa
steel width:80-360mm
round pipe size:25.4-114mm
pipe thickness:1.0-4.0mm
square tube size:20x20-90x90mm
forming speed:20-80m/min
pipe length:6-12meter
total power:approx 500kw
factory require: long 90meter,width 5meter(can design layout according to customer factory)

3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

Carbon Steel 5mm Thickness Labor Save Round to Square Tube Mill 0
