Adjustable Size HRC High Frequency Welded Pipe Mill Carbon

Name: Adjustable Size HRC High Frequency Welded Pipe Mill Carbon
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG140mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG140mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG140mm

Product Name:

Adjustable Size HRC High Frequency Welded Pipe Mill Carbon

Pipe Shape:

Square,round,rec,LTZ

Name:

Erw Pipe Mill

Pipe Material:

HRC/CRC

Max Size:

110x110mm

Max Thickness:

5.0mm

Length:

6-12m

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

hrc high frequency welded pipe mill

carbon high frequency welded pipe mill

adjustable size carbon steel pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Adjustable Size HRC High Frequency Welded Pipe Mill Carbon

Attribute	Value
Product Name	Adjustable Size HRC High Frequency Welded Pipe Mill Carbon
Pipe Shape	Square, Round, Rectangle, LTZ
Pipe Material	HRC/CRC
Maximum Size	110x110mm
Maximum Thickness	5.0mm
Length	6-12m

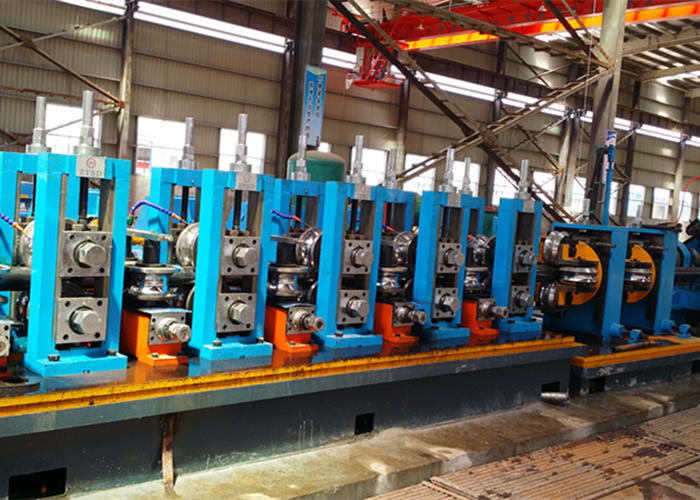

Machine General Introduction

This high-frequency welded pipe mill is designed to produce various steel pipes including round, square, and deformed pipes as well as LTZ pipes. Featuring advanced roll pass design, the production line manufactures welded steel pipes with excellent quality machining and high precision assembly.

Main Parameters and Specifications

Model	Size Range	Thickness	Steel Material	Factory Size
HG20	6 x 6 ~ 16 x 16 mm	0.3 -1 mm	Q235,Q345	40m
HG32	9 x 9 ~ 25 x 25 mm	0.3 - 2.0 mm	Q235,Q345	50m
HG50	12 x 12 ~ 40 x 40 mm	0.8 - 2.5 mm	Q235,Q345	60m
HG60	15 x 15 ~ 47 x 47 mm	0.8 - 3 mm	Q235,Q345	60m
HG76	9 x 9 ~ 60 x 60 mm	1 - 3 mm	Q235,Q345	70m
HG89	25 x 25 ~ 70 x 70 mm	1 - 4 mm	Q235,Q345	70m
HG114	35 x 35 ~ 89 x 89 mm	1.5 - 5.0 mm	Q235,Q345	80m
HG165	47 x 47 ~ 129 x 129 mm	3 - 7 mm	Q235,Q345	90m
HG219	89 x 89 ~ 172 x 172 mm	4 - 8 mm	Q235,Q345	90m
HG273	89 x 89 ~ 214 x 214 mm	4 - 10 mm	Q235,Q345	120m
HG325	129 x 129 ~ 255 x 255 mm	4 - 12 mm	Q235,Q345	150m
HG426	129 x 129 ~ 335 x 335 mm	4 - 16 mm	Q235,Q345	200m

Working Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Formed, welding, cooling, accurate pipe diameter size
Accurate pipe length size, cutting
Inspection
Package

Quality and After-sale Service Warranty

Upon equipment arrival at the buyer's location, our technical service personnel will conduct on-site debugging, maintenance, and equipment commissioning. We provide comprehensive operation and maintenance instructions, along with technical training for the buyer's equipment operation and maintenance personnel. When used according to specifications under normal operating conditions, the equipment comes with a 12-month warranty from the date of arrival. In case of quality issues or parts damage that prevent normal operation, our factory will provide free repairs or replacements.
