50 X 50 - 100 X 100 Mm High Precision Welded Pipe Production Line Automatic Tube Mill

Large Image : 50 X 50 - 100 X 100 Mm High Precision Welded Pipe Production Line Automatic Tube Mill

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 127

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	100 wording days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5 set/year

Contact Now

Detailed Product Description

Production Name:	High Precision Welded Pipe Production Line Automatic Tube Mill	Feature:	Fast Speed And High Precision
Other Pipe:	Round Pipe And Square Pipe	Max Size:	50 X 50 - 100 X 100 Mm
Thickness:	1 . 5 - 4 . 0 Mm	Length:	4 - 12 M
Rollers:	Include	Warranty:	One Year
Key Words:	High Precision Welded Pipe Production Line Automatic Tube Mill
Highlight:	20 x 20 automatic tube mill , fast speed automatic tube mill , precision tube mill line

Automatic 50 X 50 -100 X 100 Mm High Speed Welded Pipe Production Line Automatic Tube Mill

1.Machine General Introduction

HG127 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

square pipe size: 50 x 50 - 100 x 100 mm Pipe thickness: 1.5 - 4 . 0 mm

2.Main Parameters and Specifications:

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σ_b≤520Mpa,σ_s≤365MPa
strip width	200 - 400 mm
strip thickness	1 . 5 - 4 . 0 mm
I.D of Coils	Φ 508 - 610 mm
O.D of Coils	φ 2000 mm
Coil Weight	≤ 10T

⑵ Welded Pipe Specification

Square Pipe Diameter	Φ 50 x 50 ～ φ 100 x 100 mm
pipe thickness	1 . 5 - 4 . 0 mm
Finish pipe length	4 - 12 m
Cut length accuracy	± 3 mm
Forming speed	15 - 60 m/min

⑶ workshop require : 100 m X 6 m ,at least 5m high

Notice:You can modify it according to the actual length of the workshop

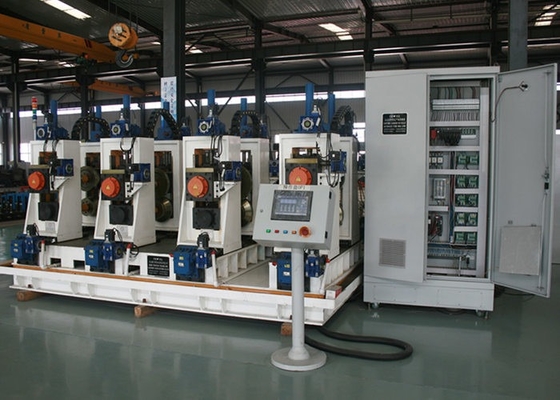

3.Equipment composition:

Double cone hydraulic uncoiler

Straight head and pinch leveling machine

Shear and welder

Horizontal accumulator

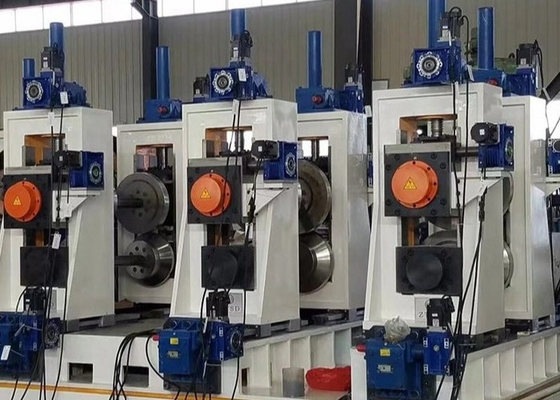

Forming and Sizing Mill

Cold saw

Run out table

Automatic stacking machine

400Kw High Frequency Welder

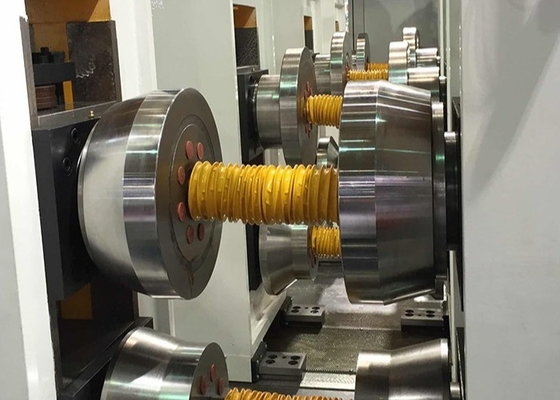

Rollers

4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

50 X 50 - 100 X 100 Mm High Precision Welded Pipe Production Line Automatic Tube Mill 0
