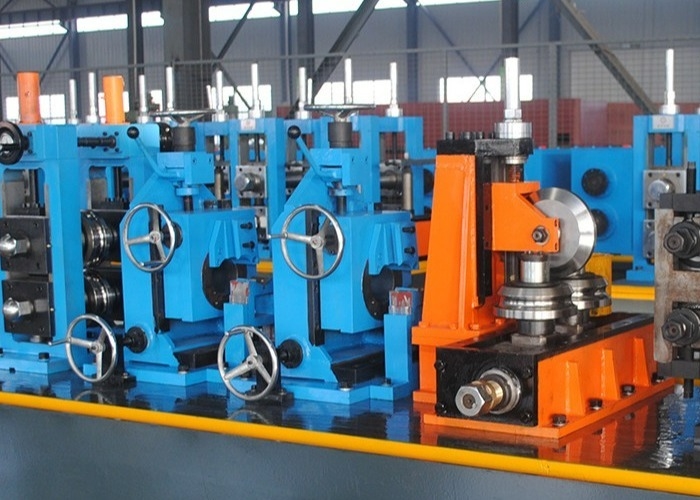

HG 76 High Precision Steel Tube Mill Machine for 16-76mm Pipes

Name: HG 76 High Precision Steel Tube Mill Machine for 16-76mm Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 76

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 76

Production Name:

Tube Mill Machine

Model:

HG 76

Feature:

Blue And High Precision

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

16 - 76 Mm

Thickness:

0 . 4 - 2 . 75 Mm

Length:

4 M - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

High Precision Steel Welded Pipe Mill Making Machine Tube Mill Machine

Highlight:

High Light

Highlight:

60mm welded pipe mill

round shape welded pipe mill

60mm welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

HG 76 Mm Blue High Precision Steel Welded Pipe Mill Making Machine Tube Mill Machine

Product Specifications

Attribute	Value
Production Name	Tube Mill Machine
Model	HG 76
Feature	Blue and high precision
Other Pipe Types	Square pipe and Rectangular pipe
Max Size	16 - 76 mm
Thickness	0.4 - 2.75 mm
Length	4 m - 6 m
Rollers	Included
Warranty	One year

Machine Overview

The HG 76 high frequency welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Round pipe size: 16 - 76 mm | Pipe thickness: 0.4 - 2.75 mm

Technical Specifications

Material Specifications

Standard	YB189-64
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb ≤ 380 Mpa, σs ≤ 275 MPa
Strip Width	50 - 240 mm
Strip Thickness	0.4 - 2.75 mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Welded Pipe Specifications

Round Pipe Diameter	Φ16 - φ76 mm
Pipe Thickness	0.4 - 2.75 mm
Finish Pipe Length	6 m - 8 m
Cut Length Accuracy	±1.5 mm
Forming Speed	60 - 120 m/min

Workspace Requirements

70 x 6 m, H＞5m

Note: Can be modified according to actual workshop length

Production Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing, cutting
Inspection
Packaging

Quality Assurance & Warranty

Our technical service personnel will be on-site for equipment debugging, maintenance, and operation training. When used according to specifications, the equipment comes with a 12-month warranty from the date of arrival. In case of quality issues under normal operation, we provide free repair or replacement of damaged parts.
