| Production Name: | Tube Mill Machine | Model: | HG 76 |
|---|---|---|---|
| Feature: | Blue And High Precision | Other Pipe: | Square Pipe And Rectangular Pipe |
| Max Size: | 16 - 76 Mm | Thickness: | 0 . 4 - 2 . 75 Mm |
| Length: | 4 M - 6 M | Rollers: | Include |
| Warranty: | One Year | Key Words: | High Precision Steel Welded Pipe Mill Making Machine Tube Mill Machine |
| High Light: | 60mm welded pipe mill,round shape welded pipe mill,60mm welded tube mill |
||

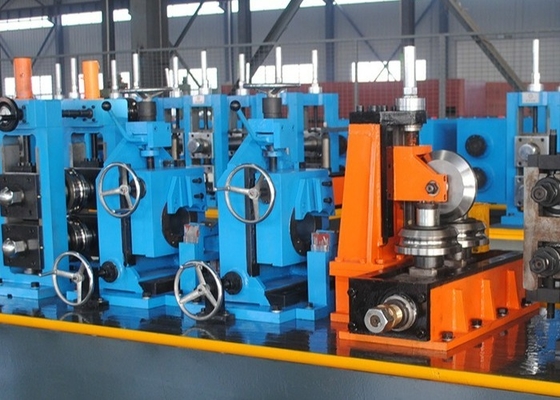

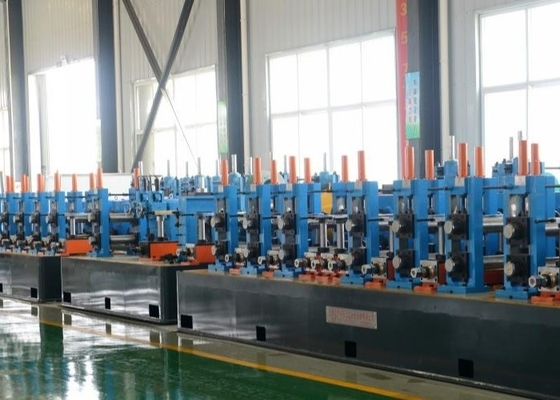

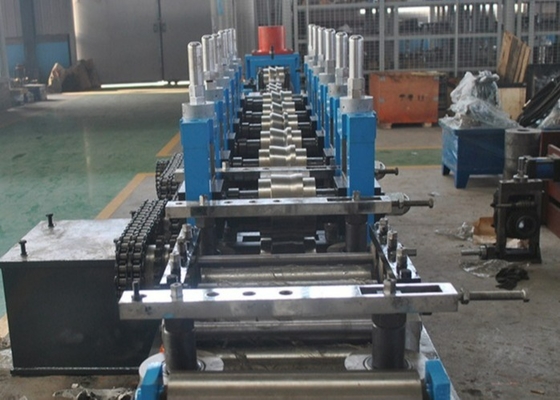

HG 76 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 16 - 76 mm Pipe thickness: 0 . 4 - 2 . 75 mm
⑴ Material Specifications:
|
Conforming to the YB189-64 standard |
|
|
Material |
Low carbon steel and low alloy constructional steel |
|
Mechanical properties |
σb ≤ 380 Mpa,σs ≤ 275 MPa |
|
strip width |
50 ～ 240 mm |
|
strip thickness |
0 . 4 ～ 2 . 75 mm |
|
I.D of Coils |
Φ508mm |
|
O.D of Coils |
φ1800mm |
|
Coil Weight |
≤3.0T |
⑵ Welded Pipe Specification
| Round Pipe Diameter | Φ 16 ～ φ 76 mm |
| pipe thickness | 0 . 4 - 2 . 75 mm |
| Finish pipe length | 6 m - 8 m |
| Cut length accuracy | ± 1 . 5 mm |
| Forming speed | 60 - 120 m/min |
⑶ workshop require : 70 x 6 m , H＞5m
Notice:You can modify it according to the actual length of the workshop
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
