130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine

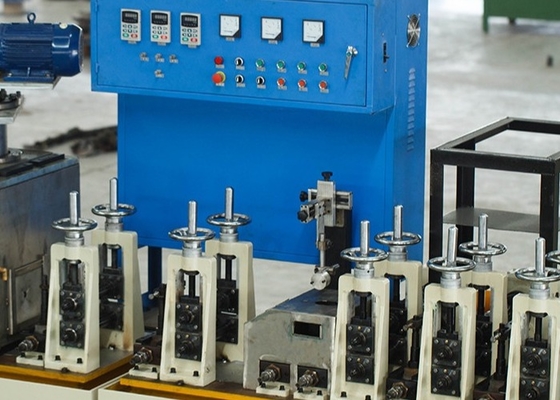

Large Image : 130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 130

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	100 wording days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5 set/year

Contact Now

Detailed Product Description

Production Name:	130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine	Model:	HG 130
Feature:	Full Automatic And High Precision	Other Pipe:	Round Pipe And Rectangular Pipe
Max Size:	40 X 40 - 130 X 130 Mm	Thickness:	1 . 5 - 5 . 0 Mm
Cutting Length:	4 - 6 M	Warranty:	One Year
Key Words:	Square Steel Welded Pipe Making Machine Automatic Tube Mill
Highlight:	130mm dia automatic tube mill , welded square automatic tube mill , 5mm thick tube mill equipment

130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine

I.Equipment Introduction

HG 130 X 5 MM high frequency square Pipe Automatic Tube Mill is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Square pipe size: 40 X 40 - 130 X 130 mm Pipe thickness: 1 . 5 - 5 . 0 mm

II.Main Parameters and Specifications:

Pipe material	Q235
OD of coil	Φ 1000 - 2000 mm
ID of coil	Φ 580 - 620 mm
Width of strip	160 - 520 mm
Thickness of strip	1 . 5 - 5 . 0 mm
Weight of strip	Max 10 Ton
Strip width	160-520mm
Welding thickness	1 . 5 - 5 . 0 mm
Cutting length	4 - 6 m
Forming speed	20 - 40 m / min

Notice:You can modify it according to the actual length of the workshop

III.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

IV.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

V.About Us

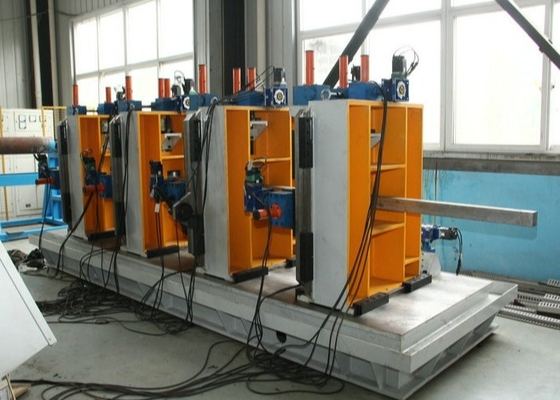

130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine 0

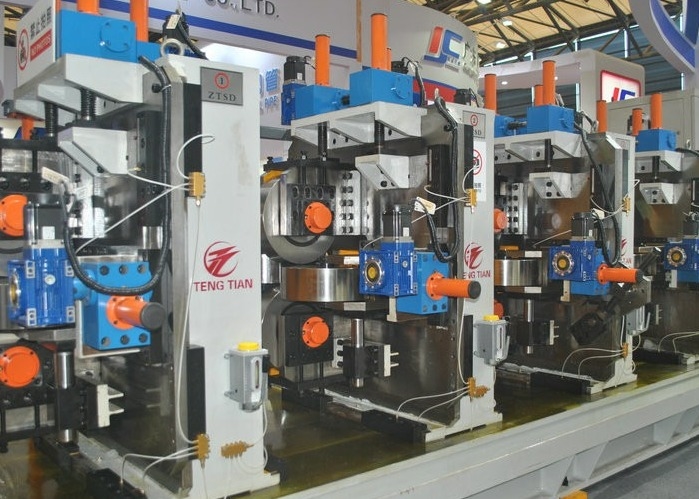

130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine 1
