HG 130 Automatic Tube Mill for Square Steel Welded Pipe 40-130mm

Name: HG 130 Automatic Tube Mill for Square Steel Welded Pipe 40-130mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 130
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 130

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 130

Production Name:

130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine

Model:

HG 130

Feature:

Full Automatic And High Precision

Other Pipe:

Round Pipe And Rectangular Pipe

Max Size:

40 X 40 - 130 X 130 Mm

Thickness:

1 . 5 - 5 . 0 Mm

Cutting Length:

4 - 6 M

Warranty:

One Year

Key Words:

Square Steel Welded Pipe Making Machine Automatic Tube Mill

Highlight:

High Light

Highlight:

130mm dia automatic tube mill

welded square automatic tube mill

5mm thick tube mill equipment

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

130 X 5 Mm Automatic Tube Mill Square Steel Welded Pipe Making Machine

Product Specifications

Attribute	Value
Model	HG 130
Feature	Full automatic and high precision
Pipe Types	Round pipe and Rectangular pipe
Max Size	40 X 40 - 130 X 130 mm
Thickness	1.5 - 5.0 mm
Cutting Length	4 - 6 m
Warranty	One year

Equipment Introduction

The HG 130 X 5 MM high frequency square Pipe Automatic Tube Mill is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from both domestic and international sources, our innovative production line offers an economical yet practical solution for pipe manufacturing.

Square pipe size: 40 X 40 - 130 X 130 mm
Pipe thickness: 1.5 - 5.0 mm

Main Parameters and Specifications

Parameter	Specification
Pipe material	Q235
OD of coil	Φ 1000 - 2000 mm
ID of coil	Φ 580 - 620 mm
Width of strip	160 - 520 mm
Thickness of strip	1.5 - 5.0 mm
Weight of strip	Max 10 Ton
Welding thickness	1.5 - 5.0 mm
Forming speed	20 - 40 m/min

Note: The machine can be modified according to the actual length of your workshop.

Working Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing and cutting
Inspection
Packaging

Quality and Warranty

Our technical service personnel will be on-site for equipment installation, debugging, and maintenance. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues.

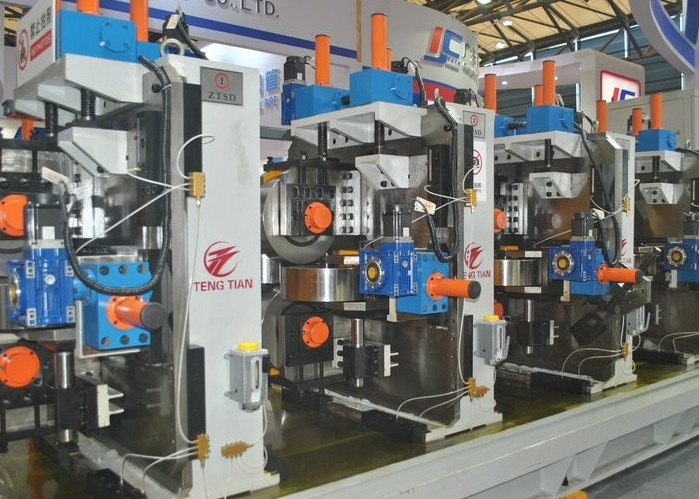

Product Images
