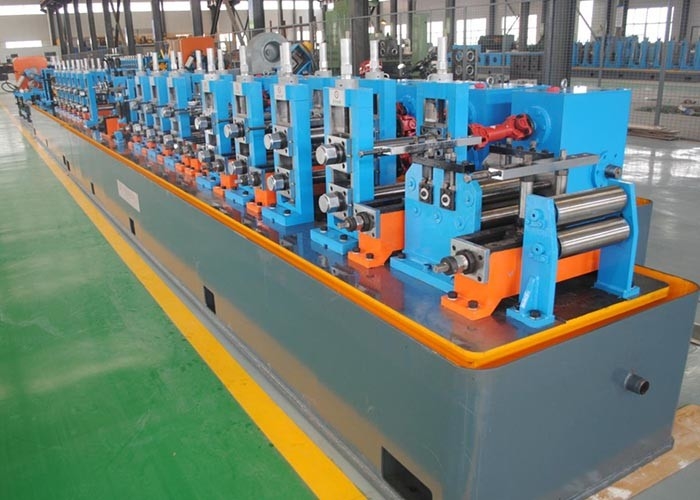

Hf 4mm Thick Tube Mill Machine Equipment / Machine 380v

Large Image : Hf 4mm Thick Tube Mill Machine Equipment / Machine 380v

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG 63*4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$100000 to $1 million
Packaging Details:	Seaworthy packing
Delivery Time:	3 months
Supply Ability:	150 units a year

Contact Now

Detailed Product Description

Product Name:	HG634 Speed 60m/min Dia Round Pipe 25-63.5mm Square 2020-50*50 HF Tube Mill Machine	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Pipe Material:	Carbon Steel	Voltage:	380V
Power(w):	650KW	Forming Speed:	Max 150 M / Min
Square Pipe:	2020 - 5050 Mm	Round Pipe Diameter:	25 - 63.5 Mm
Thickness:	0.8-4mm	Warranty:	1 Year
Keywords:	Tube Mill Machine
Highlight:	4mm thick pipe mill equipment , hf pipe mill equipment , 380v pipe mill machine

**HG634 Speed 150m/min Dia Round Pipe 25-63.5mm Square 2020-50*50mm HF** Tube Mill Machine

Product Information

HG63x4.0 (2.5”)high frequency welded pipe production line is used to manufacture welded steel pipe of Φ25mm-Φ63mm, square pipe 20x20-50x50mm, with 0.8mm-4.0mm of wall thickness. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Model

Serial number	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	main engine(kw)	Power(kw)	area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage

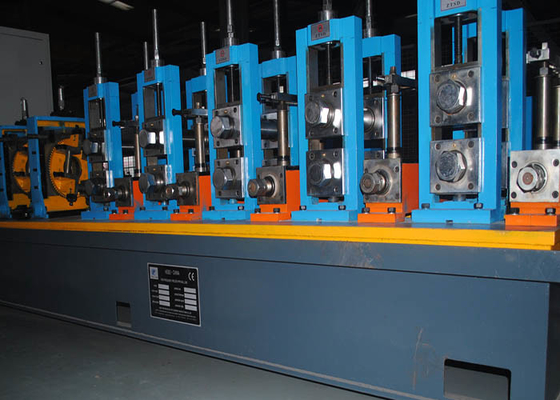

Hf 4mm Thick Tube Mill Machine Equipment / Machine 380v 0

Our Service

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .

About Us

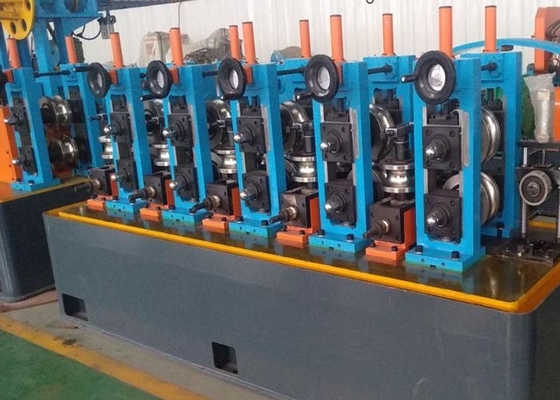

Hf 4mm Thick Tube Mill Machine Equipment / Machine 380v 1
