Round Steel Welded 114 Mm Automatic Tube Mill High Precision

Large Image : Round Steel Welded 114 Mm Automatic Tube Mill High Precision

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 114

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	100 wording days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5 set/year

Contact Now

Detailed Product Description

Mill Name:	Round Steel Welded 114 Mm Automatic Tube Mill High Precision	Model:	HG 114
Feature:	High Precision	Other Pipe:	Square Pipe And Rectangular Pipe
Max Size:	50 - 100 Mm	Thickness:	1 . 0 - 4 . 0 Mm
Cutting Length:	4 - 6 M	Warranty:	One Year
Key Words:	Round Steel Welded Pipe Mill Line Automatic Tube Mill
Highlight:	114 mm pipe mill line , pipe mill line high precision , automatic tube mill high precision

Round Steel Welded 114 Mm Automatic Tube Mill High Precision

I.Equipment Introduction

HG 114 MM high precision round welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 50 - 100 mm Pipe thickness: 1 . 0 - 4 . 0 mm

II.Main Parameters and Specifications:

Pipe material	Low carbon steel and low alloy constructional steel
OD of coil	φ 1000 ～ φ 1600 mm
ID of coil	φ 480 ～ φ 510 mm
Width of strip	160 ～ 320 mm
Thickness of strip	1 . 0 ～ 4 . 0 mm
Weight of strip	≤ 5 T
Welding thickness	1 . 0 - 4 . 0 mm
Cutting length	4 - 6 m
Pipe-cutting Precision	0～3 mm
Forming speed	20 - 60 m / min

Workshop: 8m wide, 100m long, at least 5m high

Notice:You can modify it according to the actual length of the workshop

III.Equipment composition

Decoiler
Straight head and pinch leveling machine
Shear and welder
spiral accumulator

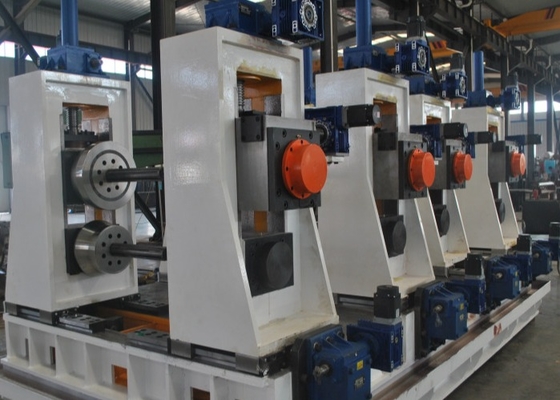

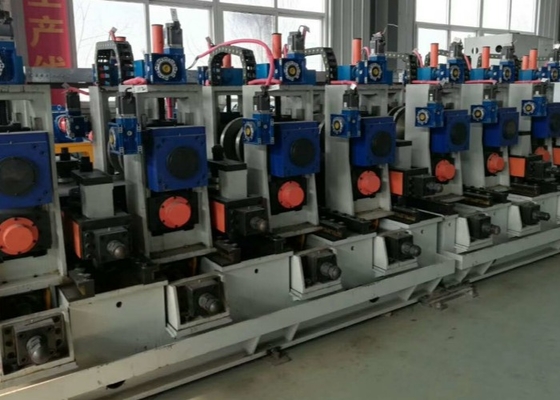

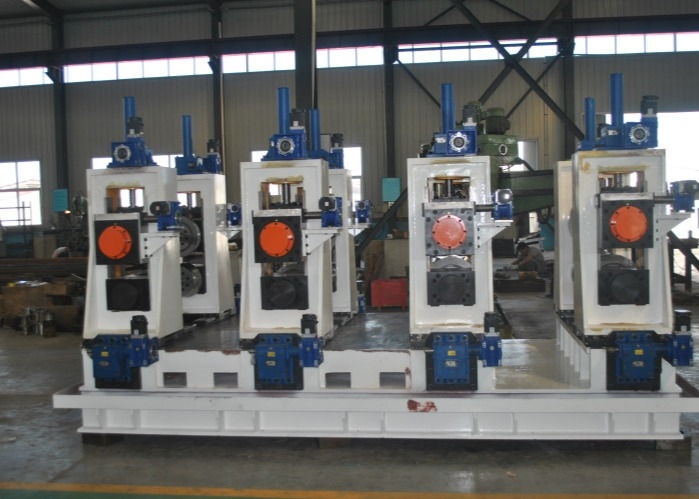

Forming and Sizing Mill
Cold Saw
Run out table
400KW High Frequency solid-state Welder

IV.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
