HG 60 Fast Speed Round Tube Mill Machine 16-63mm

Name: HG 60 Fast Speed Round Tube Mill Machine 16-63mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG 60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG 60

Production Name:

Tube Mill Machine

Forming Method:

FFX Forming Technology

Running Speed:

Max. 120 M / Min

Pipe Shape:

Round

Pipe Diameter:

16 - 63 Mm

Max.Thickness For Round Pipe:

0 . 5 - 2 . 0 Mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Key Words:

Round Shape Tube Mill Machine

Highlight:

High Light

Highlight:

erw fast tube mill machine

60mm tube mill machine

60mm pipe rolling mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

4 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

HG 60 Tube Mill Machine Fast Speed Round Shape ERW

Product Specifications

Attribute	Value
Production Name	Tube Mill Machine
Forming Method	FFX Forming Technology
Running speed	Max. 120 m/min
Pipe shape	Round
Pipe Diameter	16 - 63 mm
Max.Thickness for Round Pipe	0.5 - 2.0 mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting

Product Description

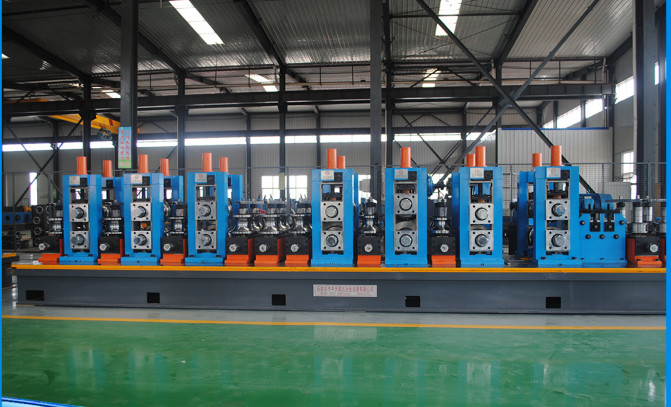

The HG60 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes with superior quality and precision. Incorporating advanced pipe making technology from both domestic and international sources, our innovative production line offers an economical yet practical solution for pipe manufacturing.

Round pipe size: 16 - 63 mm

Pipe thickness: 0.5 - 2.0 mm

Main Parameters and Specifications

Material: Q235

Speed: Max. 120m/min

Cutting Length: 4 - 6m

Precision: ±3mm

Drive motor: 11kw servo motor (YASKAWA, JAPAN)

Cutting motor: 7.5KW variable frequency motor

Feeding motor: 2.9kw servo motor

Production Range

Round Pipe: 16 - 63 mm diameter

Thickness: 0.5 - 2.0 mm

Additional Specifications

Line Speed: Max. 120 m/min

Tube Length: 4 - 6 m

Cutting Accuracy: ±2 mm

Size of whole line: about 70 × 6 m

Line Composition

Double cone uncoiler
Automatic Shear and welder
Spiral horizontal accumulator
Forming and Sizing Mill (including forming stand, weld seam guide stand, squeeze roll stand, welding bead cutter, water cooling unit, sizing stand, and gear box)
Cold saw
Run out table

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our machines are exported to over 30 countries worldwide including Turkey, Egypt, Morocco, Kazakhstan, and Mexico, recognized for their high quality, reliable performance, and long service life.

For more information about our HG 60 Tube Mill Machine, please contact our sales team for assistance.
