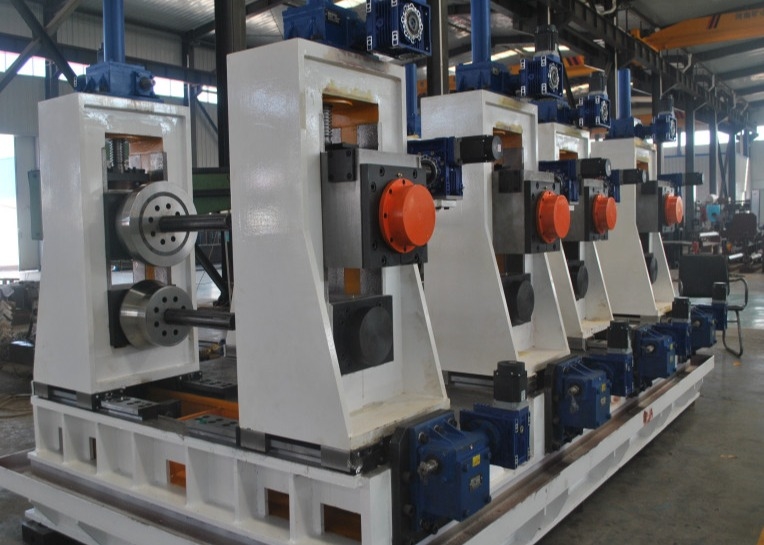

High Accuracy HRC Automatic Tube Mill for Steel Pipe Production

Name: High Accuracy HRC Automatic Tube Mill for Steel Pipe Production
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 150F
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	150F

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

150F

Production Name:

High Accuracy Building Materials Steel Pipe Automatic Tube Mill

Applicable Materials:

Q345

Cutting Method:

Cold Saw

Product Name:

Full Automatic Tube Mill

Speed:

75 M/min

Equipment Specification:

Customer Specified

Forming Method:

Roller Squeeze

Warranty:

One Year

Material:

Low Carbon HRC

Key Words:

Automatic Tube Mill

Highlight:

High Light

Highlight:

high accuracy automatic tube mill

hrc automatic tube mill

hrc tube mill machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Accuracy HRC Automatic Tube Mill for Building Materials Steel Pipe

Product Specifications

Attribute	Value
Production Name	High Accuracy Building Materials Steel Pipe Automatic Tube Mill
Applicable materials	Q345
Cutting method	Cold saw
Product name	Full Automatic Tube Mill
Speed	75 m/min
Equipment Specification	Customer specified
Forming method	Roller Squeeze
Warranty	One year
Material	Low carbon HRC

Applications

Oil & Gas Pipes
Heating Pipe
Low-pressure Process Pipeline
Low Pressure Fire Fighting Pipeline
Sewage Pipes
Steel Scaffolding Pipe
Wire and Cable Protection Pipe
Structural Support Steel Pipe
Industrial Steel Pipes
Decoration Pipe
Water Pipe
Building pipe

Technical Overview

Feature	Specification
After-sales Service	Engineers available to service machinery overseas
Warranty	1 year
Certification	ISO9001:2010
Application	Decoration, Furniture, Household, Hand railing, Industrial area
Pipe Material	Stainless steel / Carbon steel / Iron / Aluminum / Copper/ Galvanized
Type	Pipe mill
Diameter	9-51mm
Thickness	0.2-1.5mm
Horizontal shaft	40mm
Vertical shaft	25mm
Pipe shape	Round / Square / Rectangle
Welding type	H-F welding

ERW Tube Mill Models

No.	Model	Size	Thickness (mm)	Roll Weight (mm)	Forming Speed (m/min)	Installed Capacity (kw)
1	200	20x20-50x50	1-3	5	20-80	900
2	600	60x60-150x150	2-7	10	20-60	1400
3	800	80x80-200x200	2.5-10	15	20-40	1600
4	1050	100x100-250x250	3-12.7	20	15-30	2600
5	1250	120x120-300x300	3-14	30	10-25	3200
6	1400	150x150-350x350	4-14	30	8-20	3600
7	1600	200x200-400x400	4-16	30	8-15	3900
8	2000	250x250-500x500	4-20	40	8-15	4200

Equipment Components

No.	Component
1	Winding and unwinding reels
2	Straightener & leveler
3	Automatic shear and welding
4	Feeder and punching machine
5	Automatic forming and sizing part
6	Cutting machine
7	Via rollers
8	Automatic packing and palletizing
