| Machine Name: | Galvanized Tube Mill Machine | Product: | Round Pipe And Square Pipe |
|---|---|---|---|
| Feature: | PLC Control | Material: | Carbon Steel |
| Other Pipe: | Round Pipe | Max Size: | 350mm |
| Thickness: | 8mm | Length: | 6-12m |
| Rollers: | Include | Model: | 350 |
| Key Words: | Tube Mill Machine | ||
| High Light: | 350mm high frequency welding tube mill,api high frequency welding tube mill,precision tubemill |
||

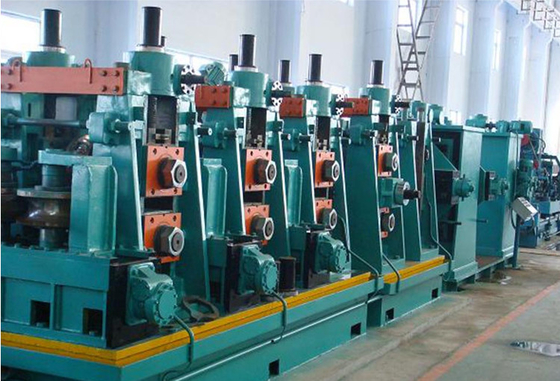

Machine General Introduction
This tube mill machine is designed to produce welded steel pipes ,API round pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
this high precision high frequency welded pipe production line is mainly to product the Round pipe size φ180-350mm,thickness is from 3-8mm.This production line each unit equipment, full use of the domestic and foreign similar equipment, innovative design, full control with PC or computer control, advanced technology, convenient operation and maintenance, and reached the international level in the early ninety s, for the domestic leading level.
(1)Material Specifications: | |
Standard | Internatioanl standard tube mill machine |
Material | carbon steel |
Mechanical properties | σb≤520Mpa,σs≤365MPa |
Strip Width | 600-1200mm |
Strip Thickness: | 3-8mm |
Inner Diameter of Coils | Φ508mm |
Outer Diameter of Coils | Φ1300～φ2000mm |
Coil Weight | ≤12T |
(2)Pipe Specification | |
Pipe Diameter | Round pipe:φ180-350mm |
Length | 6-12m |
Pipe-cutting Precision | 0-6mm |
Forming Speed | max 80m/min for 8 mm thickness |
(3)The buyer should self-supply | |
Work shop | 95x12m, H＞5m(crane to ground) |
Power | Approx.850KW 380V/60Hz/3phases |
Circulation Cooling Water(whole system) | Flow:30+30 CBM |
Compressed Air | Flow:5m3/min |
Cable | All cable outside of my machine, you buy after machine fix location. |

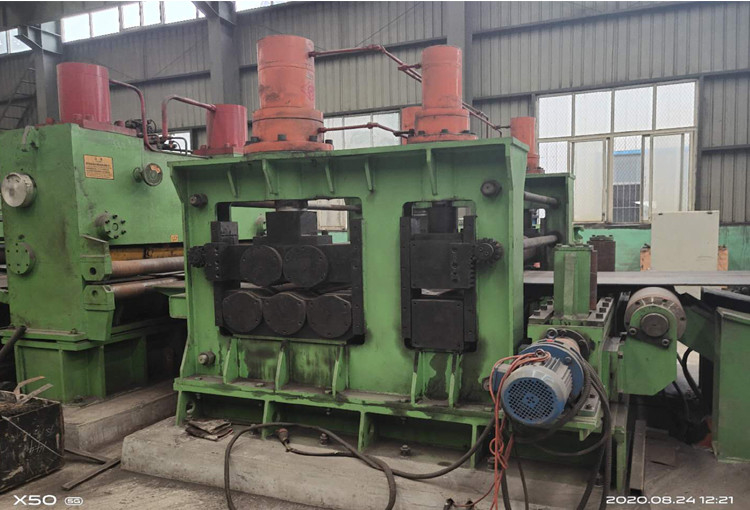

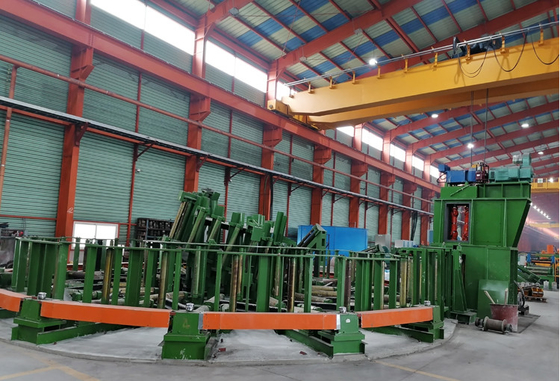

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
