200x200mm Automatic Tube Mill for Square Pipe Production

Name: 200x200mm Automatic Tube Mill for Square Pipe Production
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 200x200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	200x200

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

200x200

Machine Name:

Automatic Tube Mill

Product:

Square Pipe

Feature:

PLC Control

Material:

Carbon Steel

Other Pipe:

Only Square Pipe

Max Size:

200X200mm

Thickness:

3mm

Length:

6-12m

Rollers:

Include

Model:

200X200

Key Words:

Automatic Tube Mill

Highlight:

High Light

Highlight:

200x200mm automatic tube mill

galvanized steel automatic tube mill

200x200mm square pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller

Key Features

Produces square pipes from 100x100mm to 200x200mm
Handles material thickness from 1-3mm
PLC control system for precision operation
Maximum forming speed of 100m/min for 1mm thickness
Includes complete set of rollers
Produces pipes with length of 6-12m

Technical Specifications

Parameter	Specification
Machine Type	Automatic tube mill
Product Type	Square pipe
Material	Carbon steel
Maximum Size	200x200mm
Thickness Range	1-3mm
Pipe Length	6-12m
Strip Width	400-800mm
Forming Speed	Up to 100m/min (for 1mm thickness)

Production Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling
Precision sizing
Cutting to length
Inspection
Packaging

Installation Requirements

Workshop: 95x12m, Height >5m (with crane)
Power: Approx. 850KW 380V/60Hz/3phases
Cooling Water: Flow: 30+30 CBM, Pool Volume: 40m³
Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²

Warranty & Service

Our technical team provides on-site installation, commissioning, and training. The equipment comes with a 12-month warranty from arrival date. We provide free repair or replacement for any quality issues during normal operation.

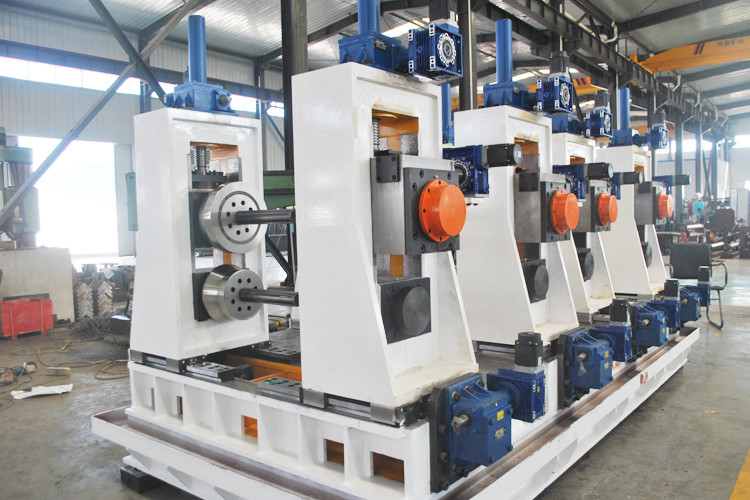

Product Images
