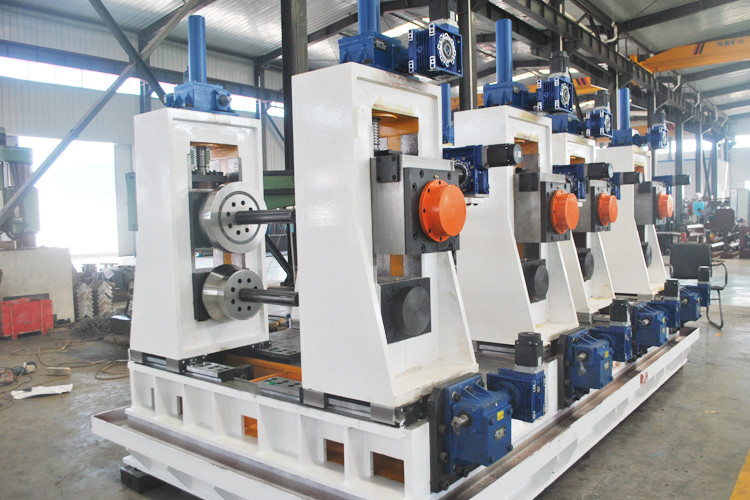

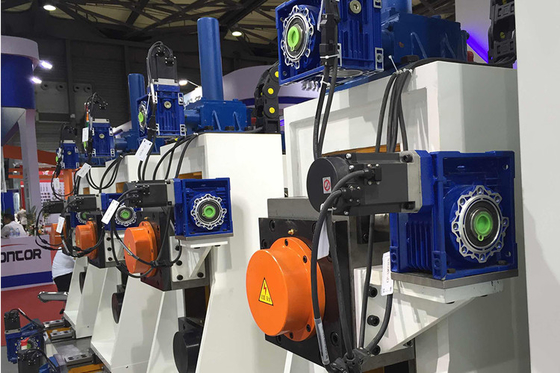

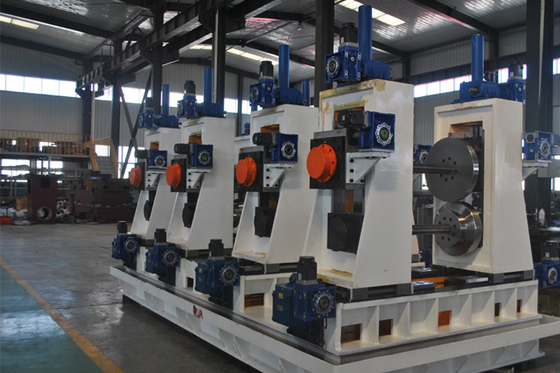

200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller

200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller
200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller 200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller 200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller

Large Image :  200x200mm Automatic Tube Mill Galvanized Steel Pipe Making One Set Roller

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 200x200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 90 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Machine Name: Automatic Tube Mill Product: Square Pipe
Feature: PLC Control Material: Carbon Steel
Other Pipe: Only Square Pipe Max Size: 200X200mm
Thickness: 3mm Length: 6-12m
Rollers: Include Model: 200X200
Key Words: Automatic Tube Mill
High Light:

200x200mm automatic tube mill

,

galvanized steel automatic tube mill

,

200x200mm square pipe mill

200x200mm Galvanized steel pipe one set roller Automatic Tube Mill

Automatic tube mill Machine General Introduction

This Automatic Tube Mill machine is designed to produce welded steel pipes by automatic method.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
this high precision high frequency welded pipe production line is mainly to product the square pipe size 100x100-200x200mm,thickness is from 1-3mm.This production line each unit equipment, full use of the domestic and foreign similar equipment, innovative design, full control with PC or computer control, advanced technology, convenient operation and maintenance, and reached the international level in the early ninety s, for the domestic leading level.

Main Parameters and Specifications for automatic tube mill



(1)Material Specifications:

Standard

Internatioanl standard tube mill machine

Material

carbon steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

400-800mm

Strip Thickness:

1-3mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤8T

(2)Pipe Specification

Pipe Diameter

Square pipe:100x100-200x200mm
Thickness:1-3mm

Length

6-12m

Pipe-cutting Precision

0-6mm

Forming Speed

max 100m/min for 1 mm thickness

(3)The buyer should self-supply

Work shop

95x12m, H>5m(crane to ground)

Power

Approx.850KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.



Working Process for automatic tube mill machine



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



Quality and After-sale Service Warranty for automatic tube mill machine installation and commissioning


this automatic tube mill is been arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
