Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick

Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick
Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick

Large Image :  Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick

Product Details:
Place of Origin: CHINA
Brand Name: Hebei TengTian
Certification: CE, ISO9001
Model Number: F200x200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 180 days after sign contract
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 Sets/Year
Detailed Product Description
Product Name: Automatic Tube Mill Pipe Thickness: 4-12mm
Pipe Size: 80*80-200*200mm Pipe Material: Carbon Steel,G.I Steel
Feature: Full Automatic Key Words: Tube Mill For Sale
High Light:

200x200 automatic tube mill

,

carbon steel square automatic tube mill

,

12mm thick square tube mill

New Carbon Steel Square Tube Mill For Sale Automatic Tube Mill



1. Introduction

this type machine adopts one set of combined mould, producing the different specifications of the tube, only need to adjust,no need to change,the roller savings rate at above 90%,thus reducing the cost of the roller and improve the efficiency,use the motor automatic adjustment,thus decreasing the number of workers,reduce the labor costs,decreased the workers labor intensity, improved the workers working environment

The equipment operation is simple,just need to know the size and the wall thickness of the tubes in the production,then input it to the interface,it will make adjustment automatically, thus lower levels of debugging personnel's technical requirements.

With automatic adjustment, decreased the input of tools and damage to equipment when change the roll, improve the service life of the equipment.

2.  Product parameter specifications

Standard SPHC,Q235,Q345
Material Low carbon steel and low alloy constructional steel
Mechanical properties σb≤520Mpa,σs≤365MPa
Pipe size 80x80-200x200mm
Pipe thickness 4.0-12.0mm
pipe length 6-14meter
Pipe-cutting Precision 0-6mm
Work shop 120x8m, H>6m(crane to ground)
Power Approx.500KW 380V/50Hz/3phases





3.  machine model



model pipe size pipe thickness
LW200 30X30-50X50mm 1.0-3.0mm
LW400 50x50-100x100mm 1.0-4.0mm
LW600 60x60-150x150mm 3-10mm
LW800 80x80-200x200mm 4-12mm
LW1000 100x100-250x250mm 4-16mm
LW1200 120x120-300x300mm 4-16mm
LW1600 200x200-400x400mm

5-14mm

LW2000 250x250-500x500mm 5-20mm





4.Quality and Service Warranty



After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year

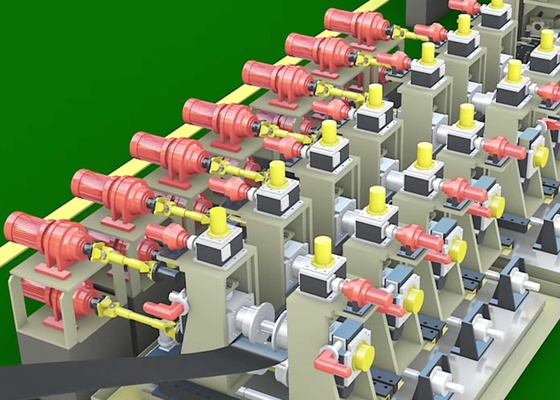

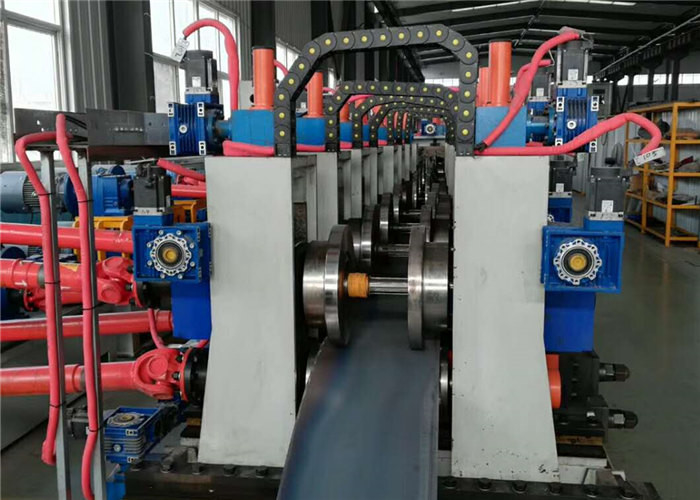

Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick 0Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick 1

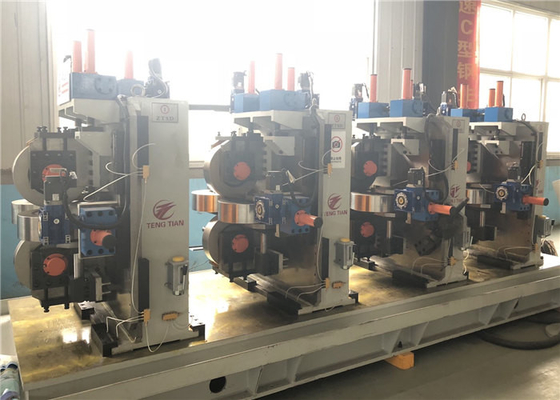

Carbon Steel Square 200x200 Automatic Tube Mill For 12mm Thick 2
