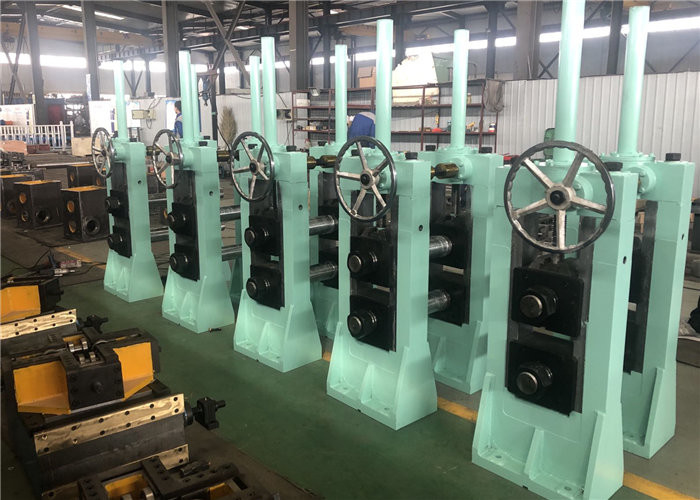

165mm Tube Mill Machine for Round Square Tubes 7mm Thick
165mm Tube Mill Machine for Round Square Tubes 7mm Thick
  • 165mm Tube Mill Machine for Round Square Tubes 7mm Thick
  • 165mm Tube Mill Machine for Round Square Tubes 7mm Thick
  • 165mm Tube Mill Machine for Round Square Tubes 7mm Thick

165mm Tube Mill Machine for Round Square Tubes 7mm Thick

Product Details:
Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG165mm
Detail Information
Place of Origin:
CHINA
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG165mm
Product Name:
Tube Mill Machine
Production:
Round Pipe,square Tube,L T Z Pipe
Warranty:
One Year
Max Size:
165mm
Max Thickness:
7mm
Speed:
20-50m/min
Rollers:
Cr12mov
Key Words:
Tube Mill Machine
Highlight:

High Light

Highlight:

130x130mm tube rolling mill

,

square tube rolling mill

,

precision pipe mill equipment

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
180 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
130x130mm Square Round Tube Rolling Mill 7mm Thick Tube Mill Machine
Product Specifications
Attribute Value
Product Name Tube Mill Machine
Production Round pipe, square tube, L T Z pipe
Warranty One year
Max Size 165mm
Max Thickness 7mm
Speed 20-50m/min
Rollers Cr12mov
Machine Overview

This tube mill machine is designed to produce high-quality welded steel pipes including round pipes, square pipes, and deformed pipes (L T Z pipes). Featuring advanced roll pass design, the production line delivers precision machining and high-quality assembly. Available in various configurations including normal, semi-automatic, full-automatic, and high-precision models to meet diverse customer requirements.

The carbon steel tube mill can produce pipes ranging from 76mm to 165mm in diameter with thickness from 3.0-7.0mm, including square and rectangular tubes. Custom designs are available to meet specific customer needs.

Technical Specifications
Standard SPHC, Q235, Q345, Low carbon steel
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Pipe Size 76-165mm
Pipe Thickness 3.0-7.0mm
Pipe Length 6-14 meter
Pipe-cutting Precision 0-6mm
Workshop Requirements 120x8m, H＞6m (crane to ground)
Power Approx. 800KW 380V/50Hz/3phases
Available Models
Model Size Range Thickness Production Speed
HG20 8~20mm 0.3-1mm 30-120m/min
HG32 12~32mm 0.3-2.0mm 30-120m/min
HG50 17~50mm 0.8-2.5mm 30-110m/min
HG60 17~60mm 0.8-3mm 30-100m/min
HG76 20~76mm 1-3mm 30-100m/min
HG89 30~89mm 1-4mm 30-80m/min
HG114 50~114mm 1.5-5.0mm 30-60m/min
HG165 76~165mm 3-7mm 30-50m/min
HG219 114~219mm 4-8mm 20-40m/min
HG273 165~273mm 4-10mm 15-30m/min
HG325 219~325mm 4-12mm 10-30m/min
HG426 219~426mm 4-16mm 8-25m/min
HG508 273~508mm 4-20mm 8-20m/min
Production Process
  1. Strip steel to coil
  2. Uncoiler
  3. Shear welder
  4. Storage material unit
  5. Forming, welding, cooling, accurate pipe diameter sizing
  6. Accurate pipe length sizing and cutting
  7. Inspection
  8. Packaging
Quality Assurance & Service

Our technical service personnel will be on-site for equipment installation, debugging, and maintenance. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that prevent normal operation.

165mm Tube Mill Machine for Round Square Tubes 7mm Thick 0 165mm Tube Mill Machine for Round Square Tubes 7mm Thick 1
