20mm High Speed Tube Mill Machine for Carbon Steel Pipe Forming

Name: 20mm High Speed Tube Mill Machine for Carbon Steel Pipe Forming
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG20mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG20mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG20mm

Product Name:

Tube Mill Machine

Production:

Round Pipe,square Tube,L T Z Pipe

Warranty:

One Year

Max Size:

20mm

Max Thickness:

1.0mm

Speed:

50-140m/min

Rollers:

Cr12mov

Key Words:

Steel Pipe Forming Machine

Highlight:

High Light

Highlight:

20mm tube mill machine

blue tube mill machine

blue tube mill equipment

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

180 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

High Speed Small Size 20mm Tube Mill Machine Carbon Steel Pipe Forming

Product Specifications

Attribute	Value
Product Name	Tube Mill Machine
Production	Round Pipe, Square Tube, L T Z Pipe
Warranty	One Year
Max Size	20mm
Max Thickness	1.0mm
Speed	50-140m/min
Rollers	Cr12mov

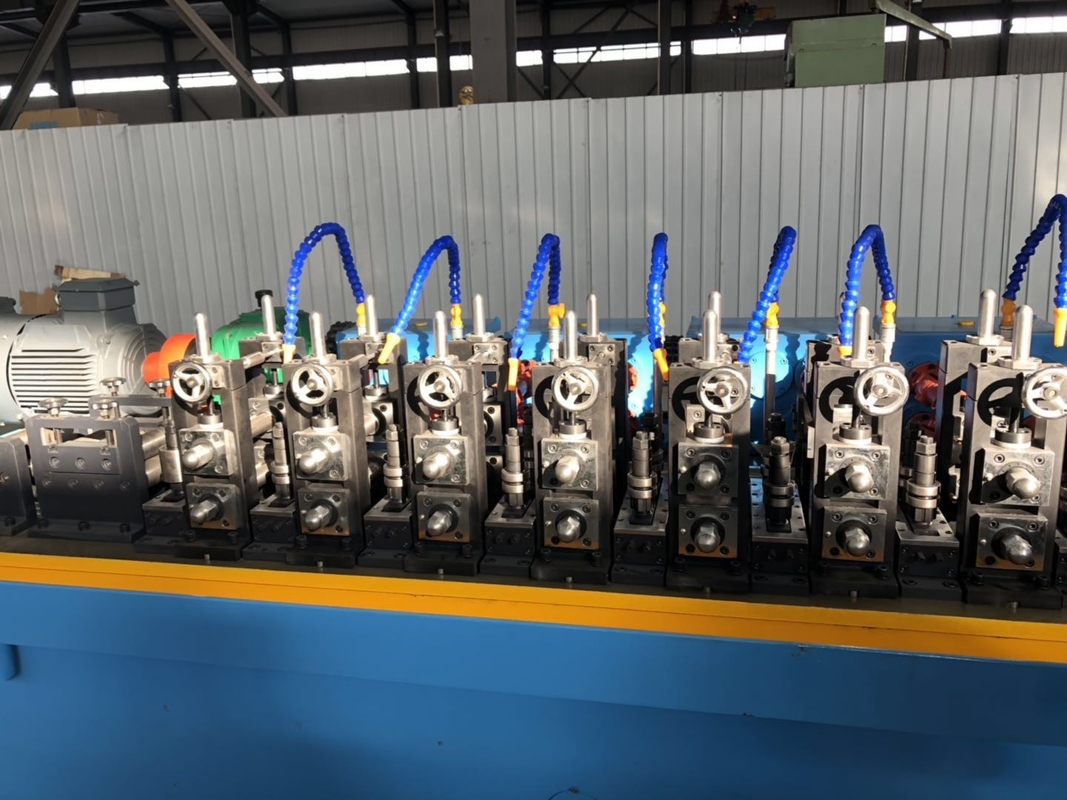

Machine Overview

The tube mill machine is designed to produce welded steel pipes, including round pipe, square pipe, and deformed pipe (LTZ pipe). Featuring roll pass design, this production line manufactures welded steel pipes with excellent quality machining and high precision assembly. Available in different types (normal, full automatic, semi-automatic, high precision) to meet various customer requirements.

Technical Specifications

Standard: Q235, Q345
Material: Low carbon steel and low alloy constructional steel, GI steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Pipe size: 8-20mm
Pipe thickness: 0.4-1.0mm
Pipe length: 4-14 meter
Pipe-cutting Precision: 0-6mm
Work shop: 50x5m, H＞6m (crane to ground)
Power: Approx. 400KW 380V/50Hz/3phases

Available Models

Model	Size Range	Thickness	Production Speed
HG20	8~20mm	0.4-1mm	30-140m/min
HG32	12~32mm	0.3-2.0mm	30-120m/min
HG50	17~50mm	0.8-2.5mm	30-110m/min
HG60	17~60mm	0.8-3mm	30-100m/min
HG76	20~76mm	1-3mm	30-100m/min
HG89	30~89mm	1-4mm	30-80m/min
HG114	50~114mm	1.5-5.0mm	30-60m/min
HG165	76~165mm	3-7mm	30-50m/min
HG219	114~219mm	4-8mm	20-40m/min
HG273	165~273mm	4-10mm	15-30m/min
HG325	219~325mm	4-12mm	10-30m/min
HG426	219~426mm	4-16mm	8-25m/min
HG508	273~508mm	4-20mm	8-20m/min

Working Process

Strip steel to coil → uncoiler → shear welder → storage material unit → formed, welding, cooling, accurate pipe diameter size → accurate pipe length size, cutting → inspection → package

Quality Assurance & Service

Our technical personnel will be on-site for equipment debugging, maintenance, and operation training. We provide a 12-month warranty from the date of equipment arrival. Under normal operating conditions, we offer free repair or replacement for any quality-related issues.
