High Frequency Welded Pipe Mill For Round Carbon Steel 89mm

Name: High Frequency Welded Pipe Mill For Round Carbon Steel 89mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 89

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 89

Product Name:

High Frequency Welded Pipe Mill For Round Carbon Steel 89mm

Max Size:

45 - 102 Mm

Thickness:

1.0 - 4.0 Mm

Length:

Warranty:

One Year

Pipe Material:

Carbon Steel

Pipe Shape:

Round

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

89mm high frequency welded pipe mill

alloy high frequency welded pipe mill

89mm high frequency welding tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Carbon Steel 89 Mm Round Welded Pipe Manufacturing High Frequency Welded Pipe Mill

1.Machine General Introduction

The high-frequency round welded pipe production line is used to produce welded pipes with a diameter of Φ 45 - Φ 102 mm and the wall thickness of 1 . 0 - 4 . 0 mm. The equipment has high precision and good stability. The main equipment is processed by CNC machining center to ensure the accuracy of each part, so as to ensure the accuracy of the whole machine and ensure product quality.

2.Main Parameters and Specifications:

⑴ Material Specifications :

Material	Low carbon steel and low alloy constructional steel
strip width	160 - 320 mm
strip thickness	1 . 0 - 4 . 0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	6 T

⑵ Welded Pipe Specification :

Round Pipe Diameter	Φ 45 ～ φ 102 mm
pipe thickness	1 . 0 - 4 . 0 mm
Finish pipe length	6 m
Cut length accuracy	± 3 mm
Forming speed	20 - 60 m / min

⑶ workshop require : 6 m wide, 80 m long, at least 5m high from Ceiling Rails to Ground.

Notice:You can modify it according to the actual length of the workshop

3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

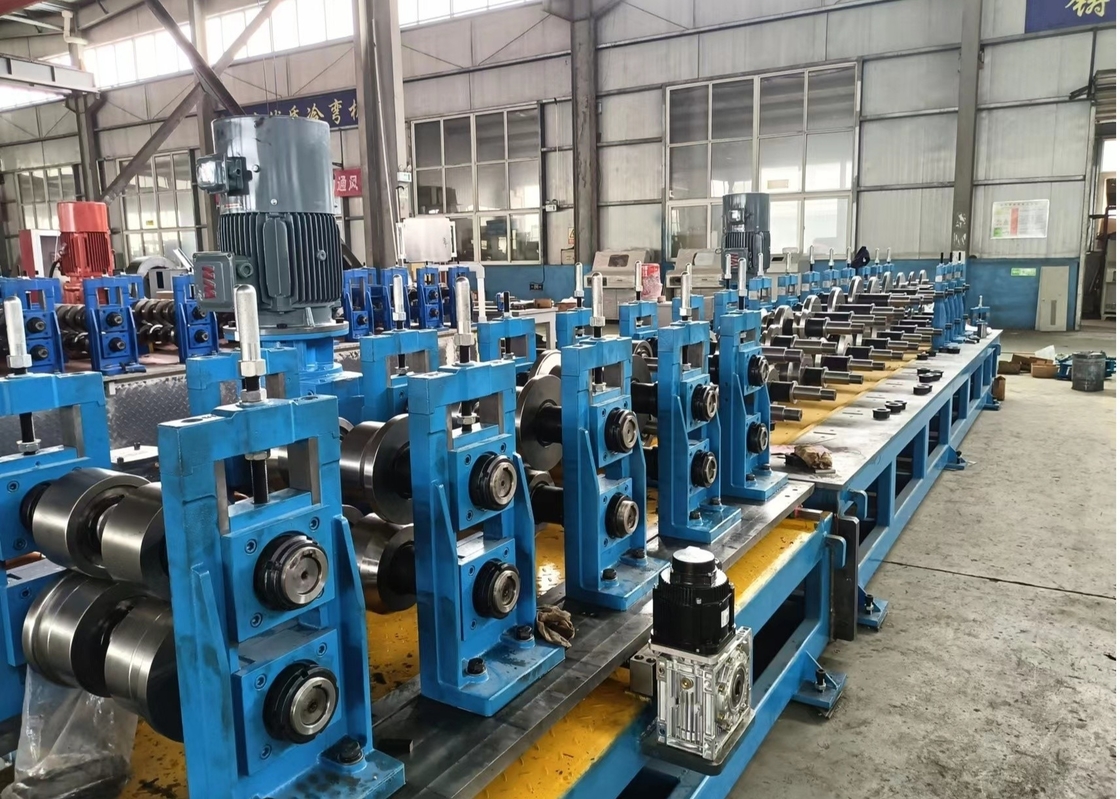

High Frequency Welded Pipe Mill For Round Carbon Steel 89mm 0

High Frequency Welded Pipe Mill For Round Carbon Steel 89mm 1
