High Frequency Welded Pipe Mill For Round Carbon Steel 89mm

Large Image : High Frequency Welded Pipe Mill For Round Carbon Steel 89mm

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 89

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	100 wording days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5 set/year

Contact Now

Detailed Product Description

Product Name:	High Frequency Welded Pipe Mill For Round Carbon Steel 89mm	Max Size:	45 - 102 Mm
Thickness:	1.0 - 4.0 Mm	Length:	6m
Warranty:	One Year	Pipe Material:	Carbon Steel
Pipe Shape:	Round	Key Words:	High Frequency Welded Pipe Mill
Highlight:	89mm high frequency welded pipe mill , alloy high frequency welded pipe mill , 89mm high frequency welding tube mill

Carbon Steel 89 Mm Round Welded Pipe Manufacturing High Frequency Welded Pipe Mill

1.Machine General Introduction

The high-frequency round welded pipe production line is used to produce welded pipes with a diameter of Φ 45 - Φ 102 mm and the wall thickness of 1 . 0 - 4 . 0 mm. The equipment has high precision and good stability. The main equipment is processed by CNC machining center to ensure the accuracy of each part, so as to ensure the accuracy of the whole machine and ensure product quality.

2.Main Parameters and Specifications:

⑴ Material Specifications :

Material	Low carbon steel and low alloy constructional steel
strip width	160 - 320 mm
strip thickness	1 . 0 - 4 . 0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	6 T

⑵ Welded Pipe Specification :

Round Pipe Diameter	Φ 45 ～ φ 102 mm
pipe thickness	1 . 0 - 4 . 0 mm
Finish pipe length	6 m
Cut length accuracy	± 3 mm
Forming speed	20 - 60 m / min

⑶ workshop require : 6 m wide, 80 m long, at least 5m high from Ceiling Rails to Ground.

Notice:You can modify it according to the actual length of the workshop

3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

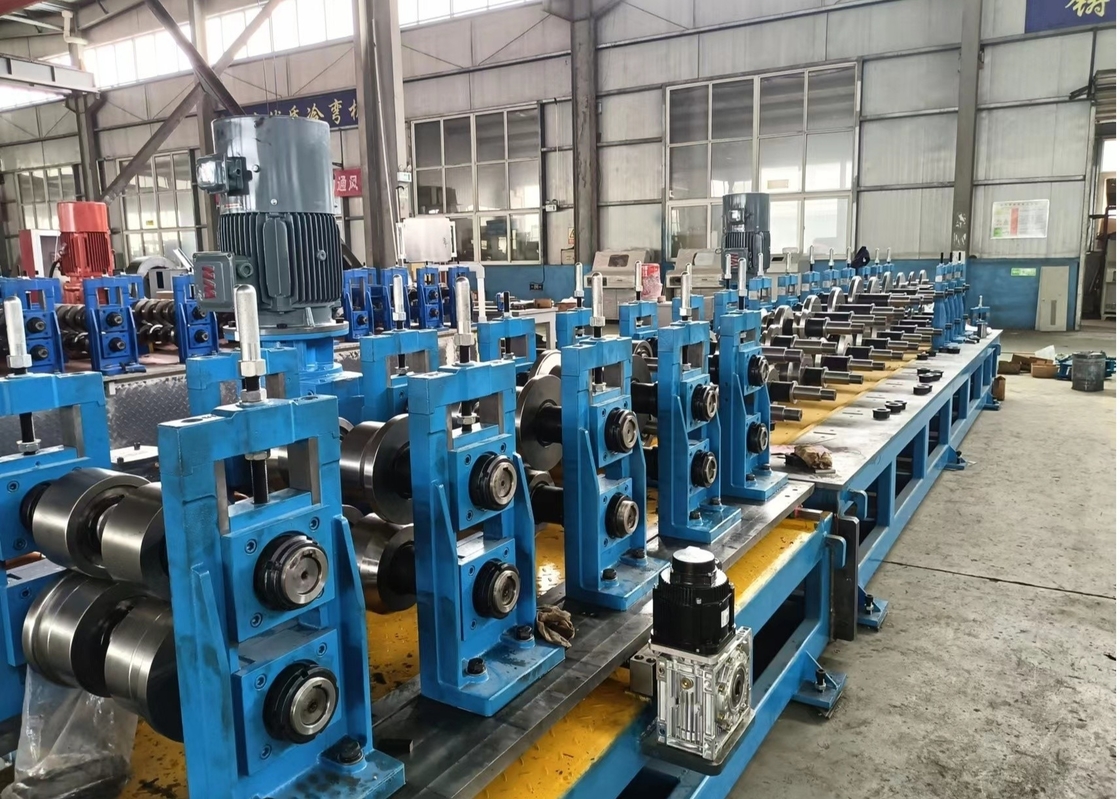

High Frequency Welded Pipe Mill For Round Carbon Steel 89mm 0
