High Frequency Welded Pipe Mill 300x300x16mm Galvanized Steel Square
| Attribute |
Value |
| Machine Name |
High Frequency Welded Pipe Mill 300x300x16mm High Frequency Welded Pipe Mill Galvanized Steel Square |
| Product |
Square pipe |
| Feature |
PLC control |
| Material |
Galvanized steel |
| Other pipe |
Only square pipe |
| Max size |
300x300mm |
| Thickness |
16mm |
| Length |
6-12m |
| Rollers |
Include |
| Model |
F300X300 |

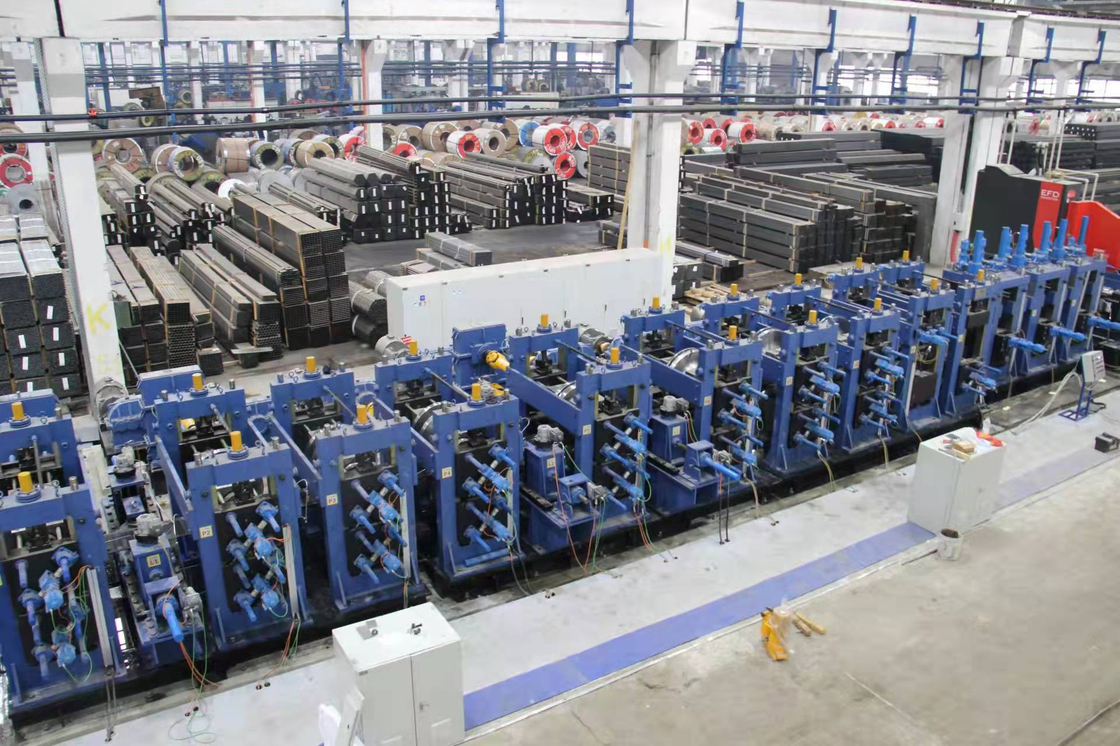

300x300x16mm Galvanized Steel Square Pipe High Frequency Welded Pipe Mill
Machine General Introduction
The F300x300 Auto high frequency welded pipe production line is designed to produce square pipes (100x100-300x300mm), rectangular pipes (100x150-100x300mm), with thickness ranging from 5-16mm. This line can also produce round pipes of the same size by changing the stand and roller. Featuring advanced technology with full PLC control, this production line offers innovative design, convenient operation and maintenance, meeting international standards.
Main Parameters and Specifications
Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 400-1200mm
Strip Thickness: 5-16mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤25T
Pipe Specification
Pipe Diameter: Square pipe: 100x100-300x300mm, Thickness: 5-16mm
Length: 6-12m
Pipe-cutting Precision: 0-6mm
Forming Speed: max 100m/min for 1 mm thickness
Buyer Self-Supply Requirements
Workshop: 95x12m, H＞5m (crane to ground)
Power: Approx.2500KW 380V/60Hz/3phases
Circulation Cooling Water: Flow:30+30 CBM, Pool Volume:40m³
Compressed Air: Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be supplied by buyer after machine installation
Working Process
Strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → forming, welding, cooling, accurate pipe diameter size → accurate pipe length size, cutting → inspection → package
Quality and After-sale Service Warranty
Our technical personnel will be on-site for equipment installation, commissioning, and maintenance training. When operated under normal conditions, the equipment comes with a 12-month warranty from the date of arrival. During this period, we provide free repair or replacement for any quality-related issues that affect normal operation.
