60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm
60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm
  • 60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm
  • 60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm
  • 60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm

60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG 114
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
HG 114
Product Name:
High Frequency Welded Pipe Mill 60m/Min Hf Straight Seam Carbon Steel Pipe Mill Manufacturing Machine
Feature:
High Frequency
Other Pipe:
Round Pipe And Square Pipe
Max Size:
50 - 101 Mm
Thickness:
1 . 0 - 4 . 0 Mm
Length:
4 - 6 M
Rollers:
Include
Warranty:
One Year
Key Words:
High Frequency Welded Pipe Tube Mill
Highlight:

High Light

Highlight:

60m/min carbon steel pipe mill

,

high frequency carbon steel pipe mill

,

60m/min high frequency welding tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
100 wording days
Payment Terms:
L/C,D/A,D/P,T/T
Supply Ability:
5 set/year
Product Description
High Frequency Welded Pipe Mill 60m/Min HF Straight Seam Carbon Steel Pipe Manufacturing Machine
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill 60m/Min HF Straight Seam Carbon Steel Pipe Mill Manufacturing Machine
Feature High Frequency
Pipe Types Round pipe and square pipe
Maximum Size 50 - 101 mm
Thickness 1.0 - 4.0 mm
Length 4 - 6 m
Rollers Included
Warranty One year
Machine Overview

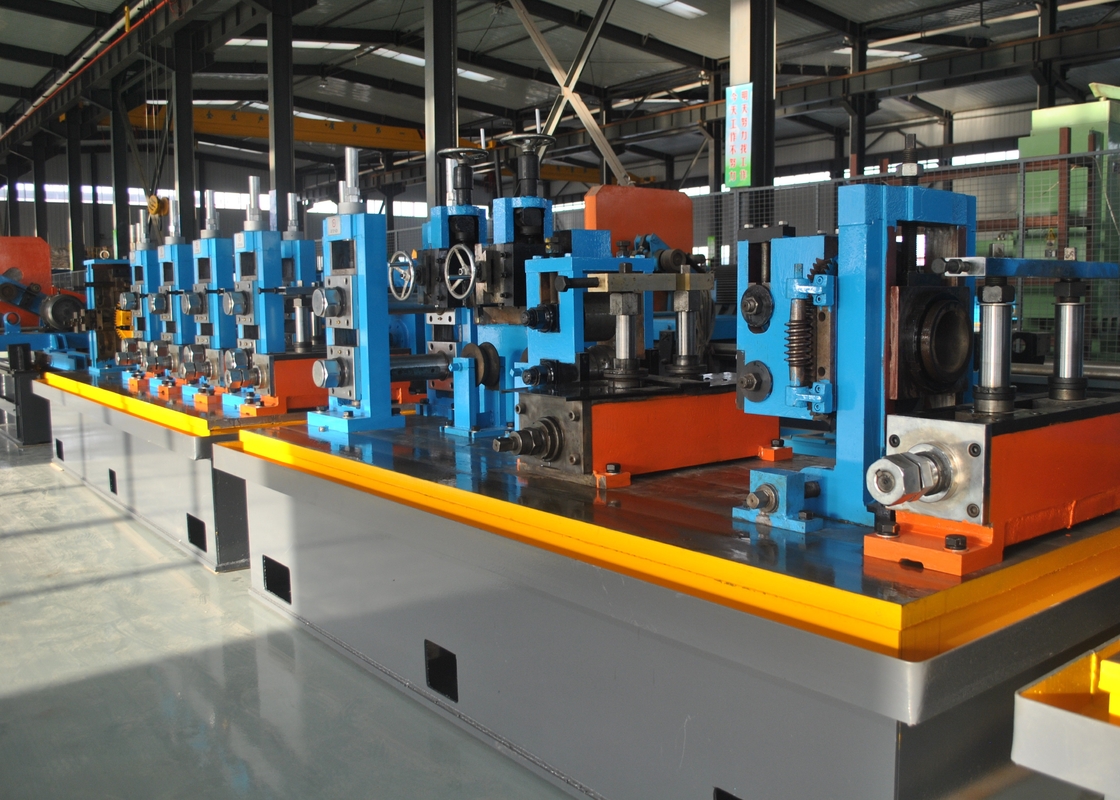

The HG114 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of 50-101 mm in diameter with wall thickness of 1.0-4.0mm, including square, rectangular, and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.

Technical Parameters
Material Specifications:
Material Low carbon steel, galvanized and carbon steel tube
Mechanical Properties σb≤520Mpa, σs≤340MPa
Strip Width 160 - 320 mm
Strip Thickness 1.0 - 4.0 mm
I.D. of Coils 480 - 510 mm
O.D. of Coils 1000 - 1600 mm
Coil Weight ≤ 5T
Welded Pipe Specifications:
Pipe Diameter Φ50 - φ101 mm
Pipe Thickness 1.0 - 4.0 mm
Finished Pipe Length 4 - 6 m
Cut Length Accuracy ±3 mm
Forming Speed 20 - 60 m/min
Workspace Requirements:

100m × 8m, minimum 5m height

Note: Can be modified according to actual workshop length
Equipment Components
  • Hydraulic uncoiler
  • Straight head and pinch leveling machine
  • Shear and welder
  • Horizontal accumulator
  • Forming and Sizing Mill
  • Cold saw
  • Run out table
  • Automatic stacking machine
  • High Frequency Welder

This equipment is arranged in the finishing part of the straight seam steel pipe production line for water pressure testing of straight seam welded steel pipes, meeting ASTM standard requirements for steel pipe hydrostatic tests.

60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm 0 60m/min High Frequency Welded Pipe Mill for Carbon Steel 50-101mm 1
