High Frequency Welded Pipe Mill 200x200x10mm for Square Pipe

Name: High Frequency Welded Pipe Mill 200x200x10mm for Square Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: F200x200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	F200x200

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

F200x200

Machine Name:

High Frequency Welded Pipe Mill 200x200x10mm Automatic Tube Mill Quick Change Roller For Square Pipe

Product:

Square Pipe

Feature:

PLC Control

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Only Square Pipe

Max Size:

200x200mm

Thickness:

10mm

Length:

6-12m

Rollers:

Include

Model:

F200x200

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

200x200x10mm automatic tube mill

quick change roller automatic tube mill

plc high frequency welding tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

High Frequency Welded Pipe Mill 200x200x10mm Automatic Tube Mill

Product Attributes

Attribute	Value
Machine Name	High Frequency Welded Pipe Mill 200x200x10mm Automatic Tube Mill Quick Change Roller For Square Pipe
Product	Square pipe
Feature	PLC control
Material	Carbon steel and galvanized steel
Other pipe	Only square pipe
Max size	200x200mm
Thickness	10mm
Length	6-12m
Rollers	Include
Model	F200x200

Machine Overview

The F200x200 quick change roller square pipe High Frequency Welded Pipe Mill produces square pipes (100x100-200x200mm) and rectangular pipes (100x150-100x300mm) with thickness from 5-10mm. This production line can also produce round pipes by changing stands and rollers. Featuring advanced PLC control technology, this equipment offers convenient operation and maintenance while meeting international standards.

Main Parameters and Specifications

Material Specifications:

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 400-800mm

Strip Thickness: 5-10mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤25T

Pipe Specification:

Pipe Diameter: Square pipe 100x100-200x200mm

Thickness: 5-10mm

Length: 6-12m

Pipe-cutting Precision: 0-6mm

Forming Speed: max 100m/min for 1mm thickness

Buyer Self-Supply Requirements:

Work shop: 95x12m, H＞5m (crane to ground)

Power: Approx.2500KW 380V/60Hz/3phases

Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m3

Compressed Air (whole system): Flow:5m3/min, Pressure: 5-7kg/cm2

Cable: All cable outside of machine to be purchased after machine installation

Working Process

strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → formed, welding, cooling, accurate pipe diameter size → accurate pipe length size, cutting → inspection → package

Key Features

Quick roller adjustment system dramatically reduces changeover time between product specifications
Combined mold system allows production of different tube specifications with minimal roller changes (90% savings)
Servo motor adjustment reduces tool wear and extends equipment lifespan
Composite roll structure changes contact from line to point, reducing wear and extending roll life
Premium components including SIMENS BEIDE motors, NSK bearings, and High complexing gold Cr20 rollers

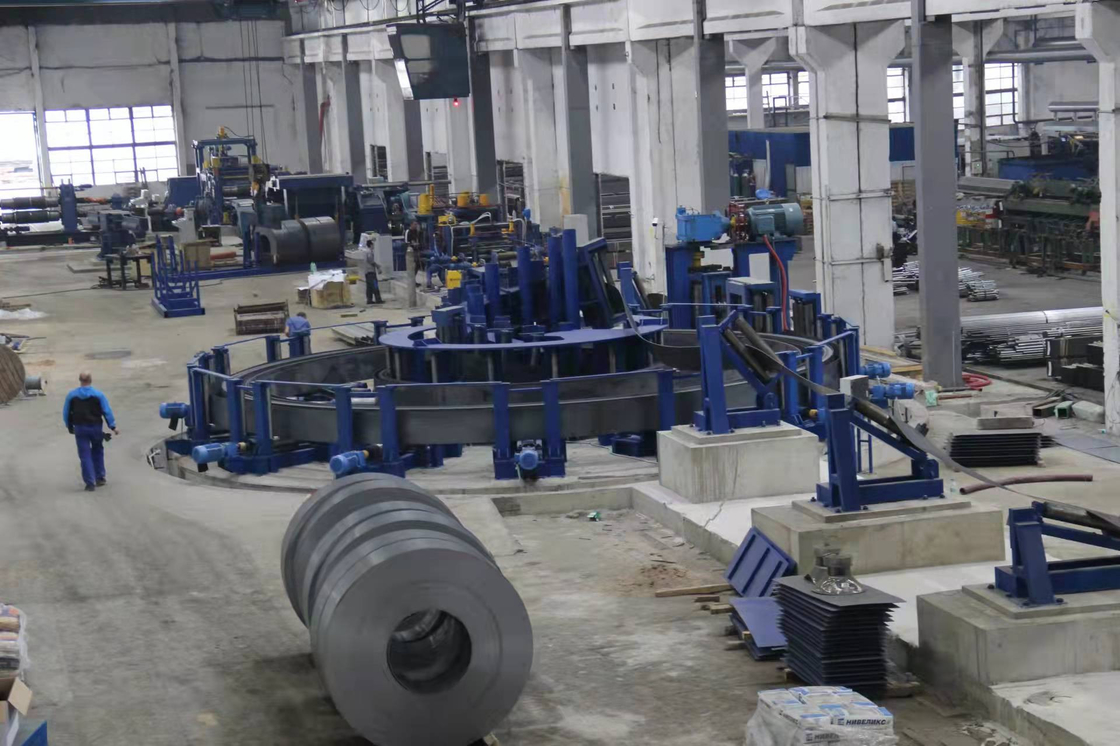

Product Images
