Precision Tube Mill HG76 for 76mm Round Square Pipe

Name: Precision Tube Mill HG76 for 76mm Round Square Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG76

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG76

Machine Name:

Precision Tube Mill High Speed 76mm Round Pipe

Product:

Square Pipe

Feature:

PLC Control

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Only Square Pipe

Max Size:

76mm

Thickness:

3.5mm

Length:

6-12m

Rollers:

Include

Model:

HG76

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

76mm precision tube mill

precision tube mill high speed

precision tube mill production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Precision Tube Mill High Speed 76mm Round Pipe

Attribute	Value
Machine Name	Precision Tube Mill High Speed 76mm Round Pipe
Product	Square pipe
Feature	PLC control
Material	Carbon steel and galvanized steel
Max size	76mm
Thickness	3.5mm
Length	6-12m
Model	HG76

76mm Round Pipe High Speed Precision Tube Mill

This precision tube mill is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. The production line features advanced roll pass design for superior machining quality and high-precision assembly.

Available Pipe Specifications

Round pipe: φ17.1, 21.3, 26.9, 33.7, 42.4, 48.3, 60.3, 76.1mm
Square pipe: 15x15, 20x20, 25x25, 30x30, 40x30, 40x40, 50x50, 60x60mm
Rectangular pipe: 20x10, 30x10, 30x20, 40x20, 50x20, 50x30, 60x40, 80x40mm
Thickness range: 1.35-3.6mm

Main Parameters and Specifications

Material Specifications:

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 60-240mm

Strip Thickness: 1.35-3.6mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤5T

Pipe Specification:

Pipe Diameter: Round pipe 20-76mm, Square pipe 30x30-60x60mm

Thickness: 1.35-3.6mm

Length: 6-12m

Pipe-cutting Precision: 0-6mm

Forming Speed: Maximum 100m/min for 1mm thickness

Buyer-Supplied Requirements:

Workshop: 60x12m, H＞5m (crane to ground)

Power: Approximately 2500KW 380V/60Hz/3phases

Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³

Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²

Cables: All cables outside of machine to be supplied by buyer after machine installation

Working Process

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling → Accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging

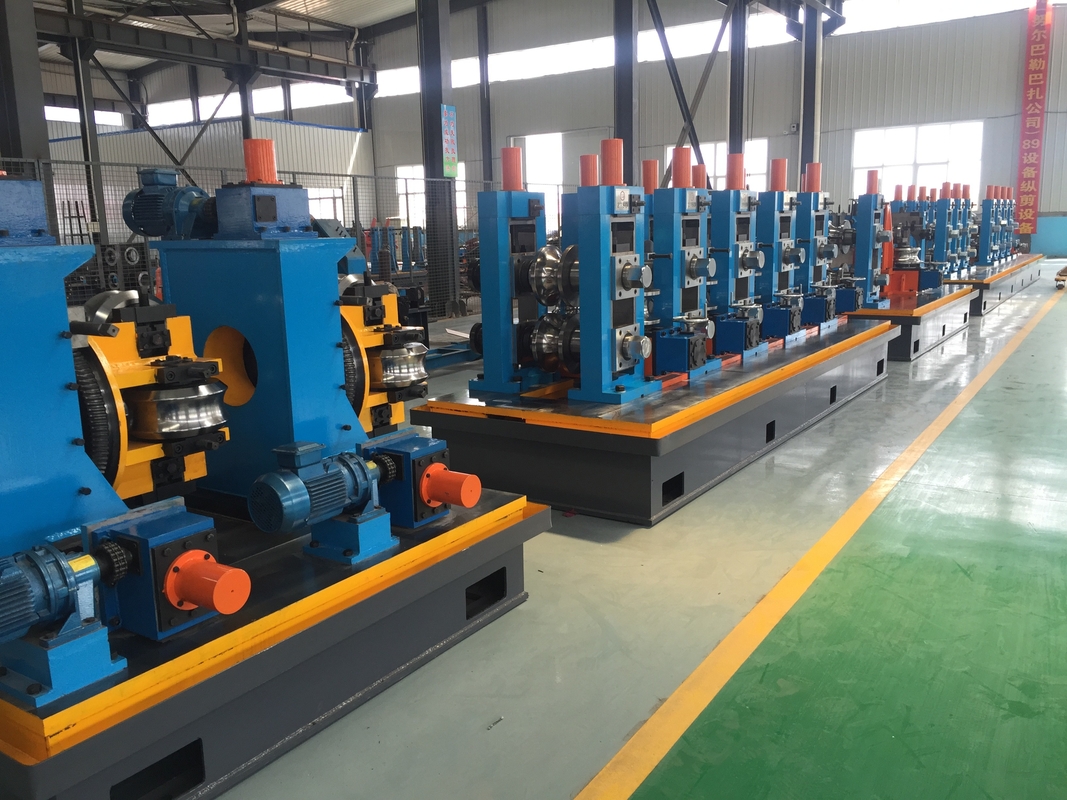

Product Images
