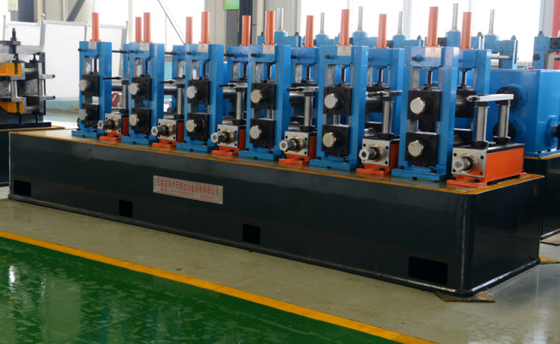

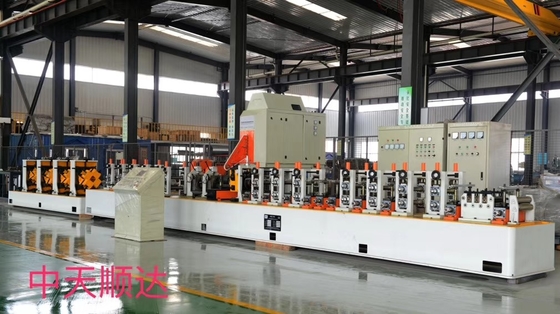

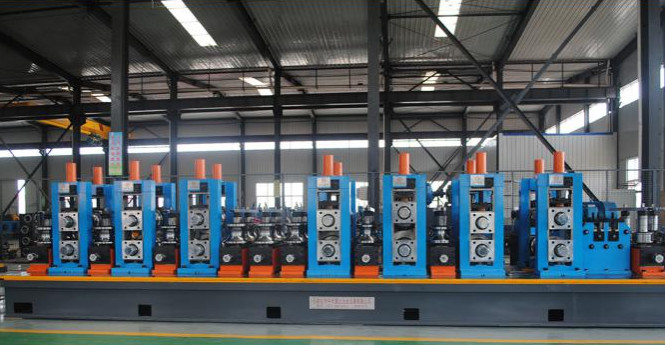

Precision Tube Mill 89mm Pipe Mill Line Round And Square Carbon Steel Precision

Large Image : Precision Tube Mill 89mm Pipe Mill Line Round And Square Carbon Steel Precision

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG89

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	90 wording days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 set/month

Contact Now

Detailed Product Description

Machine Name:	Precision Tube Mill 89mm Pipe Mill Line Round And Square Carbon Steel Precision	Product:	Square Pipe And Round Pipe
Feature:	PLC Control	Material:	Carbon Steel And Galvanized Steel
Other Pipe:	Rectangular Pipe	Max Size:	89mm
Thickness:	3.5mm	Length:	6-12m
Rollers:	Include	Model:	HG89
Key Words:	Precision Tube Mill
Highlight:	89mm pipe mill line , precision pipe mill line , precision square tube mill

89mm Round Pipe And Square Pipe Carbon Steel Precision Tube Mill

Machine General Introduction
it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Round pipe:φ17,1;21,3;26,9;33,7;42,4;48,3;60.3;89mm

Square pipe :15x15;20x20;25x25;30x30;40x30;40x40;50x50;60x60mm

Rec Pipe:20x10;30x10;30x20;40x20;50x20;50x30;60x40;80x40mm

Thickness:1.35-3.6mm

Main Parameters and Specifications

(1)Material Specifications:
Standard	Internatioanl standard tube mill machine
Material	galvanized steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	60-280mm
Strip Thickness:	1.35-3.5mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤5T
(2)Pipe Specification
Pipe Diameter	Round pipe :20-89mm Square pipe:30X30-60X60mm Thickness:1.35-3.6mm
Length	6-12m
Pipe-cutting Precision	0-6mm
Forming Speed	max 100m/min for 1 mm thickness
(3)The buyer should self-supply
Work shop	60x12m, H＞5m(crane to ground)
Power	Approx.2500KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)	Flow:30+30 CBM Pool Volume:40m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

Working Process for tube mill machine

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
