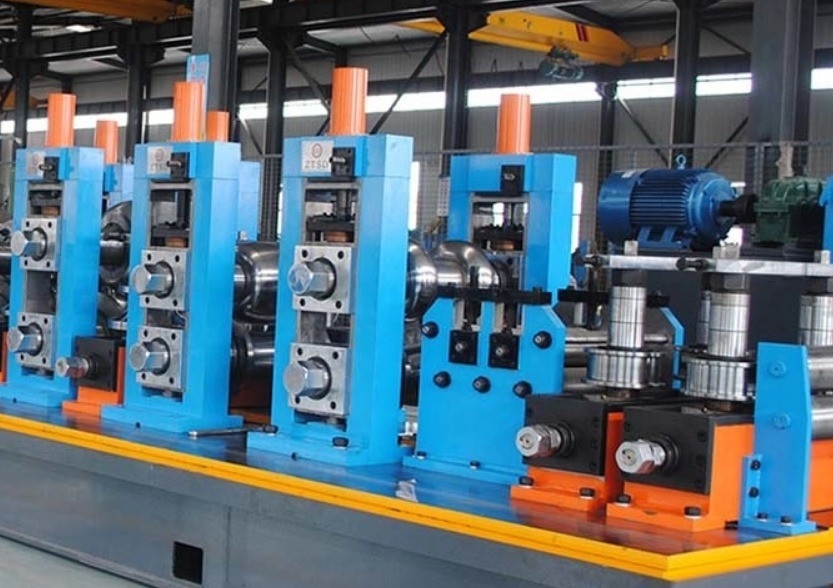

Precision Tube Mill for 76-114mm Blue Welded Pipes

Name: Precision Tube Mill for 76-114mm Blue Welded Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 114

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 114

Product Name:

Precision Tube Mill , Blue Welded Pipe Mill Professional Dia 114 Mm

Feature:

Blue And High Precision

Other Pipe:

Round Pipe And Square Pipe

Max Size:

76 - 114 Mm

Thickness:

1 . 5 - 4 . 0 Mm

Length:

4 - 6 M

Rollers:

Include

Warranty:

One Year

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

dia 114 mm precision tube mill

blue precision tube mill

precision tube mill machines

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Precision Tube Mill, Blue Welded Pipe Mill Professional Dia 114 Mm

Product Features

High precision blue welded pipe mill
Produces both round and square pipes
Includes rollers
1-year warranty

Attribute	Value
Max Size	76 - 114 mm
Thickness	1.5 - 4.0 mm
Length	4 - 6 m

Machine Overview

The HG 114 high frequency welded pipe mill line manufactures welded steel pipes, incorporating advanced pipe making technology from both domestic and international sources. Our innovative design offers an economical yet practical solution for pipe production.

Technical Specifications

Material Specifications

Material	Low carbon steel, galvanized and carbon steel tube
Mechanical Properties	σb≤520Mpa, σs≤340MPa
Strip Width	230 - 360 mm
Strip Thickness	1.5 - 4.0 mm
I.D of Coils	520 - 580 mm
O.D of Coils	1000 - 1600 mm
Coil Weight	≤ 7T

Welded Pipe Specifications

Pipe Diameter	Φ76～φ114 mm
Pipe Thickness	1.5 - 4.0 mm
Finish Pipe Length	4 - 6 m
Cut Length Accuracy	±3 mm
Forming Speed	40 - 50 m/min

Power, Water & Air Requirements

Power Volume	Approx. 800KW
Power Source	415V/50Hz/3phases
Cooling Water Flow	30T/h～40 T/h
Pool Volume	60m³
Compressed Air Flow	5m³/min
Pressure	5～7kg/cm²

Workspace Requirements

Minimum workshop dimensions: 100m × 6m, with at least 5m ceiling height.

Note: Can be modified according to actual workshop length.

Quality Assurance & Service

Our technical personnel will provide on-site debugging, maintenance, and operation training. Equipment comes with a 12-month warranty from arrival date. Under normal operation, we provide free repair or replacement for any quality-related issues.
