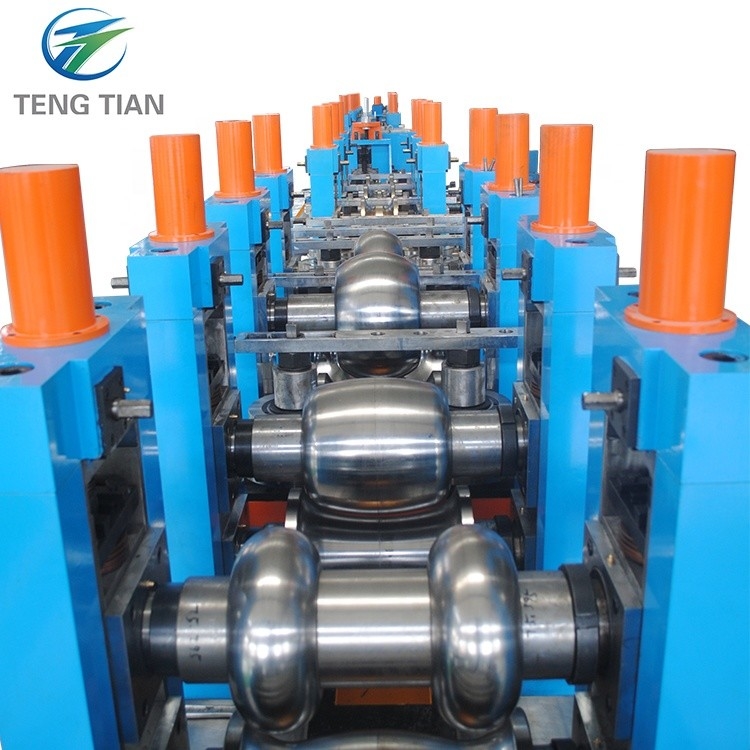

60mm Precision Tube Mill for Carbon Steel Furniture Pipes

Name: 60mm Precision Tube Mill for Carbon Steel Furniture Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG60

Machine Name:

Precision Tube Mill 60mm Welded Pipe Mill Carbon Steel For Furniture Pipe

Product:

Square Pipe And Round Pipe

Feature:

PLC Control

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

60mm

Thickness:

3.5mm

Length:

6-12m

Rollers:

Include

Model:

HG60

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

60mm welded pipe mill

furniture welded pipe mill

precision welded pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Precision Tube Mill 60mm Welded Pipe Mill Carbon Steel For Furniture Pipe

Attribute	Value
Machine Name	Precision Tube Mill 60mm Welded Pipe Mill Carbon Steel For Furniture Pipe
Product	Square pipe and round pipe
Feature	PLC control
Material	Carbon steel and galvanized steel
Other pipe	Rectangular pipe
Max size	60mm
Thickness	3.5mm
Length	6-12m
Rollers	Included
Model	HG60

60mm Carbon Steel Pipe Precision Tube Mill for Furniture Pipe

This machine is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring advanced roll pass design, the production line manufactures welded steel pipes with excellent machining quality and high precision assembly.

Available Pipe Sizes

Round pipe: φ17.1, φ21.3, φ26.9, φ33.7, φ42.4, φ48.3, φ60.3mm
Square pipe: 15×15, 20×20, 25×25, 30×30, 40×30, 40×40, 50×50mm
Rectangular pipe: 20×10, 30×10, 30×20, 40×20, 50×20, 50×30, 60×40mm
Thickness: 1.35-3.5mm

Main Parameters and Specifications

Material Specifications

Standard	International standard tube mill machine
Material	Galvanized steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	60-190mm
Strip Thickness	1.35-3.5mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤5T

Pipe Specification

Pipe Diameter	Round pipe: 20-60mm Square pipe: 30×30-50×50mm
Thickness	1.35-3.6mm
Length	6-12m
Pipe-cutting Precision	0-6mm
Forming Speed	Max 100m/min for 1mm thickness

Buyer-Supplied Requirements

Workshop: 60×12m, H＞5m (crane to ground)
Power: Approx. 2500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow: 30+30 CBM, Pool Volume: 40m³
Compressed Air (whole system): Flow: 5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be supplied by buyer after machine installation

Working Process for Tube Mill Machine
