HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes

Name: HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 32
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 32

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 32

Production Name:

Precision Tube Mill Round Steel Welded 32 Mm Production Line

Model:

HG 32

Feature:

High Precision

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

15 - 25 Mm

Thickness:

1 . 0 - 1 . 5 Mm

Cutting Length:

3 - 6 M

Warranty:

One Year

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

32 mm precision tube mill

rectangular pipe precision tube mill

precision high frequency tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Precision Tube Mill Round Steel Welded 32 Mm Production Line

Product Specifications

Attribute	Value
Model	HG 32
Feature	High precision
Other pipe types	Square pipe and Rectangular pipe
Max size	15 - 25 mm
Thickness	1.0 - 1.5 mm
Cutting length	3 - 6 m
Warranty	One year

Product Description

Round Steel Welded 32 Mm Tube Production Line High Precision Tube Mill

Equipment Introduction

HG32 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф15～25mm in diameter and 1.0～1.5mm in wall thickness, as well as other deformed pipes of corresponding sizes. The production line adopts roll pass design to manufacture welded steel pipes with excellent quality machining and high precision assembly.

Main Parameters and Specifications

Parameter	Specification
Pipe material	Low carbon steel and low alloy constructional steel
OD of coil	1500 mm
ID of coil	508 mm
Width of strip	47～80 mm
Thickness of strip	1.0～1.5 mm
Weight of strip	≤ 1.2 T
Welding thickness	1.0 - 1.5 mm
Cutting length	3 - 6 m
Pipe-cutting Precision	0～3 mm
Forming speed	44 m/min

Workshop requirements: 6m wide, 50m long, at least 5m high

Note: You can modify it according to the actual length of the workshop

Equipment Composition

Decoiler
Straight head and pinch leveling machine
Shear and welder
Spiral accumulator

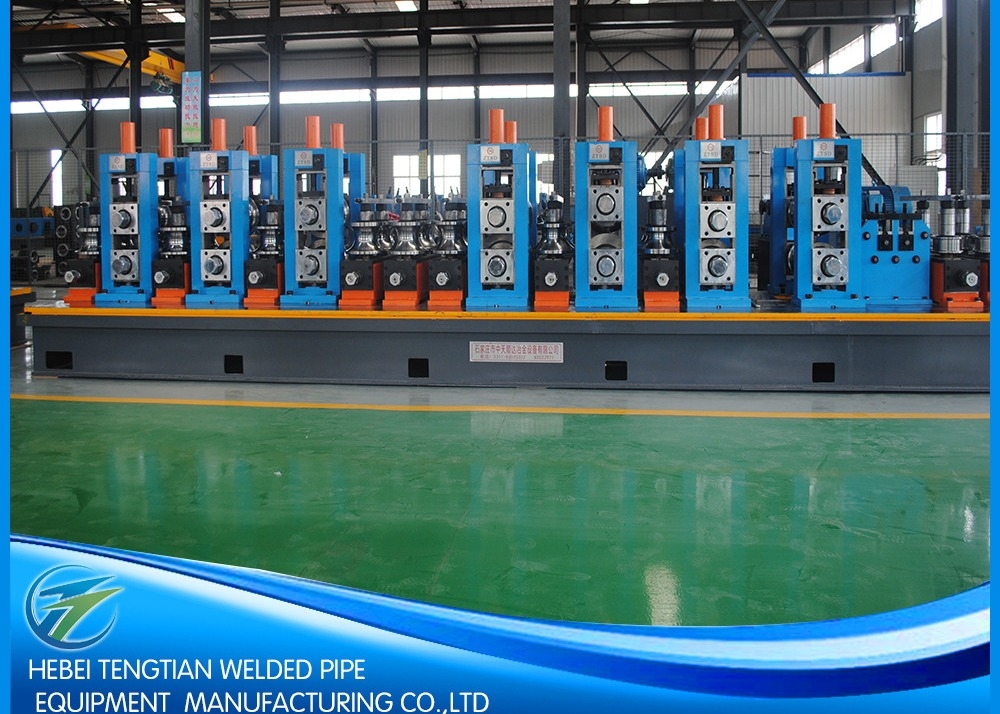

Forming and Sizing Mill
Cold Saw
Run out table
400KW High Frequency solid-state Welder
