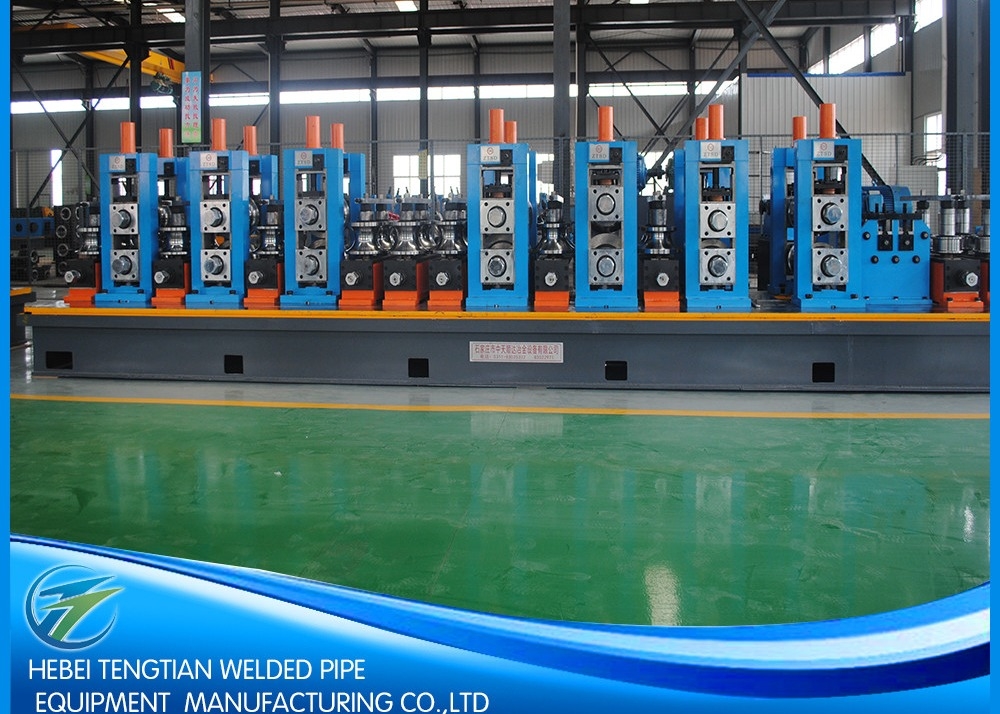

Precision Tube Mill Round Steel Welded 32 Mm Production Line

Large Image : Precision Tube Mill Round Steel Welded 32 Mm Production Line

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 32

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	100 wording days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5 set/year

Contact Now

Detailed Product Description

Production Name:	Precision Tube Mill Round Steel Welded 32 Mm Production Line	Model:	HG 32
Feature:	High Precision	Other Pipe:	Square Pipe And Rectangular Pipe
Max Size:	15 - 25 Mm	Thickness:	1 . 0 - 1 . 5 Mm
Cutting Length:	3 - 6 M	Warranty:	One Year
Key Words:	Precision Tube Mill
Highlight:	32 mm precision tube mill , rectangular pipe precision tube mill , precision high frequency tube mill

Round Steel Welded 32 Mm Tube Production Line High Precision Tube Mill

I.Equipment Introduction

HG32 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф15～25mm in diameter and 1.0～1.5mm in wall thickness other deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

II.Main Parameters and Specifications:

Pipe material	Low carbon steel and low alloy constructional steel
OD of coil	1500 mm
ID of coil	508 mm
Width of strip	47 ～ 80 mm
Thickness of strip	1 . 0 ～ 1 . 5 mm
Weight of strip	≤ 1.2 T
Welding thickness	1 . 0 - 1 . 5 mm
Cutting length	3 - 6 m
Pipe-cutting Precision	0～3 mm
Forming speed	44 m / min

Workshop: 6m wide, 50m long, at least 5m high

Notice:You can modify it according to the actual length of the workshop

III.Equipment composition

Decoiler
Straight head and pinch leveling machine
Shear and welder
spiral accumulator

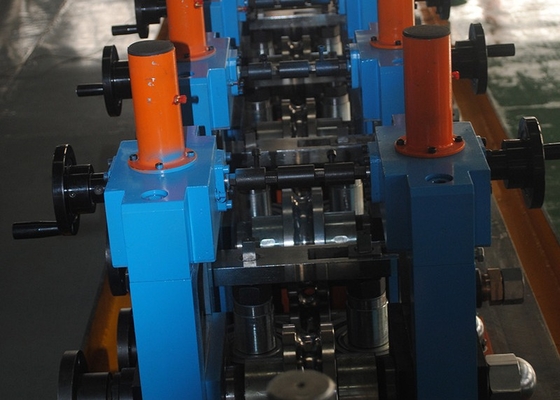

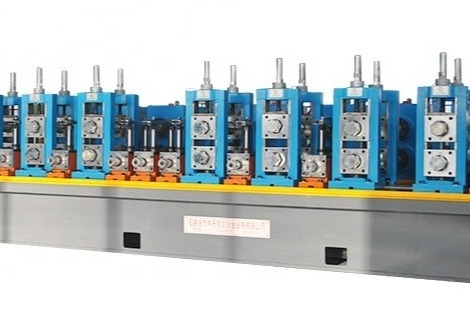

Forming and Sizing Mill
Cold Saw
Run out table
400KW High Frequency solid-state Welder
