Home > products >
High Frequency Welded Pipe Mill
>

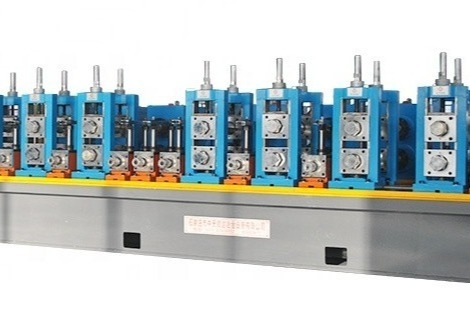

HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic
HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic
  • HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic
  • HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic
  • HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic

HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: HG 60
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE, ISO9001, BV
Model Number:
HG 60
Product Name:
HG 60 High Frequency Welded Pipe Mill Full Line Roll Pass Design Automatic
Coil Weight:
≤1.5T
Coil Thickness:
1-3 Mm
Coil Width:
45- 120 Mm
Inner Diameter:
80 To 520 Mm
Outer Diameter:
1000 To 1600 Mm
Speed:
Max 90m/min
Warranty:
One Year
Material:
Low Carbon HRC
Key Word:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

60mm high frequency welded pipe mill

,

automatic high frequency welded pipe mill

,

60mm high frequency welding tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
HG 60 High Frequency Welded Pipe Mill Full Line Roll Pass Design Automatic
Product Specifications
Attribute Value
Product Name HG 60 High Frequency Welded Pipe Mill Full Line Roll Pass Design automatic
Coil Weight ≤1.5T
Coil Thickness 1-3 mm
Coil Width 45-120 mm
Inner Diameter 80 to 520 mm
Outer Diameter 1000 to 1600 mm
Speed Max 90m/min
Warranty One year
Material Low carbon HRC
Product Description

The HG 60 High-Frequency Welded Pipe Production Line is engineered to manufacture precision welded pipes with diameters ranging from Ф10-Ф38mm and wall thicknesses of 1.0-2.3mm, as well as square pipes from 8x8-50x50mm with thicknesses of 1.0-3.0mm. Featuring advanced roll pass design technology, this production line delivers superior quality welded steel pipes with exceptional machining quality and high-precision assembly.

Main Parameters and Specifications
Specification Value
Material Standards Conforming to YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Strip Width 45 to 120mm
Strip Thickness 1.0 to 3.0mm
Inner Diameter of Coils 480 to 520mm
Outer Diameter of Coils 1000 to 1800mm
Coil Weight ≤1.5T
Welded Pipe Specification Round Pipe: φ15-φ38mm (1.0-2.3mm)
Square Pipe: 15x15 to 30x30mm (1.0-2.0mm)
Fixed Cutting Length 4 to 6 m
Pipe-cutting Precision 0 to 3mm
Forming Speed 20 to 130 m/min
Process Flow
Coil Loading Uncoiling Cutting and Welding Horizontal Spiral Accumulator Forming HF Welding Deburring Cooling Sizing Straightening Cold-cutting Saw Transmitting Packing Storage
Quality Assurance and After-Sales Service

Our technical service personnel will be on-site for equipment installation, debugging, and maintenance. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that affect equipment performance.

HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic 0
HG 60 High Frequency Welded Pipe Mill 15-38mm Diameter Automatic 1
