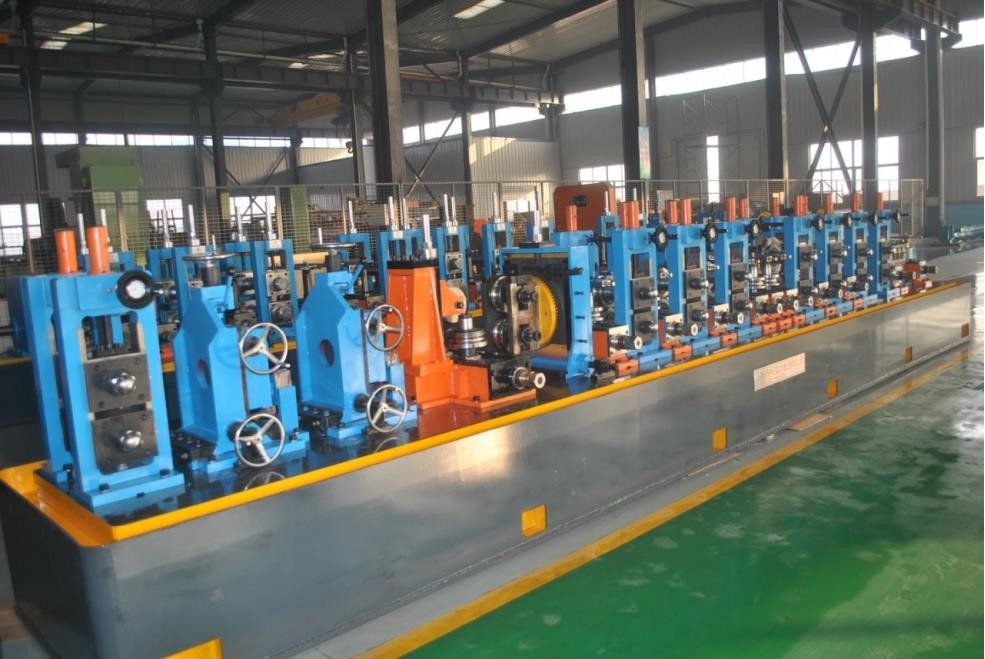

High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min
High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min
  • High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min
  • High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min
  • High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min

High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: HG 76.2
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE, ISO9001, BV
Model Number:
HG 76.2
Product Name:
High Frequency Welded Pipe Mill 1mm Straight Seam Welded Steel Pipe Mill Automatic Pack And Bundle Up
Coil Weight:
≤1.5T
Coil Thickness:
1-3 Mm
Coil Width:
45- 120 Mm
Inner Diameter:
80 To 520 Mm
Outer Diameter:
1000 To 1600 Mm
Speed:
Max 90m/min
Warranty:
One Year
Material:
Low Carbon HRC
Key Words:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

straight seam welded steel pipe mill

,

1mm steel pipe mill

,

1mm high frequency welding tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welded Pipe Mill 1mm Straight Seam Welded Steel Pipe Mill with Automatic Pack and Bundle Up
Product Specifications
Attribute Value
Coil Weight ≤1.5T
Coil Thickness 1-3 mm
Coil Width 45-120 mm
Inner Diameter 80 to 520 mm
Outer Diameter 1000 to 1600 mm
Speed Max 90m/min
Warranty One year
Material Low carbon HRC
Product Description
The HG 76.2 High-Frequency Welded Pipe Production Line is engineered to manufacture precision welded pipes with diameters ranging from Ф19-Ф76.2mm and wall thicknesses of 2.0-4.0mm, including square pipes from 15x15-60x60mm. Featuring advanced roll pass design, this production line delivers superior quality welded steel pipes with exceptional machining quality and high assembly precision.
Key Features
  • Double-radius hole style design for enhanced efficiency and reduced roller costs
  • Optimized for improved operational characteristics and safety
  • High precision manufacturing capabilities
  • Robust construction for industrial applications
Technical Specifications
Material Specifications Conforming to YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Strip Width 60 to 240mm
Strip Thickness 2 to 4mm
Coil Inner Diameter 480 to 520mm
Coil Outer Diameter 1000 to 1800mm
Coil Weight ≤3T
Pipe Cutting Precision 0 to 3mm
Forming Speed 20 to 130 m/min
Production Process Flow
  1. Coil Loading
  2. Uncoiling
  3. Cutting and Welding
  4. Horizontal Spiral Accumulator
  5. Forming
  6. HF Welding
  7. Deburring
  8. Cooling
  9. Sizing
  10. Straightening
  11. Cold-cutting Saw
  12. Transmitting
  13. Packing
  14. Storage
Equipment Principle
The high frequency straight seam welded pipe production line processes steel belts through a series of rollers to form tube billets. Utilizing high frequency proximity and skin effects, the system instantaneously heats strip edges to welding temperature, completing the weld under pressure from squeezing rollers. Subsequent water cooling, sizing, and straightening produce precision steel pipes. This innovative design combines domestic and international equipment advantages with practical operation and maintenance features.
High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min 0 High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min 1 High Frequency Welded Pipe Mill 1-3mm Steel Coil 90m/min 2
