High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes
High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes
  • High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes
  • High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes
  • High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes

High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: HG 217
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE, ISO9001, BV
Model Number:
HG 217
Product Name:
High Frequency Welded Pipe Mill Low Carbon Hrc 2mm High Frequency Welded Pipe Mill BV
Coil Weight:
≤5T
Coil Thickness:
12 Mm
Coil Width:
357- 687 Mm
Inner Diameter:
520 - 620 Mm
Outer Diameter:
1000 To 2100 Mm
Speed:
Max 50 M/min
Warranty:
One Year
Material:
Low Carbon HRC
Key Word:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

bv high frequency welded pipe mill

,

2mm high frequency welded pipe mill

,

cs high frequency welding tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welded Pipe Mill Low Carbon HRC 2mm High Frequency Welded Pipe Mill BV
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill Low Carbon HRC 2mm High Frequency Welded Pipe Mill BV
Coil Weight ≤5T
Coil Thickness 12 mm
Coil Width 357-687 mm
Inner Diameter 520-620 mm
Outer Diameter 1000-2100 mm
Speed max 50 m/min
Warranty One year
Material Low carbon HRC
Product Description

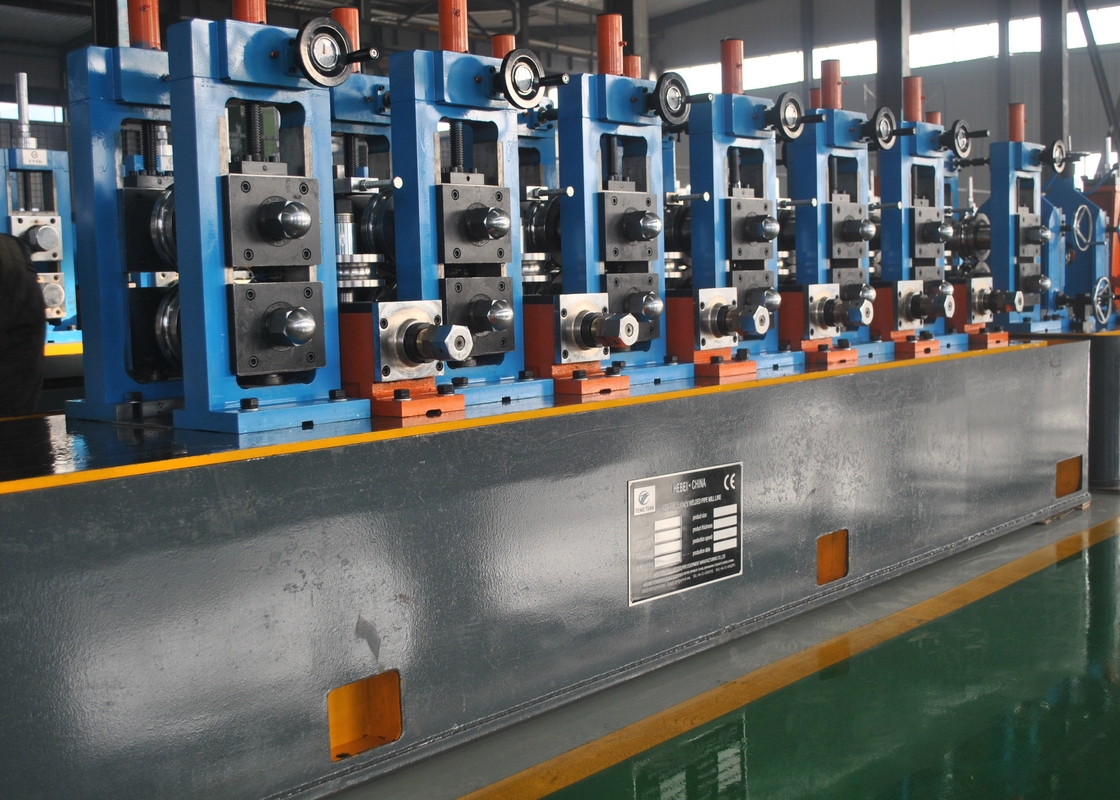

The HG219 high-precision high-frequency welded pipe production line produces electric welded steel pipes with diameters of Φ89-Φ219mm and wall thicknesses of 2.0-6.0mm, including square and rectangular pipes of corresponding sizes. Incorporating advanced international technology adapted for domestic conditions, this equipment features innovative design, superior technology, and user-friendly operation, achieving international standards while leading the domestic market.

Main Parameters and Specifications
Specification Value
Material Standards Conforming to YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Strip Width 357-687 mm
Strip Thickness 2-6 mm
Coil Inner Diameter 520-620mm
Coil Outer Diameter 1600-2100mm
Coil Weight ≤5T
Fixed Cutting Length 6-12 m
Pipe-cutting Precision 0-3mm
Forming Speed 20-50 m/min
Applications
  • Heating Pipes
  • Low-pressure Process Pipelines
  • Low Pressure Fire Fighting Pipelines
  • Oil & Gas Pipes
  • Sewage Pipes
  • Steel Scaffolding Pipes
  • Wire and Cable Protection Pipes
  • Structural Support Steel Pipes
  • Industrial Steel Pipes
  • Decoration Pipes
  • Water Pipes
  • Building Pipes
Quality Assurance & After-Sales Service

Our technical personnel will provide on-site debugging, maintenance, and operational training upon equipment arrival. The warranty covers 12 months from the date of equipment arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that prevent proper equipment function.

High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes 0
High Frequency Welded Pipe Mill for Low Carbon HRC 2-6mm Pipes 1
