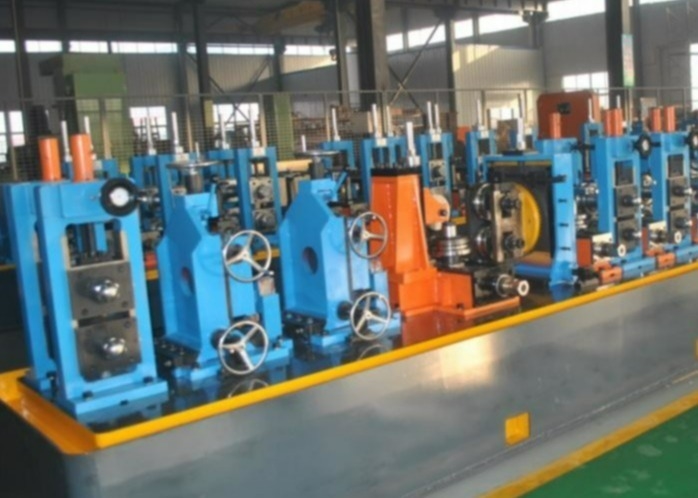

Precision Tube Mill for Round Square Rectangle Pipes 33-60mm

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	89

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

Product Name:

Precision Tube Mill High Speed Round Shape Manufacturing

Forming Method:

FFX Forming Technology

Running Speed:

Max. 60 M / Min

Pipe Shape:

Round Square And Rectangle

Pipe Diameter:

33 - 60 Mm

Max.Thickness For Round Pipe:

1 . 5 - 4 . 0 Mm

Welding Type:

High Frequency Welding

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

89 mm precision tube mill

round shape precision tube mill

precision high speed tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

4 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill High Speed Round Shape Manufacturing

Attribute	Value
Product Name	Precision Tube Mill High Speed Round Shape Manufacturing
Forming Method	FFX Forming Technology
Running speed	Max. 60 m / min
Pipe shape	Round Square and Rectangle
Pipe Diameter	33 - 60 mm
Max.Thickness for Round Pipe	1.5 - 4.0 mm
Welding Type	High Frequency Welding

89 Mm High Speed Precision Round Shape Tube Manufacturing Mill

HG89 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of round pipe 33.78-60.3 mm in diameter and 1.5-4.0 mm in thickness, as well as same size square pipes. Featuring roll pass design, this production line manufactures welded steel pipes with excellent machining quality and high precision assembly.

Specifications:

Raw Material

Material	Low carbon steel and low alloy constructional steel
Material properties	σb≤520Mpa, σs≤340MPa
ID of the steel strips	Φ 510 mm
OD of the steel strips	Φ 1600 mm
Coiler weight	Max.4 T

Production Range

Round Pipe

φ 33 - 60 mm | Thickness: 1.5 - 4.0 mm

Additional Specifications

H.F. Welder: 300kw Hi-frequency welder
Line Speed: Max.160 m/min
Tube Length: 4-6m
Cutting Accuracy: ±1.5 mm

Line Composition

Uncoiler
Shear and welder
Spiral Accumulator
Forming and Sizing Mill
Cold saw
Run out table
300KW High Frequency Welder
