Precision Tube Mill High Speed Round Shape Manufacturing

89 Mm High Speed Precision Round Shape Tube Manufacturing Mill Precision Tube Mill​

HG89 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of round pipe33.78～60.3 mm and 1.5-4.0 mm in thickness , and same size of square pipe. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

According to the designing guideline of improving the operating character & environment and the safety & producing character, reducing the cost of the roller to guarantee high efficiency, HG89 production line adopts the double-radius hole style of design.

Specifications:

1. Raw Material

2. Production Range:

3. H.F. Welder:300kw Hi-frequency welder

4. Line Spees: Max.160 m / min

5. Tube Length: 4 - 6m

6. Cutting Accuracy: ±1 . 5 mm

Line composition :

·Uncoiler
·Shear and welder
·Spiral Accumulator

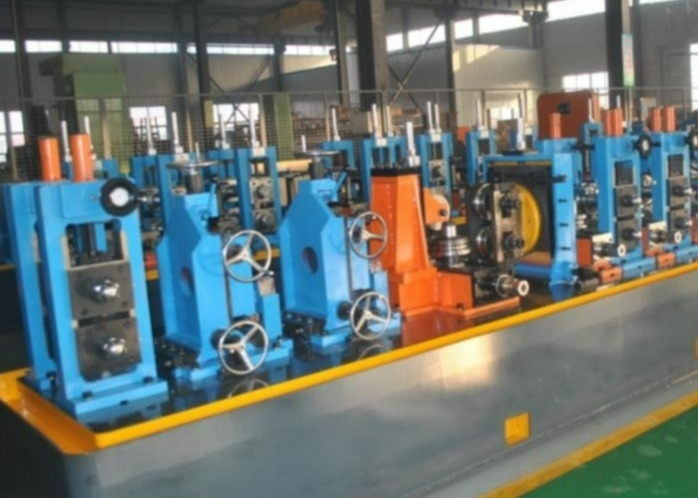

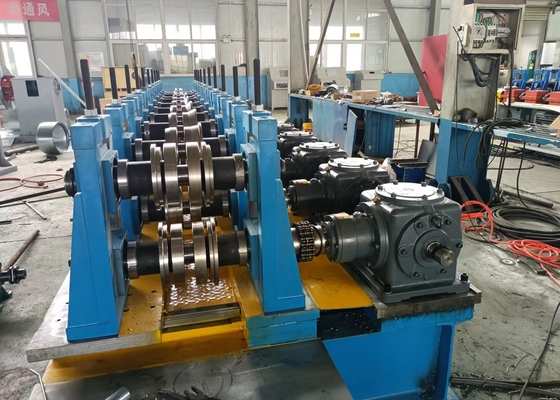

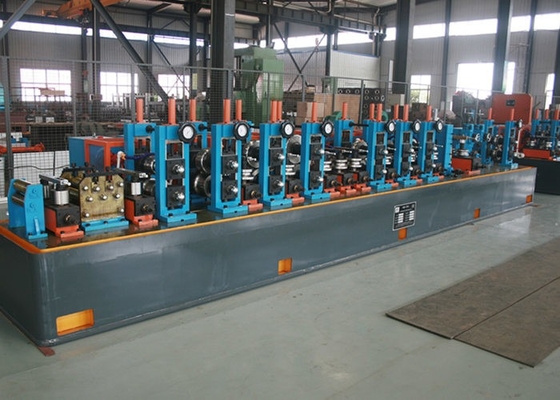

·Forming and Sizing Mill
·Cold saw
·Run out table
·300KW High Frequency Welder
