Precision Tube Mill for 16-60mm ERW Steel Pipes

Name: Precision Tube Mill for 16-60mm ERW Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill Welded Erw Tube Making Machine Dia 16-60 Mm

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

16 -60 Mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Precision Tube Mill:

3 Mm

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

dia 16mm precision tube mill

welded precision tube mill

precision carbon steel tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets

Product Description

Precision Tube Mill Welded ERW Tube Making Machine (Diameter 16-60mm)

Key Specifications

Material: HRC, CRC, Galvanized Steel
Pipe Diameter: 16-60 mm
Welding Type: High Frequency Welding
Pipe Shapes: Round, Square, Rectangular
Adjustment Type: By turbine worm
Precision: 3 mm

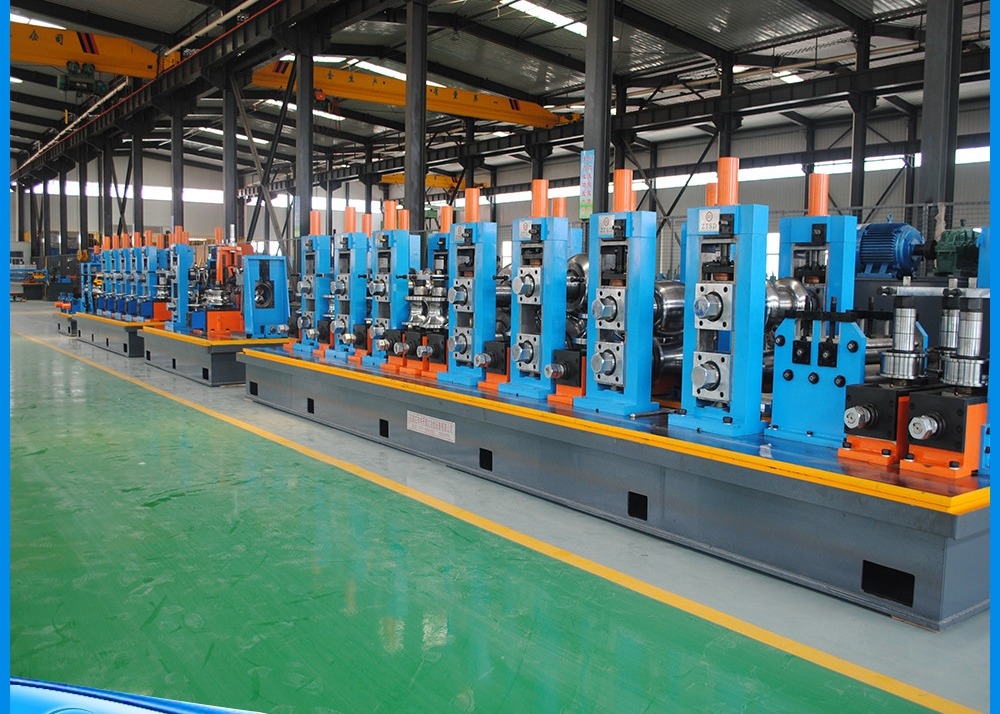

The HG60 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from both domestic and international sources, our innovative production line offers an economical yet practical solution for pipe manufacturing.

Main Parameters and Specifications

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤380Mpa, σs≤275MPa
Strip Width	50～190mm
Strip Thickness	0.7～2.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3T

Welded Pipe Specifications

Round Pipe Diameter	Φ16～φ60mm
Pipe Thickness	0.7-2.0mm
Finish Pipe Length	4-6m
Cut Length Accuracy	±2mm
Forming Speed	40-120m/min

Workshop Requirements

6m wide, 70m long, with minimum 5m clearance from ceiling rails to ground.

ERW Tube Mill Other Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
